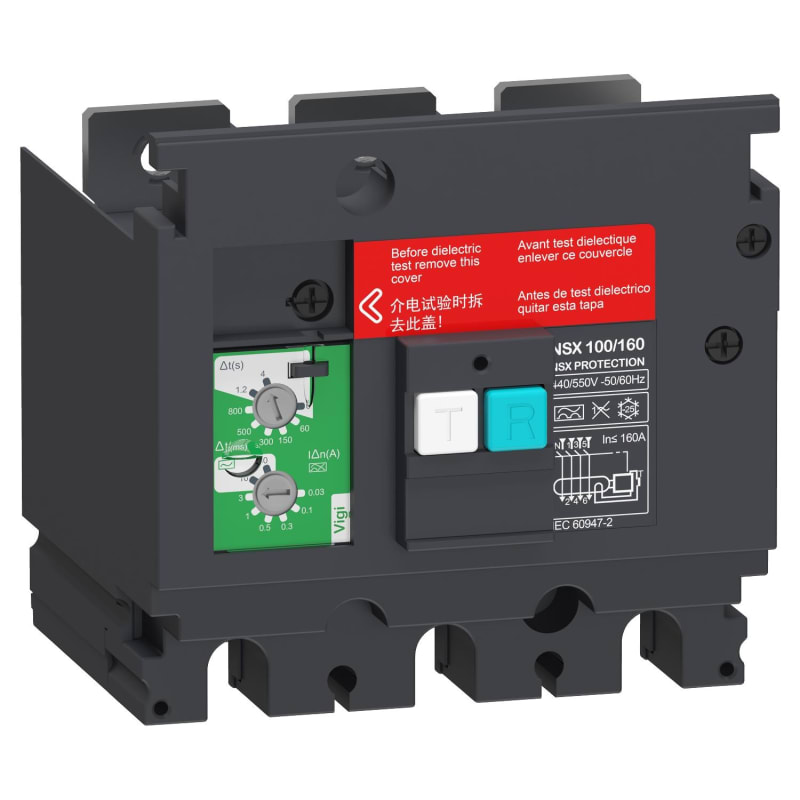

Schneider Electric Earth-leakage VigiPacT add-on protection module, ComPacT NSX 100/160, 440VAC to 550VAC, 30MA to 30A, 3 poles LV429490

Schneider Electric LV429490 Vigimodul 3p for NSX100/160 30mA for 30A 440VAC for 550VAC.

Manufacturer part number (MPN)

LV429490

EAN / GTIN

3606481298560

Sales unit

pcs

Package quantity

12 pcs

Number of poles

3P

Voltage

550 V

Range of product

ComPacT NSX100...250; ComPact NSX100...250

Device short name

VigiPacT

Product or component type

Vigi add-on

Device application

Wiring

Range compatibility

ComPacT ComPacT NSX100 circuit breaker; ComPacT ComPacT NSX160 circuit breaker; ComPact ComPact NSX100 circuit breaker; ComPact ComPact NSX160 circuit breaker

Poles description

3P

[In] rated current

100 A; 160 A

Earth-leakage protection class

Class A; Class AC

Residual earth-leakage sensitity adjustment type

Adjustable

Earth-leakage sensitivity

0.03 A for class A; 0.1 A for class A; 0.3 A for class A; 0.5 A for class A; 1 A for class A; 3 A for class A; 10 A for class AC; 30 A for class AC

Residual earth-leakage time delay adjustment type

Adjustable

[Δt] residual earth-leakage time delay adjustment

0 ms; 60 ms; 150 ms; 300 ms; 500 ms; 800 ms; 1.2 s; 4 s

Network type

AC

Network frequency

50/60 Hz

[Ue] rated operational voltage

440...550 V AC 50/60 Hz conforming to IEC 60947-2

Earth-leakage protection

With

Maximum breaking time

800 ms

Overvoltage category

IV

Electrical shock protection class

Class II

Standards

IEC 60947-2

Country of origin

IT

Warranty (in months)

18

Delay adjustable

Yes

Rated fault current

0.03–30 A

Rated control supply voltage AC 50 Hz

440–550 V

Rated control supply voltage AC 60 Hz

440–550 V

Max. rated operation voltage Ue

550 V

Max. power on-delay time

4000 ms

HS Code

8536.30
