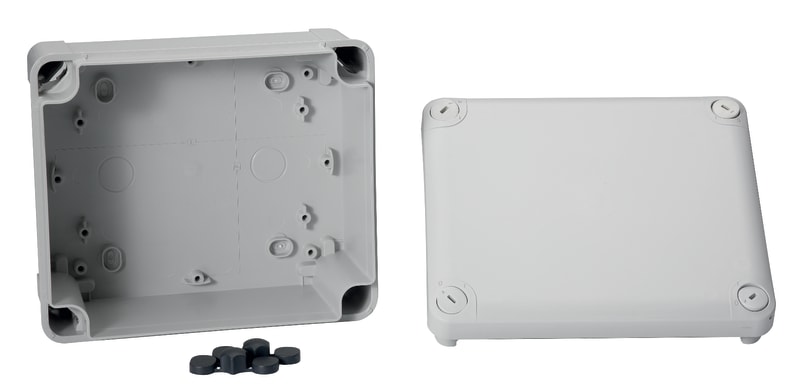

Schneider Electric Mureva BOX - junction box - w/o grommet - 175X150X80MM - without terminal ENN05050
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ENN05050 Mureva BOX - junction box - w/o grommet - 175x150x80mm - without terminal.
Technical Specifications
- Manufacturer part number (MPN)
- ENN05050
- EAN / GTIN
- 3295150050501
- Sales unit
- pcs
- Package quantity
- 28 pcs
- Dimensions
- 175×150×80
- range of product
- Mureva
- Product or component type
- Junction box
- Colour tint
- Grey (RAL 7035)
- Device mounting
- Surface
- Fixing mode
- By screws: cover
- Base dimension
- 175 x 150 x 80 mm
- Material
- ABS (acrylonitrile butadiene-styrene): body; PP (polypropylene): cover
- Height
- 164 mm
- Width
- 193 mm
- Depth
- 88 mm
- Ambient air temperature for operation
- -25…60 °C
- IP degree of protection
- IP55
- IK degree of protection
- IK07
- Glow wire temp
- 750 °C
- Standards
- EN 60670; CE
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 28
- Number of Units in Package 3
- 336
- Warranty (in months)
- 18
- Model
- Junction box
- RAL-number (similar)
- 7035
- Shape
- Rectangular
- Mounting method
- Wall-/ceiling mounting
- Mounting in the soil
- No
- Mounting under water
- No
- Inlet from the rear
- No
- Length
- 164 mm
- Connectable
- No
- Type of housing feed-through
- None
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP55
- Cover model
- Blind cover
- Transparent cover
- No
- Cover attachment
- Screwed
- Castable
- No
- Casting compound included
- No
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Weatherproof
- Yes
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3295150050501
- SAP 1200058158
- Code 81900133
Product Documentation
