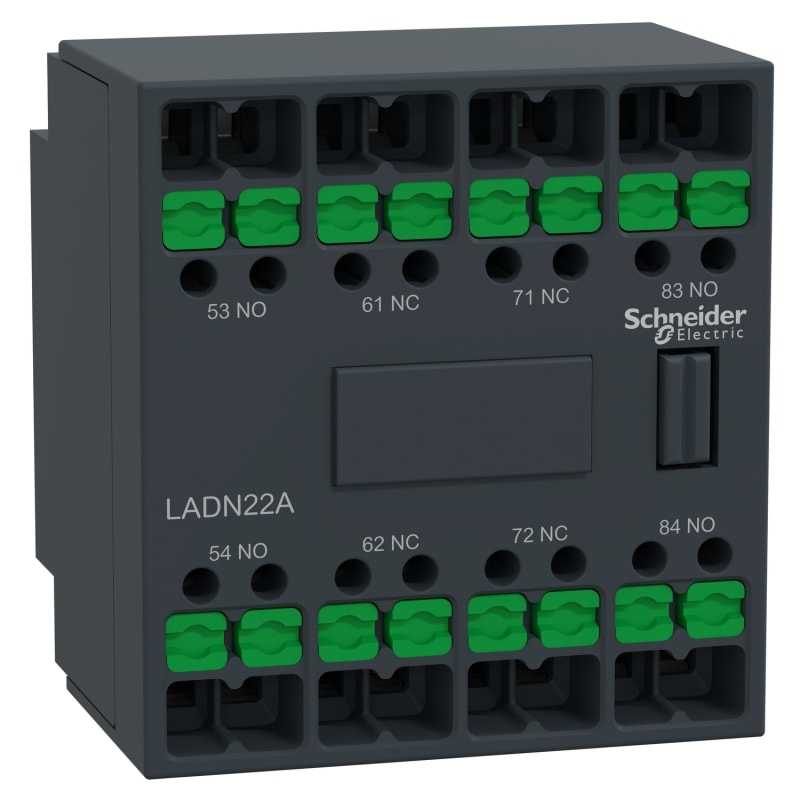

Schneider Electric Auxiliary contact block, TeSys Deca, 2NO+2NC, front mounting, snap-in terminals LADN22A

Schneider Electric LADN22A Auxiliary Contact Block, TeSys Deca, 2NO+2NC, front mounting, Snap-In-terminals.

Manufacturer part number (MPN)

LADN22A EAN / GTIN: 3606487541752 Sales unit: pcs Package quantity: 105 pcs Contact configuration: 2 NO + 2 NC Range: TeSys; TeSys Deca Product name: TeSys Deca Product or component type: Auxiliary contact block Device short name: LADN Range compatibility: TeSys D CAD; TeSys D LC1D; TeSys F LC1F; TeSys F CR1F; TeSys Deca CAD; TeSys Deca LC1D Mounting location: Front Pole contact composition: 2 NO + 2 NC Contacts operation: Instantaneous [Ue] rated operational voltage: 690 V AC 25...400 Hz [Ie] rated operational current: 6 A at 120 V AC-15; 1.04 A at 690 V AC-15; 0.55 A at 125 V DC-13; 0.1 A at 600 V DC-13 [Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1 [Ith] conventional free air thermal current: 10 A (at 60 °C) Standards: EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; GB/T 14048.5; EN 50012; IEC 60335-1:Clause 30.2; IEC 60335-2-40:Annex JJ Product certifications: CB Scheme; CCC; cULus; CE; UKCA; EU-RO-MR by DNV Irms rated making capacity: 140 A AC conforming to IEC 60947-5-1; 250 A DC conforming to IEC 60947-5-1 Permissible short-time rating: 100 A 60 °C 1 s; 120 A 60 °C 500 ms; 140 A 60 °C 100 ms Protection type: GG fuse 10 A Mechanical durability: 30 Mcycles minimum switching current: 5 mA minimum switching voltage: 17 V Non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact; 1.5 ms on energisation no overlap between NC and NO contact Insulation resistance: > 10 MOhm Connections - terminals: Snap-in terminal 1 cable(s) 1…4 mm²flexible with cable end; Snap-in terminal 1 cable(s) 1…4 mm²flexible without cable end; Snap-in terminal 2 cable(s) 1…2.5 mm²flexible with cable end; Snap-in terminal 2 cable(s) 1…4 mm²flexible without cable end; Snap-in terminal 1 cable(s) 1…4 mm²rigid without cable end; Snap-in terminal 2 cable(s) 1…4 mm²rigid without cable end Height: 48 mm Width: 44 mm Depth: 42 mm Product weight: 63 g Colour: Dark grey Environmental characteristic: Normal environment IP degree of protection: IP20 conforming to IEC 60529 Protective treatment: TH conforming to IEC 60068 Ambient air temperature for storage: -60…80 °C Ambient air temperature for operation: -5…60 °C Operating altitude: 3000 m Number of Units in Package 1: 1 Number of Units in Package 2: 105 Country of origin: CN Warranty (in months): 18

HS Code

8538.90

• EAN 3606487541752
• SAP 1200879547
• Code 84149699
