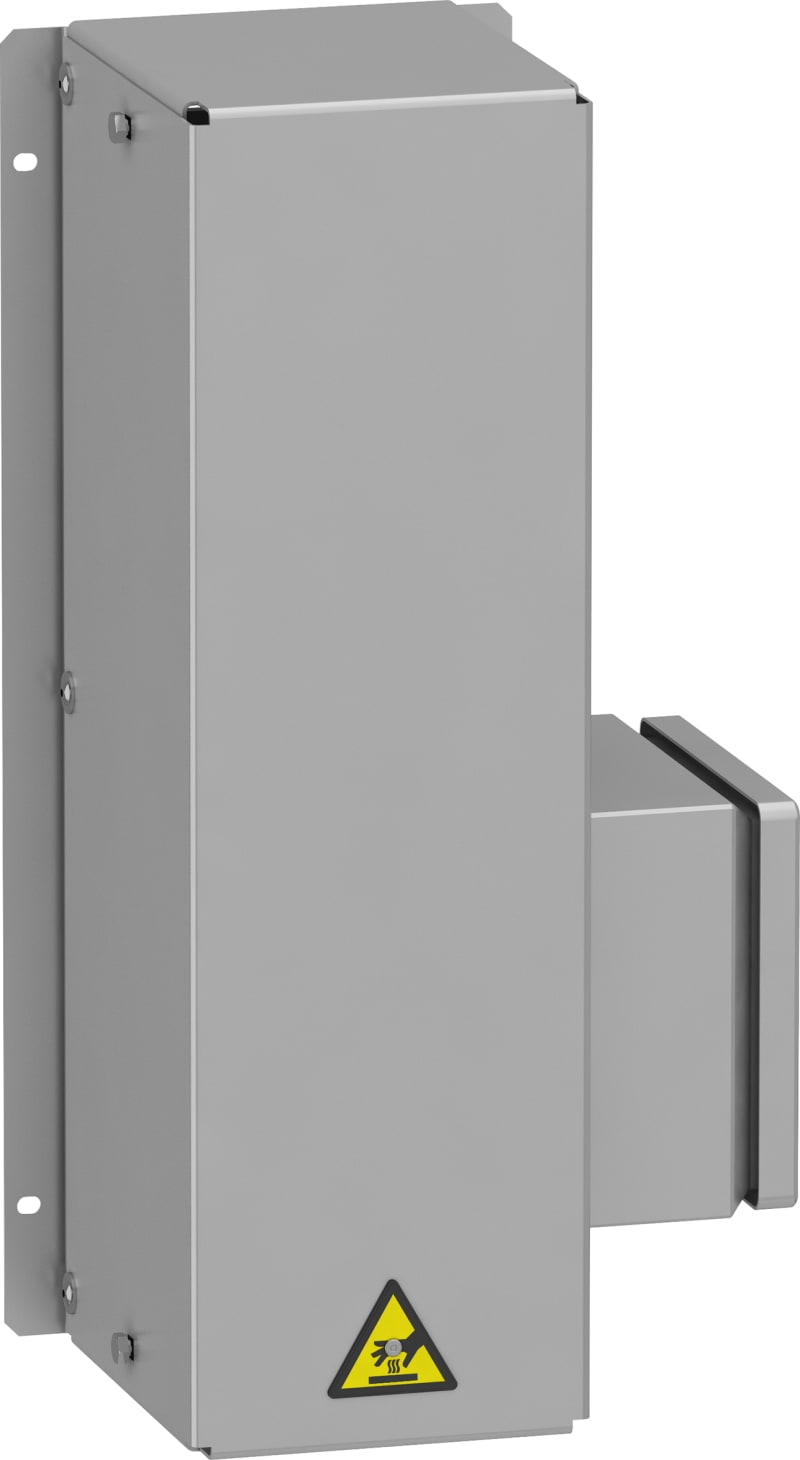

Schneider Electric braking resistor - 10 ohms - 1.1 kW - IP20 VW3A7734
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7734 Braking resistor 10 ohms 0,96kW IP20.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7734
- EAN / GTIN
- 3606480802287
- Sales unit
- pcs
- Power
- 0.96 kW
- Resistance
- 10 Ω
- Range of product
- Altivar
- Range compatibility
- Altivar Process ATV900; Altivar Machine ATV320; Altivar Machine ATV340
- Product or component type
- Braking resistor
- Ohmic value
- 10 Ohm
- [Ue] rated operational voltage
- 24 V DC; 250 V AC
- Product compatibility
- Variable speed drive ATV930 wall mount 37 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 45 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 11 kW 200...240 V light cycle; Variable speed drive ATV950 wall mount 37 kW 380...480 V light cycle; Variable speed drive ATV950 wall mount 45 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 11 kW 200...240 V medium cycle; Variable speed drive ATV340 30 kW 380...480 V light cycle; Variable speed drive ATV340 37 kW 380...480 V light cycle; Variable speed drive ATV320 7.5 kW 200...240 V; Variable speed drive ATV930 45 kW 500...690 V light cycle; Variable speed drive ATV930 55 kW 500...690 V light cycle; Variable speed drive ATV930 60 hp 600 V light cycle; Variable speed drive ATV930 75 hp 600 V light cycle
- Duty cycle
- Light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle ; Light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle ; Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle ; Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
- Average power available
- 0.96 kW at 50 °C
- Electrical connection
- terminal, connection capacity: <= 35 mm² / 3 AWG for drive; terminal, connection capacity: <= 4 mm² / 10 AWG for temperature control switch
- Protection type
- Thermal protection via drive or temperature control switch at 120 °C
- Width
- 190 mm
- Height
- 640 mm
- Depth
- 180 mm
- Product weight
- 4.3 kg
- IP degree of protection
- IP20
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- 0…50 °C
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 3606480802287
- SAP 1200020034
- Code 81392604
Product Documentation
