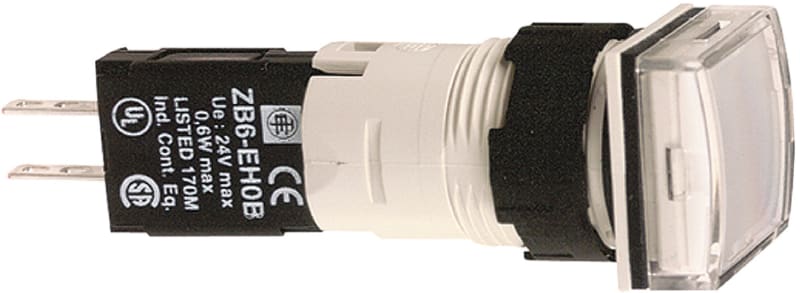

Schneider Electric Complete pilot light, Harmony XB6, square white, plastic, 16mm, integral LED, 12...24V XB6CV1BB

Schneider Electric XB6CV1BB Control device 16mm, complete units.

Manufacturer part number (MPN)

XB6CV1BB

EAN / GTIN

3389110764444

Sales unit

pcs

Package quantity

60 pcs

Range of product

Harmony XB6

Product or component type

Complete pilot light

Device short name

XB6

Bezel material

Plastic

Mounting diameter

16 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Square

Cap/operator or lens colour

White

Light source

LED

Bulb base

Integral LED

Light block supply

Direct

[Us] rated supply voltage

12...24 V AC/DC

Height

18 mm

Width

18 mm

Depth

57 mm

Terminals description ISO n°1

(+ -)PL

Product weight

0.015 kg

Operating position

Any position

Connections - terminals

Faston connectors, connection size: 2.8 x 0.5 mm

[Ui] rated insulation voltage

250 V (pollution degree 2) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Signalling type

Steady

Supply voltage limits

6…30 V AC/DC

Current consumption

15 mA

Surge withstand

1 kV direct contact conforming to IEC 61000-4-5; 2 kV in free air conforming to IEC 61000-4-5

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

NEMA degree of protection

NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94

Standards

IEC 60947-1; IEC 60947-5-5; UL 508; JIS C 852; CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-5-1; JIS C8201-1

Product certifications

CCC; CSA; UL; GOST

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

Class B conforming to IEC 55011

Number of Units in Package 1

1

Number of Units in Package 2

75

Warranty (in months)

18

Hole diameter

16.2 mm

Voltage type

AC/DC

Colour lens

White

Number of indicator lights

1

Rated operating voltage Ue

12–24 V

Colour front ring

Black

Type of electric connection

Flat plug-in connection

Degree of protection (IP)

IP65/IP67

With light source

Yes

Material front ring

Plastic

With front ring

Yes

Construction type lens

Square

Type of lamp socket

LED

Type of lens

Flat

Country of origin

France

HS Code

8531.80
