Illuminated push-button head yellow LED with boot

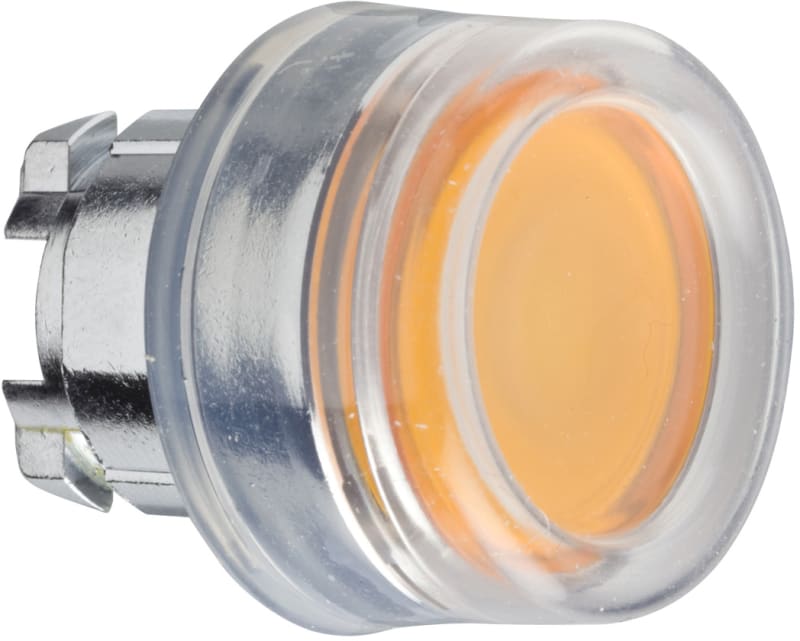

Schneider Electric ZB4BW553 illuminated push-button head with yellow LED and clear protective boot. Harmony XB4, 22 mm mounting diameter, chromium-plated metal bezel, IP66/IP67.

Manufacturer part number (MPN)

ZB4BW553

EAN / GTIN

3389110892819

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for illuminated push-button

Device short name

ZB4

Product compatibility

Universal LED

Bezel material

Chromium plated metal

Head type

Standard

Mounting diameter

22 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Orange flush, unmarked

Operator additional information

Clear boot

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

30 mm

Product weight

0.031 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

10000000 cycles

Electrical composition code

M1 for <6 contacts using single blocks in front mounting with integral LED; M2 for <6 contacts using single and double blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED

Device presentation

Basic sub-assemblies

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 62262

Standards

JIS C8201-5-1; IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-5-5; IEC 60947-5-4; IEC 60947-1; UL 508; JIS C8201-1

Product certifications

BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

150

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Orange

Suitable for lighting

Yes

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

No

Country of origin

France

HS Code

8538.90
