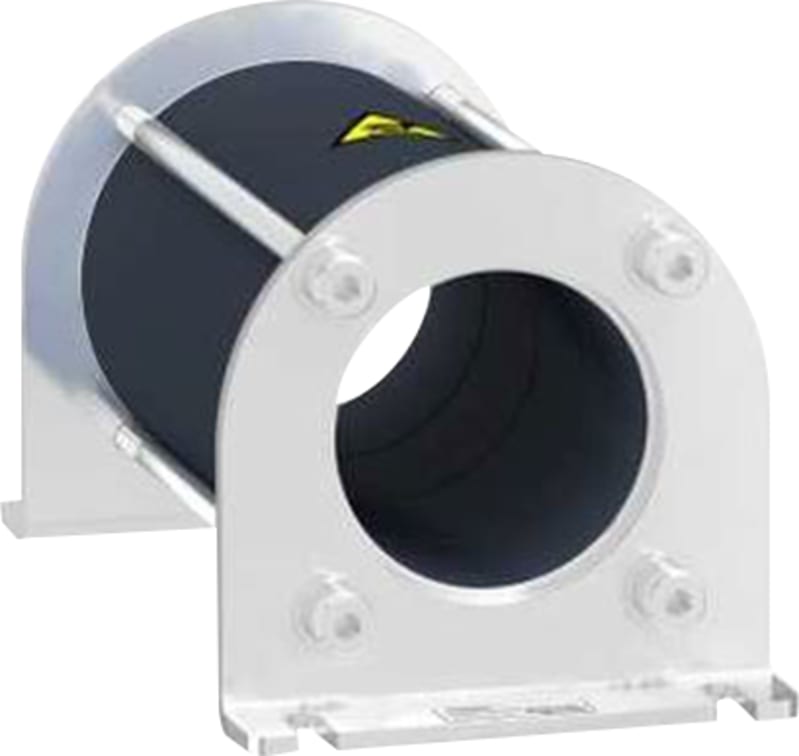

Commenmodefilter t/110-160KW (VW3A5505)

Schneider Electric VW3A5505 Common mode filter m/ 4 cores D3.

Manufacturer part number (MPN)

VW3A5505

EAN / GTIN

3606485435800

Sales unit

pcs

Product or component type

Common mode output filter

Range compatibility

Altivar Process ATV600; Altivar Process ATV900

Value of inductance

183.2 µH

Product compatibility

Variable speed drive ATV630 wall mount, 110…160 kW, 380...480 V; Variable speed drive ATV650 wall mount, 110…160 kW, 380...480 V; Variable speed drive ATV930 wall mount, 110…160 kW, 380...480 V; Variable speed drive ATV950 wall mount, 110…160 kW, 380...480 V; Variable speed drive ATV630 wall mount, 55…75 kW, 200...240 V; Variable speed drive ATV930 wall mount, 55…75 kW, 200...240 V

Maximum motor cable length

150 m(unshielded cable) motor: 110…160 kW 380...480 V, with 1 filter; 150 m(shielded cable) motor: 110 kW 380...480 V, with 1 filter; 300 m(shielded cable) motor: 130…160 kW 380...480 V, with 2 filter; 500 m(unshielded cable) motor: 110…160 kW 380...480 V, with 2 filter; 500 m(shielded cable) motor: 110 kW 380...480 V, with 1 filter + VW3A5506; 150 m(unshielded cable) motor: 55…75 kW 200...240 V, with 1 filter; 150 m(shielded cable) motor: 55 kW 200...240 V, with 1 filter; 300 m(shielded cable) motor: 75 kW 200...240 V, with 2 filter; 500 m(unshielded cable) motor: 55…75 kW 200...240 V, with 2 filter; 500 m(shielded cable) motor: 55 kW 200...240 V, with 1 filter + VW3A5506

Saturation current

3.6 A

internal diameter

123.9 mm for 3-phase cable inside; 123.9 mm for PE cable outside

Electrical insulation class

Class I

Mechanical robustness

Shocks class 3M4 conforming to IEC 60721-3-3; Vibrations class 3M4 conforming to IEC 60721-3-3

Switching frequency

<= 10 kHz

Maximum output frequency

100 Hz

Height

197 mm

Width

191 mm

Depth

196 mm

Product weight

6 kg

Relative humidity

5…95 % without condensation

Ambient air temperature for operation

-15…60 °C

Ambient air temperature for storage

-40…70 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

22.500 cm

Package 1 Width

36.000 cm

Package 1 Length

26.000 cm

Package 1 Weight

6.597 kg

Unit Type of Package 2

P06

Number of Units in Package 2

6

Package 2 Height

75.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

52.582 kg

Warranty (in months)

18

Suitable as sinus filter

No

Suitable as du/dt-filter

No

Suitable as radio interference suppression filter

No

Suitable as audio frequency blockage

No

Number of poles, primary side

3

Rated clock frequency

10 kHz

Rated operating frequency

50–60 Hz

Max. rated operation voltage Ue

480 V

Rated current AC

3.6 A

Country of origin

Thailand

HS Code

8548.00

• EAN 3606485435800
• SAP 1000743680
• Code 8421328
