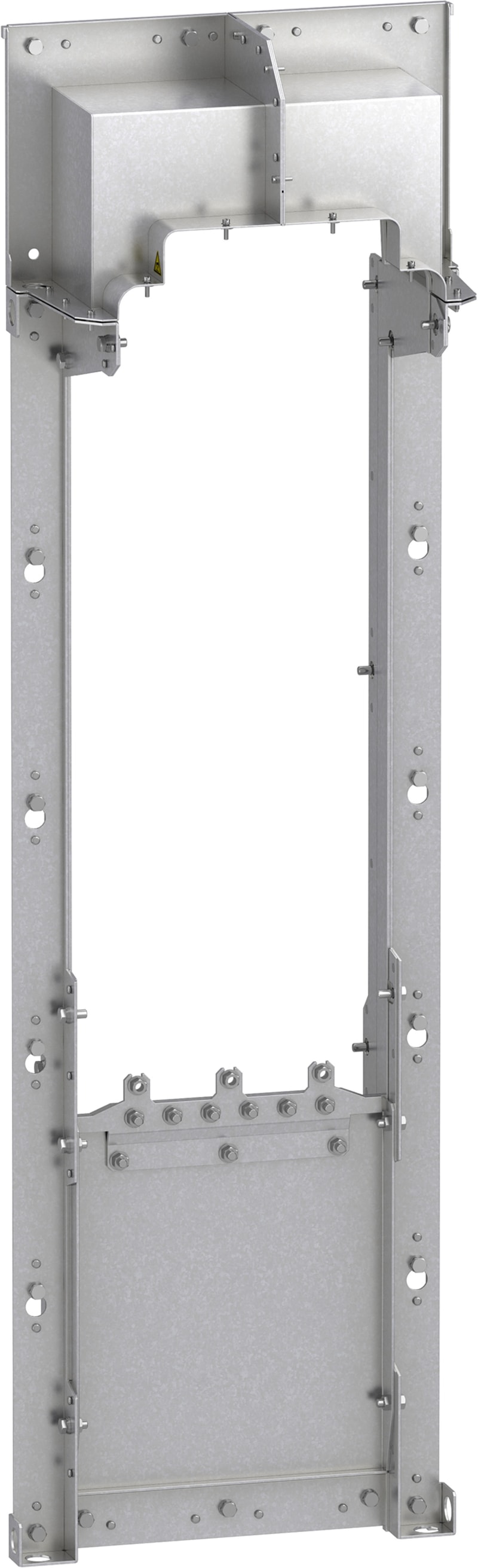

Plan assembly kit size 6

Schneider Electric VW3A95116 Flat mounting kit for ALTIVAR P 110-160kW for heat dissipation outside the cabinet.

Manufacturer part number (MPN)

VW3A95116

EAN / GTIN

3606481335036

Sales unit

pcs

Range of product

Altivar

Accessory / separate part category

Mounting and fixing accessory

Accessory / separate part type

Mounting kit

Product compatibility

Variable speed drive ATV600 motor at 110 kW, 380...480 V; Variable speed drive ATV600 motor at 132 kW, 380...480 V; Variable speed drive ATV600 motor at 160 kW, 380...480 V; Variable speed drive ATV900 motor at 110 kW, 380...480 V; Variable speed drive ATV900 motor at 132 kW, 380...480 V; Variable speed drive ATV900 motor at 160 kW, 380...480 V

Accessory / separate part destination

Variable speed drive

Range compatibility

Altivar Process ATV900; Altivar Process ATV600

Product specific application

For mounting the drive power section outside the enclosure

Kit composition

1 cutting and drilling template; 1 fan support; 1 user manual; 1 metal frame of the right size for drive rating; corner pieces; fixing accessories; seals

Environmental characteristic

Dust and damp proof

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

31.500 cm

Package 1 Width

38.500 cm

Package 1 Length

125.000 cm

Package 1 Weight

20.000 kg

Unit Type of Package 2

P12

Number of Units in Package 2

4

Package 2 Height

112.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

95.000 kg

Warranty (in months)

18

Type of accessory/spare part

Mounting set

Accessory

Yes

Spare part

No

Country of origin

China

HS Code

7326.90

• EAN 3606481335036
• SAP 1200077116
• Code 81922250
