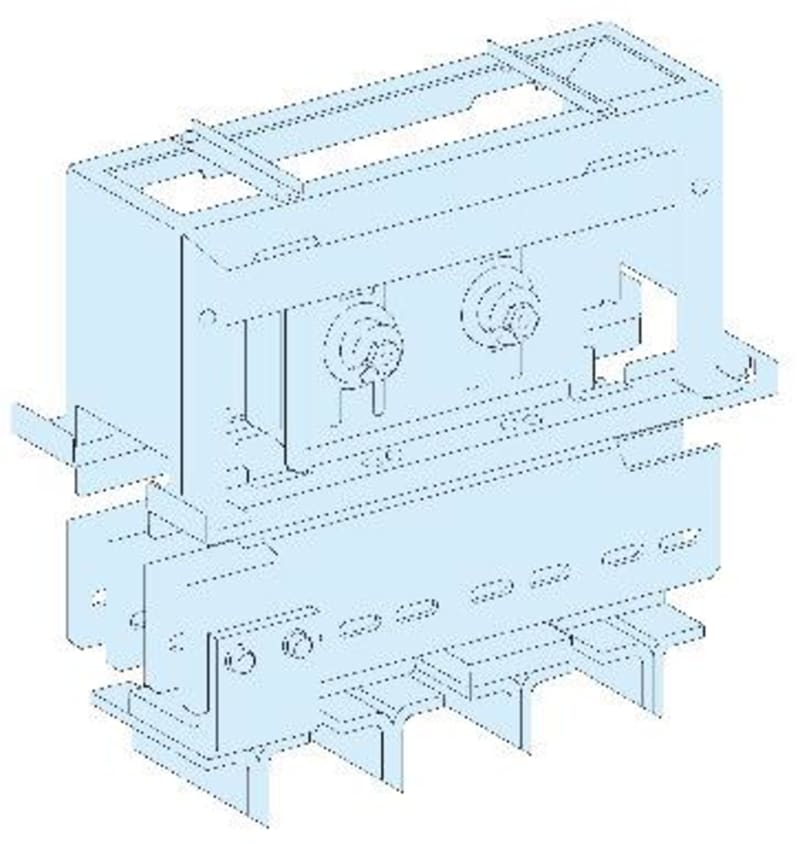

Canalis Connection 3200A MTZ2 4P Prisma
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04736 Canalis Connection 3200A MTZ2 4P for PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04736
- EAN / GTIN
- 3606481868220
- Sales unit
- pcs
- Rated current
- 3200 A
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Interface and connection Canalis
- product name
- PrismaSeT PrismaSeT P enclosure; Canalis Canalis KT busbar trunking; Masterpact MasterPact NW circuit breaker
- Accessory / separate part category
- Interface accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- KT with Canalis
- Poles description
- 4P
- installation description
- Cubicle - width 650 mm
- Cubicle depth
- 600 mm: front; 600 + 400 mm: rear
- Installed device
- Masterpact: drawout NW32 - control: toggle vertical installation; Masterpact: fixed NW32 - control: toggle vertical installation
- [Ie] rated operational current
- 3200 A
- Height
- 350 mm
- Width
- 575 mm
- Depth
- 450 mm
- Product weight
- 70 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 4P 1 front connection on Canalis 28; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 4P 1 rear connection on Canalis 17; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 4P 1 front connection on Canalis 28; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 4P 1 rear connection on Canalis 16
- Warranty (in months)
- 18
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481868220
- SAP 1200547040
- Code 82879118
Product Documentation
More from Schneider Electric
Schneider Electric
Mounting plate 1000X750
NSYPMM107
Schneider Electric

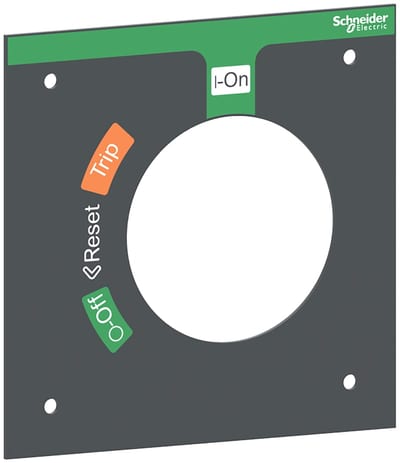

MCC dreieh. konverteringsett (LV429341T)
Schneider Electric

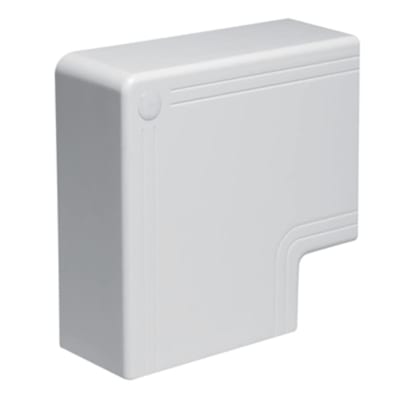

L-Piece Tir+ 40/40 White
5427150
Schneider Electric

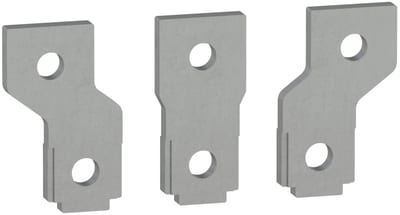

Schneider Electric spreader set - 35 mm pitch - 3 poles LV426940
Schneider Electric

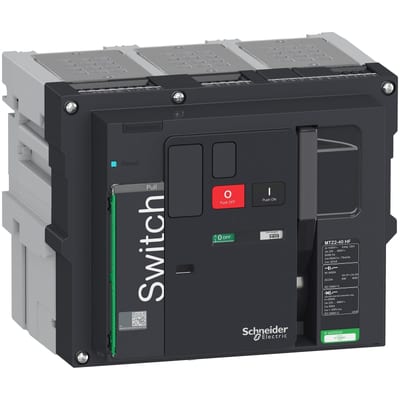

Schneider Electric switch disconnector Masterpact MTZ2 40 HF, 4000 A, 3 poles, drawout LV848326
Schneider Electric

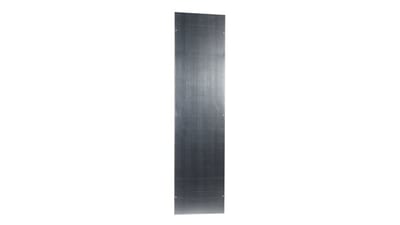

Schneider Electric PanelSet SF partition panel - galvanised steel - 1800X600 mm NSYPPS186
Schneider Electric

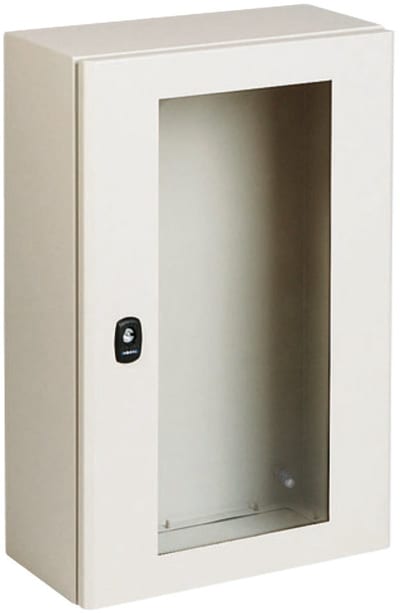

WALL-Mount Cabinet WITH WINDOW. 8X6X3
NSYS3D8630T
Schneider Electric

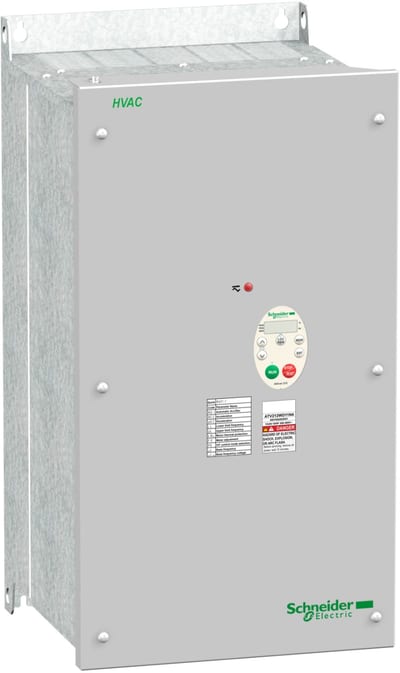

Schneider Electric variable speed drive ATV212 - 15kW - 20hp - 480V - 3PH - EMC class C2 - IP55 ATV212WD15N4
