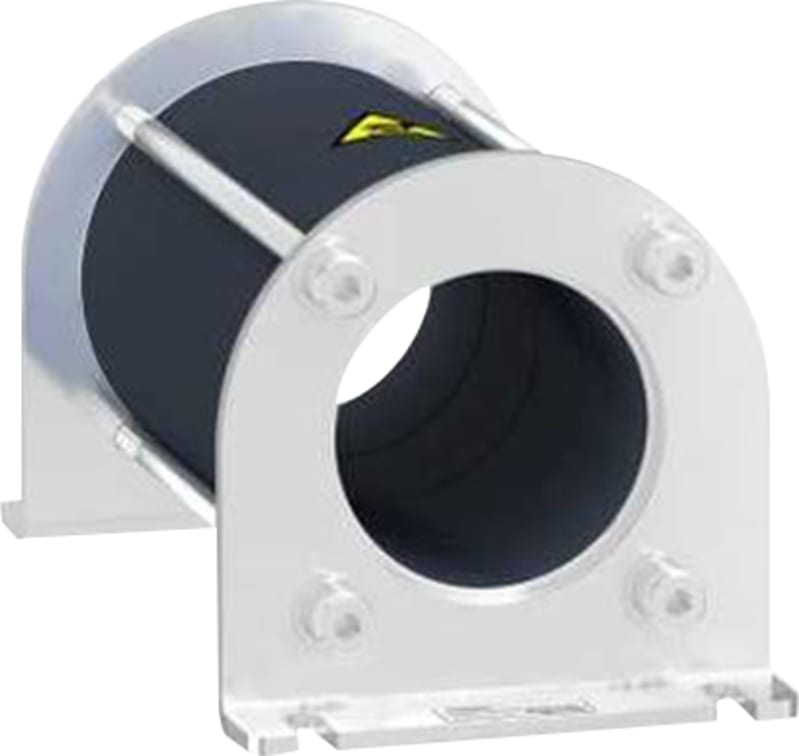

Commenmodefilter t/ 15-90kW

Schneider Electric VW3A5504 Common mode filter m/ 6 cores D2.

Manufacturer part number (MPN)

VW3A5504

EAN / GTIN

3606485435794

Sales unit

pcs

Product or component type

Common mode output filter

Range compatibility

Altivar Process ATV600; Altivar Process ATV900

Value of inductance

180 µH

Product compatibility

Variable speed drive ATV630 wall mount, 15…90 kW, 380...480 V; Variable speed drive ATV650 wall mount, 15…90 kW, 380...480 V; Variable speed drive ATV930 wall mount, 15…90 kW, 380...480 V; Variable speed drive ATV950 wall mount, 15…90 kW, 380...480 V; Variable speed drive ATV630 wall mount, 7.5…45 kW, 200...240 V; Variable speed drive ATV930 wall mount, 7.5…45 kW, 200...240 V

Maximum motor cable length

150 m(shielded cable) motor: 30…90 kW 380...480 V, with 1 filter; 300 m(unshielded cable) motor: 15…90 kW 380...480 V, with 1 filter; 300 m(shielded cable) motor: 30…90 kW 380...480 V, with 1 filter + VW3A5503; 500 m(unshielded cable) motor: 30…90 kW 380...480 V, with 1 filter + VW3A5503; 500 m(shielded cable) motor: 15…22 kW 380...480 V, with 1 filter + VW3A5503; 500 m(shielded cable) motor: 30…90 kW 380...480 V, with 2 filter; 1000 m(unshielded cable) motor: 15…22 kW 380...480 V, with 1 filter + VW3A5503; 1000 m(unshielded cable) motor: 30…90 kW 380...480 V, with 2 filter; 150 m(shielded cable) motor: 15…45 kW 200...240 V, with 1 filter; 300 m(unshielded cable) motor: 7.5…45 kW 200...240 V, with 1 filter; 300 m(shielded cable) motor: 15…45 kW 200...240 V, with 1 filter + VW3A5503; 500 m(unshielded cable) motor: 15…45 kW 200...240 V, with 1 filter + VW3A5503; 500 m(shielded cable) motor: 7.5…11 kW 200...240 V, with 1 filter + VW3A5503; 500 m(shielded cable) motor: 15…45 kW 200...240 V, with 2 filter; 1000 m(unshielded cable) motor: 7.5…11 kW 200...240 V, with 1 filter + VW3A5503; 1000 m(unshielded cable) motor: 15…45 kW 200...240 V, with 2 filter

Saturation current

2.2 A

internal diameter

76 mm for 3-phase cable inside; 76 mm for PE cable outside

Electrical insulation class

Class I

Mechanical robustness

Shocks class 3M4 conforming to IEC 60721-3-3; Vibrations class 3M4 conforming to IEC 60721-3-3

Switching frequency

<= 10 kHz

Maximum output frequency

100 Hz

Height

210 mm

Width

127.5 mm

Depth

127.5 mm

Product weight

2.96 kg

Relative humidity

5…95 % without condensation

Ambient air temperature for operation

-15…60 °C

Ambient air temperature for storage

-40…70 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

17.000 cm

Package 1 Width

27.700 cm

Package 1 Length

18.200 cm

Package 1 Weight

3.328 kg

Unit Type of Package 2

P06

Number of Units in Package 2

24

Package 2 Height

75.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

92.872 kg

Country of origin

TH

Warranty (in months)

18

Suitable as sinus filter

No

Suitable as du/dt-filter

No

Suitable as radio interference suppression filter

No

Suitable as audio frequency blockage

No

Number of poles, primary side

3

Rated clock frequency

10 kHz

Rated operating frequency

50–60 Hz

Max. rated operation voltage Ue

480 V

Rated current AC

2.2 A

HS Code

8548.00
