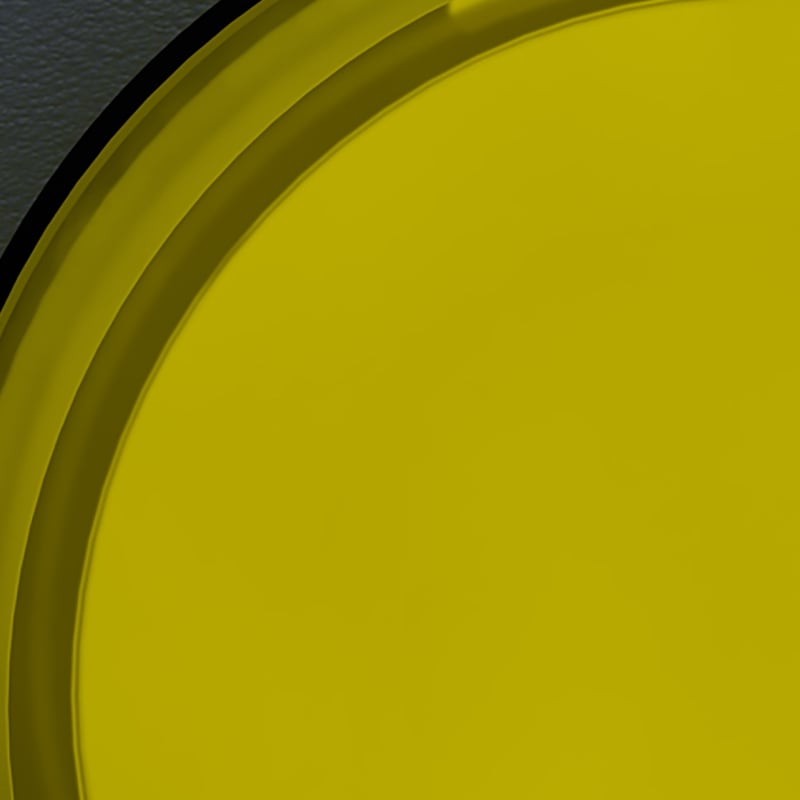

Push-button, flush, for LED, yellow, raised (ZB5FH83)

Schneider Electric ZB5FH83 Push-Button Head flush with pressure/pressure for LED and label under en high yellow push surface.

Manufacturer part number (MPN)

ZB5FH83

EAN / GTIN

3606481361783

Sales unit

pcs

Range of product

Harmony XB5

Product or component type

Head for illuminated push-button

Device short name

ZB5F

Product compatibility

Universal LED

Bezel material

Dark grey plastic

Mounting diameter

30.5 mm

Head type

Built-in-flush

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

push-push

Operator profile

Yellow projecting, unmarked

CAD overall width

37 mm

CAD overall height

37 mm

CAD overall depth

32 mm

Product weight

0.031 kg

Mechanical durability

500000 cycles

Electrical composition code

C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; C9 for <3 contacts using single blocks in front mounting

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50 E; Type 12 conforming to UL 50 E; Type 4 conforming to UL 50 E; Type 4X conforming to UL 50 E

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK03 conforming to IEC 50102

Standards

UL 508; IEC 60947-5-4; IEC 60947-1; JIS C8201-5-1; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-1

Product certifications

UL listed; CSA

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.3 cm

Package 1 Width

5.3 cm

Package 1 Length

5.5 cm

Package 1 Weight

25.0 g

Country of origin

FR

Warranty (in months)

18

Hole diameter

30.5 mm

Colour button

Yellow

Suitable for lighting

Yes

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Black

Degree of protection (IP), front side

IP66

With protective cover

Yes

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90
