Schneider Electric PanelSeT SF/SM canopy - 600X300 mm NSYSC630
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSC630 Rain hood 6X3.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSC630
- EAN / GTIN
- 3606485131252
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Canopy
- Application
- Multi-purpose
- Range compatibility
- PanelSeT SM
- For enclosure nominal dimensions
- -
- Mounting location
- On top of enclosure
- Device composition
- 1 canopy; fixing elements; drilling template
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - roof drilled holes location
- Height
- 85 mm
- Width
- Nominal: 600 mm; Real: 607 mm
- Depth
- Nominal : 300 mm; Real : 325 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.000 cm
- Package 1 Width
- 35.000 cm
- Package 1 Length
- 62.000 cm
- Package 1 Weight
- 4.226 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 3
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 35.000 cm
- Package 2 Length
- 62.000 cm
- Package 2 Weight
- 12.226 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- RAL-number
- 7035
- With cable entry
- No
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building depth
- 300 mm
- With de-aeration
- No
- Suitable for outdoor set-up
- Yes
- Surface finishing
- Powder coating
- Suitable for roof planking
- Yes
- Suitable for bottom planking
- No
- Suitable for outdoor installation
- Yes
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485131252
- SAP 1000089725
- Code 8840346
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Marked legend, Harmony XAC, legend, 30X40MM, white, forward, slow ZB2BY4913
Schneider Electric
NG125L/B 63-1 Modular Power Switch
18748
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250HB1, 75KA/690VAC, 4 poles 4D (neutral fully protected), TMD trip unit 200A C25V4TM200
Schneider Electric
Gland Plate 6X4 (NSYEC64)
Schneider Electric
Schneider Electric PanelSeT SF/SM partial 19" swing rack - 735 mm NSYRSWP15
Schneider Electric
Telequick plate for 27X27 PLS
NSYPMR2727
Schneider Electric
Schneider Electric Door, PrismaSeT G, transparent with frame, 23M, W600, IP55, white, RAL 9003 LVS08336
Schneider Electric

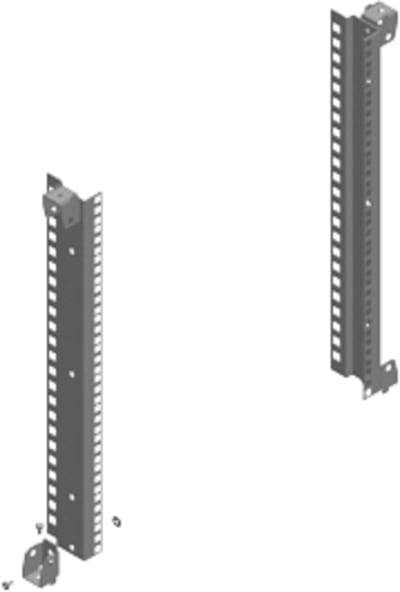

Schneider Electric PanelSeT SF/SM partial 19" fixed rack - 800 mm NSYRCKP17
