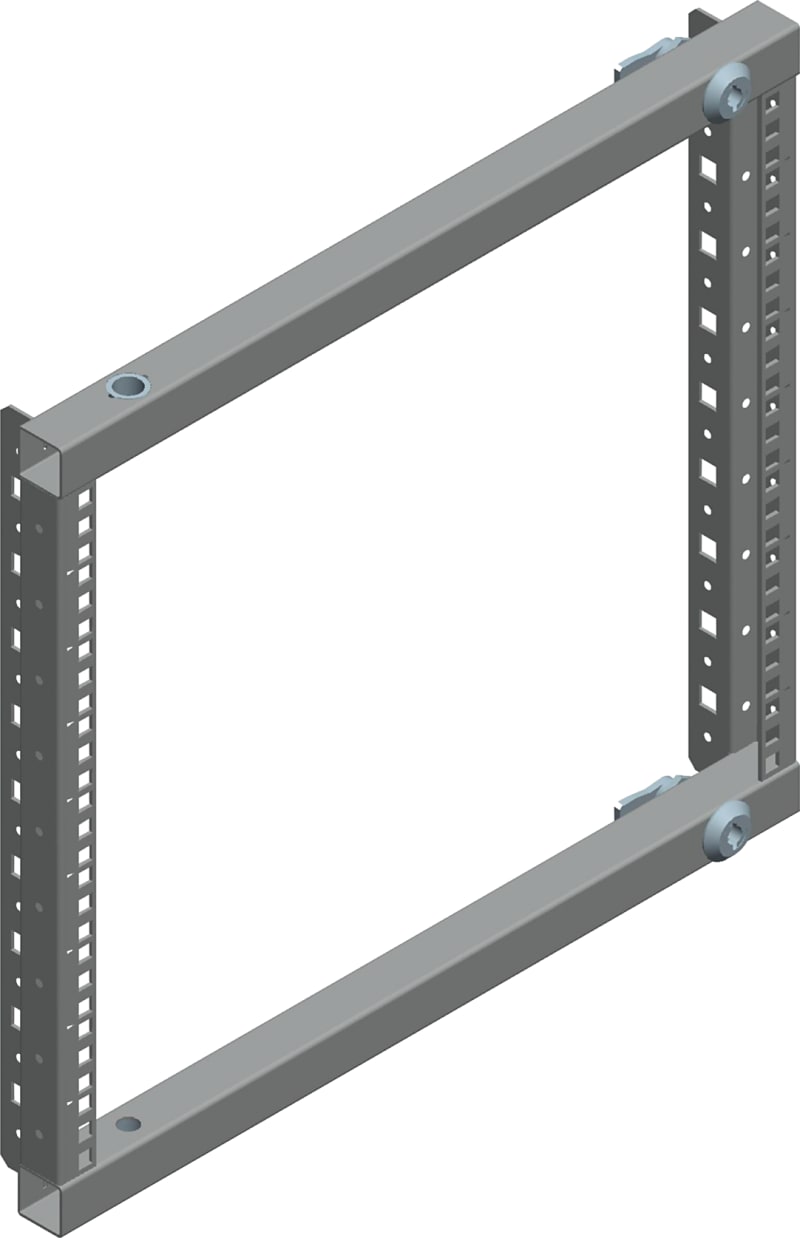

Schneider Electric PanelSeT SF/SM partial 19" swing rack - 735 mm NSYRSWP15
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYRSWP15 Spacial SF/SM partial 19" - Swing frame - 735 mm - 15 modules.
Technical Specifications
- Manufacturer part number (MPN)
- NSYRSWP15
- EAN / GTIN
- 3606480067358
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- 19" rack
- Application
- Electronic application
- For enclosure nominal dimensions
- - H: 735 mm
- Rack type
- Swing
- Mounting location
- Front of enclosure
- Mounting support
- Partial 19" swing rack support
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM
- Device composition
- 1 rack
- Number of units 19"
- 15
- Rack coverage
- Partial
- Material
- Steel
- Enclosure/cubicle description
- Floor-standing enclosure
- Surface finish
- Zinc coated
- Lock type
- Lock 5 mm double bar
- fixing mode
- By fixing element
- Adjustment
- Adjustable in depth every 25 mm
- Permanent permissible load
- 2 kg per unit
- Opening of the 19" racks
- Reversible 120 °
- Height
- 735 mm
- Width
- 600 mm; 800 mm
- Depth
- 735 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.500 cm
- Package 1 Width
- 51.500 cm
- Package 1 Length
- 76.000 cm
- Package 1 Weight
- 3.850 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 10
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 53.500 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Swing frame
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building height
- 735 mm
- Max. load capacity
- 30 kg
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480067358
- SAP 1000470676
- Code 8580237
Product Documentation
More from Schneider Electric
Schneider Electric
Telequick plate for 27X27 PLS
NSYPMR2727
Schneider Electric
Schneider Electric Door, PrismaSeT G, transparent with frame, 23M, W600, IP55, white, RAL 9003 LVS08336
Schneider Electric
Schneider Electric PanelSeT SF/SM partial 19" fixed rack - 800 mm NSYRCKP17
Schneider Electric

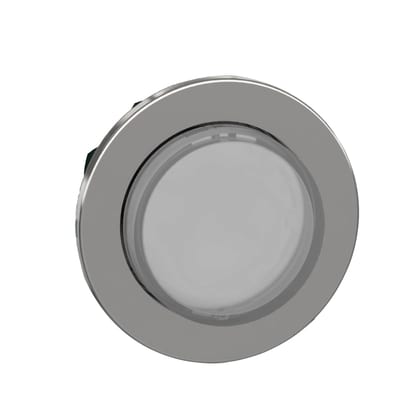

Push-button, flush, for LED, white, raised (ZB4FH13)
Schneider Electric

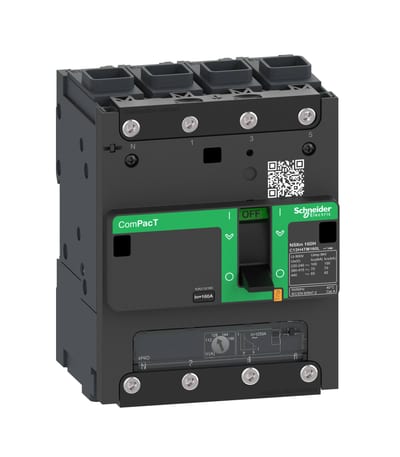

Schneider Electric Circuit breaker, ComPacT NSXm 63H, 70KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 50A, EverLink lugs C11H4TM050L
Schneider Electric

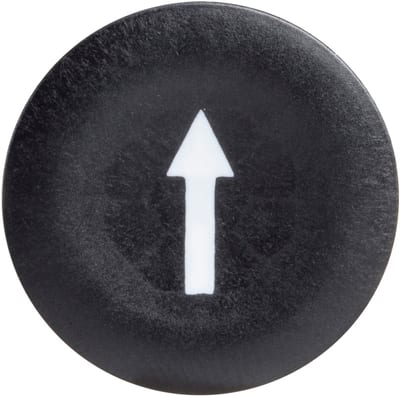

Push Button CAP, with PIL (ZBA335)
Schneider Electric

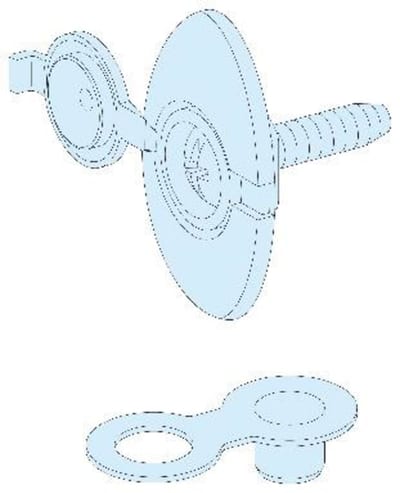

Fixing Kit for Top Plate, PrismaSeT P, IP30
LVS01112
Schneider Electric

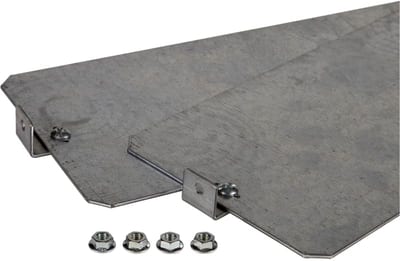

1-Row Mounting Plate for DLP/PLA Enclosures, Width 750 mm
