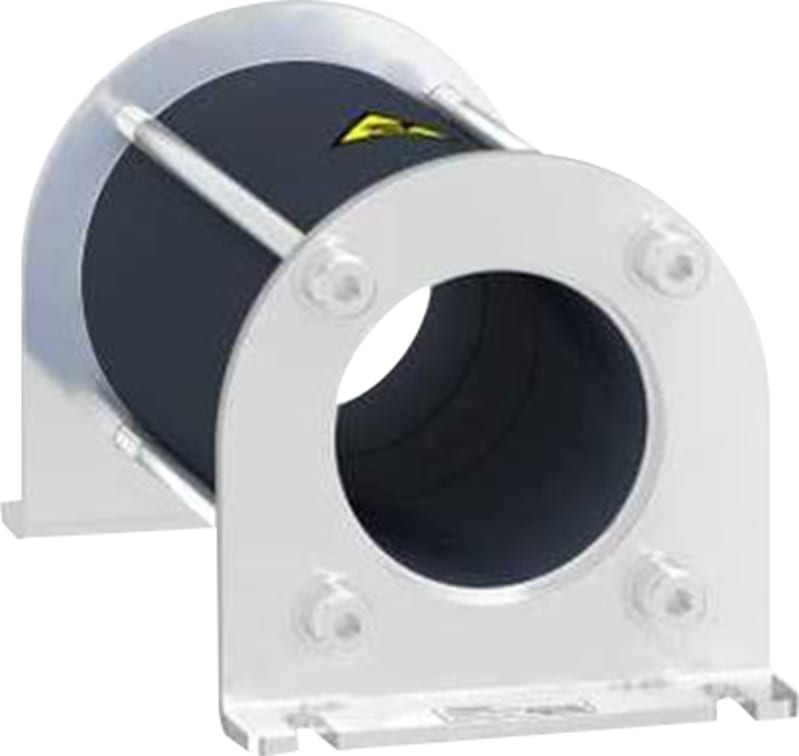

Commenmodefilter t/ 15 - 90kW
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A5503 Common mode filter m/ 4 cores D2.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A5503
- EAN / GTIN
- 3606485435787
- Sales unit
- pcs
- Power
- 90 kW
- Product or component type
- Common mode output filter
- Range compatibility
- Altivar Process ATV900; Altivar Process ATV600
- Value of inductance
- 120 µH
- Product compatibility
- Variable speed drive ATV630 wall mount, 15…90 kW, 380...480 V; Variable speed drive ATV650 wall mount, 15…90 kW, 380...480 V; Variable speed drive ATV930 wall mount, 15…90 kW, 380...480 V; Variable speed drive ATV950 wall mount, 15…90 kW, 380...480 V; Variable speed drive ATV630 wall mount, 7.5…45 kW, 200...240 V; Variable speed drive ATV930 wall mount, 7.5…45 kW, 200...240 V
- Maximum motor cable length
- 150 m(unshielded cable) motor: 15…90 kW 380...480 V, with 1 filter; 150 m(shielded cable) motor: 15…22 kW 380...480 V, with 1 filter; 300 m(shielded cable) motor: 15…22 kW 380...480 V, with 2 filter; 300 m(shielded cable) motor: 30…90 kW 380...480 V, with 1 filter + VW3A5504; 500 m(unshielded cable) motor: 15…22 kW 380...480 V, with 2 filter; 500 m(unshielded cable) motor: 30…90 kW 380...480 V, with 1 filter + VW3A5504; 500 m(shielded cable) motor: 15…22 kW 380...480 V, with 1 filter + VW3A5504; 1000 m(unshielded cable) motor: 15…22 kW 380...480 V, with 1 filter + VW3A5504; 150 m(unshielded cable) motor: 7.5…45 kW 200...240 V, with 1 filter; 150 m(shielded cable) motor: 7.5…11 kW 200...240 V, with 1 filter; 300 m(shielded cable) motor: 7.5…11 kW 200...240 V, with 2 filter; 300 m(shielded cable) motor: 15…45 kW 200...240 V, with 1 filter + VW3A5504; 500 m(unshielded cable) motor: 7.5…11 kW 200...240 V, with 2 filter; 500 m(unshielded cable) motor: 15…45 kW 200...240 V, with 1 filter + VW3A5504; 500 m(shielded cable) motor: 7.5…11 kW 200...240 V, with 1 filter + VW3A5504; 1000 m(unshielded cable) motor: 7.5…11 kW 200...240 V, with 1 filter + VW3A5504
- Saturation current
- 2.2 A
- internal diameter
- 76 mm for 3-phase cable inside; 76 mm for PE cable outside
- Electrical insulation class
- Class I
- Mechanical robustness
- Shocks class 3M4 conforming to IEC 60721-3-3; Vibrations class 3M4 conforming to IEC 60721-3-3
- Switching frequency
- <= 10 kHz
- Maximum output frequency
- 100 Hz
- Height
- 161 mm
- Width
- 127.5 mm
- Depth
- 127.5 mm
- Product weight
- 2.19 kg
- Relative humidity
- 5…95 % without condensation
- Ambient air temperature for operation
- -15…60 °C
- Ambient air temperature for storage
- -40…70 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 24
- Country of origin
- TH
- Warranty (in months)
- 18
- Suitable as sinus filter
- No
- Suitable as du/dt-filter
- No
- Suitable as radio interference suppression filter
- No
- Suitable as audio frequency blockage
- No
- Number of poles, primary side
- 3
- Rated clock frequency
- 10 kHz
- Rated operating frequency
- 50–60 Hz
- Max. rated operation voltage Ue
- 480 V
- Rated current AC
- 2.2 A
Standards & Compliance
- HS Code
- 8548.00
Cross References
- EAN 3606485435787
- SAP 1000743678
- Code 8421058
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Trip unit MicroLogic 6.3EM, ComPacT NSX630, 3 poles, basic and ground fault protections, motor, energy meter, 500A C6336M500
Schneider Electric
Schneider Electric variable speed drive ATV212 - 7.5kW - 10hp - 480V - 3PH - EMC class C2 - IP55 ATV212WU75N4
Schneider Electric
Schneider Electric Arc chute screen, MasterPact MTZ1 fixed, 3P, front connected LV847335SP
Schneider Electric

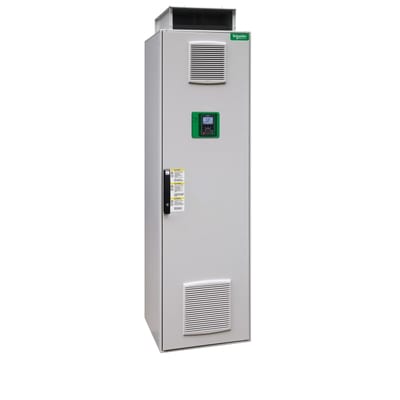

Schneider Electric variable speed drive ATV630 - 200kW - 380...440V - IP21 ATV630C20N4F
Schneider Electric

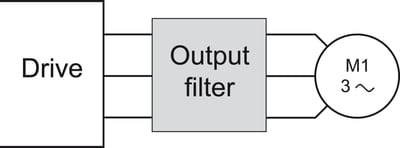

Output Filter dv/dt IP20 5A
VW3A5301
Schneider Electric

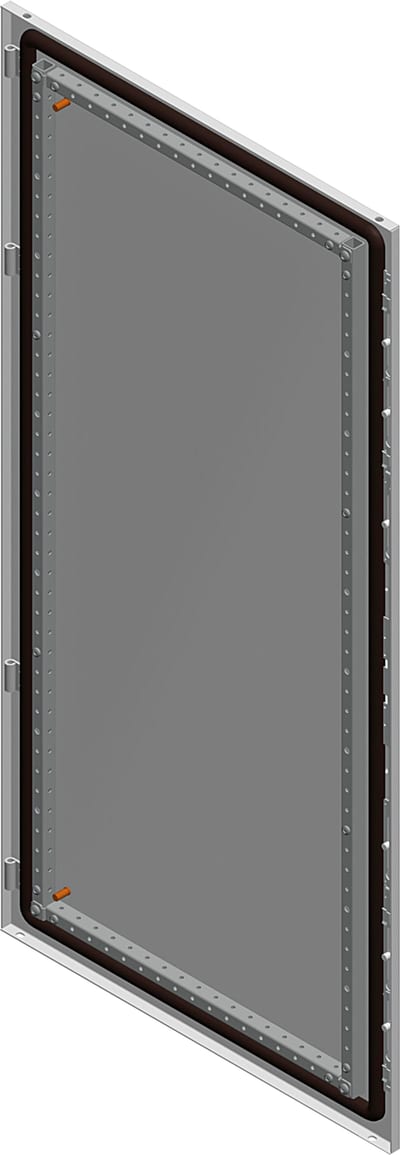

Schneider Electric PanelSet SF double plain doors - 2000X1200 mm NSYSFD20122D
Schneider Electric

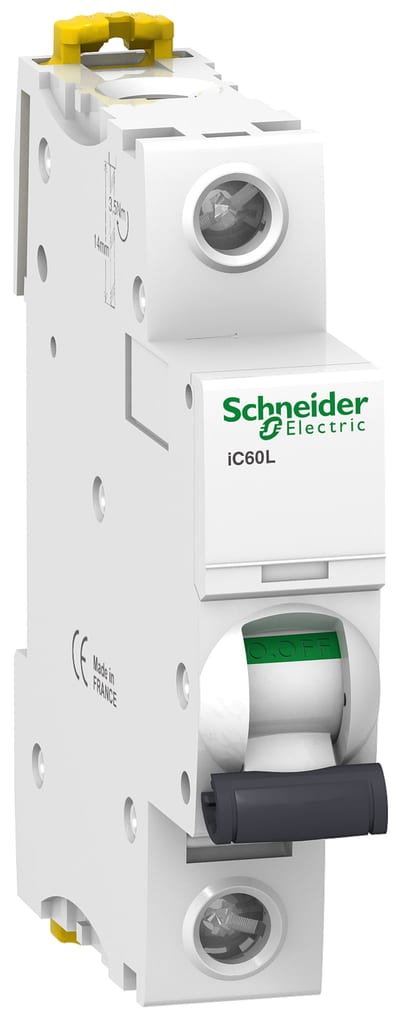

Schneider Electric A9F92106 ACTI9 IC60L Miniature Circuit Breaker 1P 6 A, Curve Z
