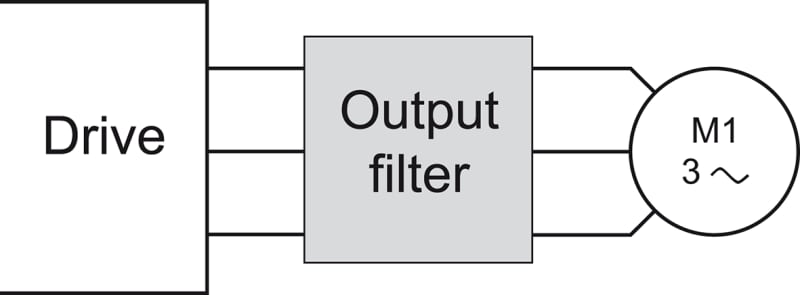

Output Filter dv/dt IP20 5A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A5301 Output Filter dv/dt IP20 5A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A5301
- EAN / GTIN
- 3606480736681
- Sales unit
- pcs
- IP rating
- IP20
- Rated current
- 5 A
- Product or component type
- Dv/dt filter
- Range compatibility
- Altivar Process ATV600; Altivar Process ATV900; Easy Altivar 610; Altivar Machine ATV340
- Product specific application
- Output filter
- [In] rated current
- 6 A
- Product compatibility
- ATV630 variable speed drive wall mount - 0.75 kW, 380...480 V; ATV630 variable speed drive wall mount - 1.5 kW, 380...480 V; ATV630 variable speed drive wall mount - 2.2 kW, 380...480 V; ATV630 variable speed drive wall mount - 0.75 kW, 200...240 V; ATV650 variable speed drive wall mount - 0.75 kW, 380...480 V; ATV650 variable speed drive wall mount - 1.5 kW, 380...480 V; ATV650 variable speed drive wall mount - 2.2 kW, 380...480 V; ATV610 variable speed drive - 0.75 kW, 380...415 V; ATV610 variable speed drive - 1.5 kW, 380...415 V; ATV610 variable speed drive - 2.2 kW, 380...415 V; ATV930 variable speed drive wall mount - 0.75 kW, 380...480 V; ATV930 variable speed drive wall mount - 1.5 kW, 380...480 V; ATV930 variable speed drive wall mount - 2.2 kW, 380...480 V; ATV930 variable speed drive wall mount - 0.75 kW, 200...240 V; ATV950 variable speed drive wall mount - 0.75 kW, 380...480 V; ATV950 variable speed drive wall mount - 1.5 kW, 380...480 V; ATV950 variable speed drive wall mount - 2.2 kW, 380...480 V
- nedded quantity
- 1
- Electrical connection
- Terminal block, connection capacity: 6 mm² / 10 AWG
- Maximum motor cable length
- 300 m unshielded cable; 300 m shielded cable
- dv/dt
- 3000 V/µs max at 200...240 V; 3000 V/µs max at 380...480 V
- Thermal losses
- 16 W at 4 kHz
- maximum drive output frequency
- 100 Hz
- Ambient air temperature for operation
- -10…50 °C (without current derating); 50…60 °C (with current derating 1.5 % per °C)
- Operating altitude
- 0...1000 m without current derating; 1000...4000 m with current derating 1 % per 100 m
- Width
- 295 mm
- Height
- 535 mm
- Depth
- 215 mm
- Product weight
- 11 kg
- IP degree of protection
- IP20; IP21 (with kit VW3A53902)
- Ambient air temperature for storage
- -40…70 °C
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8504.50
Cross References
- EAN 3606480736681
- SAP 1000708143
- Code 8325127
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PanelSet SF double plain doors - 2000X1200 mm NSYSFD20122D
Schneider Electric
Schneider Electric A9F92106 ACTI9 IC60L Miniature Circuit Breaker 1P 6 A, Curve Z
Schneider Electric
Gland Plate for plinth-Prisma G-IP30-B600
LVS08887
Schneider Electric
Internal corner FED 7640AN
5440110
Schneider Electric
Mounting plate NSX250PLUGIN Polyp Vertical P
LVS03423
Schneider Electric
Schneider Electric Accessory, PrismaSeT P, Framework accessories LVS01104
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 700A, advanced version, 24…48V wide band AC/DC coil LC1G5004BEEA
Schneider Electric
Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W400MM, 2 rows, set of 2 NSYSUCR6540
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy VW3A5301?
- VW3A5301 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is VW3A5301.
- What is the HS code for VW3A5301?
- The customs tariff (HS) code for VW3A5301 is 8504.50.
- Who manufactures VW3A5301?
- VW3A5301 is a Schneider Electric product in the Drives & Controllers range.
- Is a datasheet available for VW3A5301?
- Yes — the VW3A5301 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for VW3A5301?
- The minimum order quantity is 1.
- Is VW3A5301 available?
- Yes — VW3A5301 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
