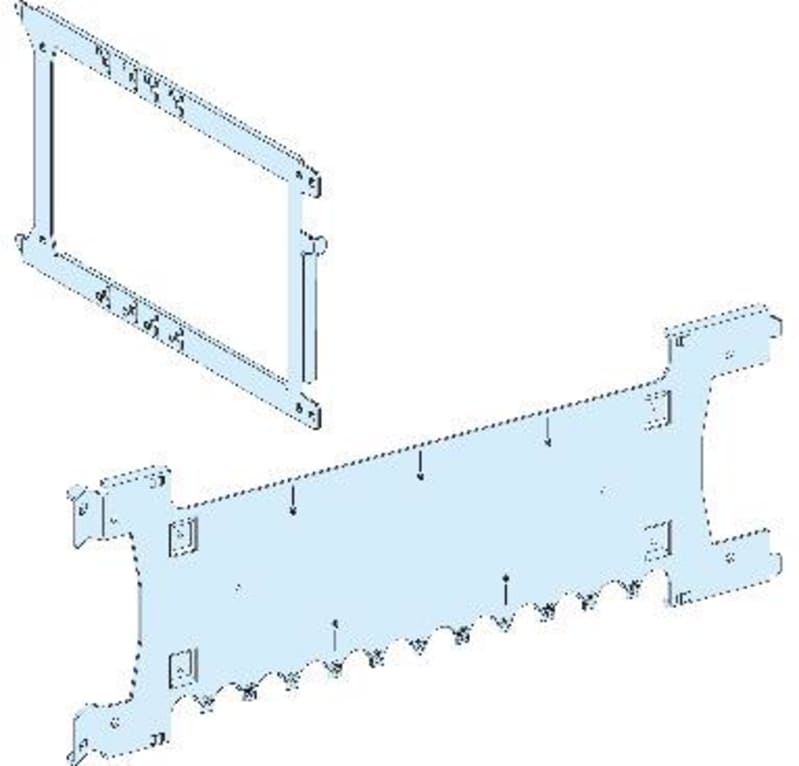

Mounting plate NSX250PLUGIN Polyp Vertical P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03423 Mounting plate for NSX100-250-plugin-vertical-for Polypact connection-3P/4P-PrismaSeT P-650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03423
- EAN / GTIN
- 3606481874344
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 400 mm
- Installed device
- ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: toggle - vertical installation
- Poles description
- 4 x 3P: plug-in NSX100...160 vertical installation; 3 x 4P: plug-in NSX100...160 vertical installation; 4 x 3P: plug-in NSX250 vertical installation; 3 x 4P: plug-in NSX250 vertical installation
- Number of vertical modules [50 mm]
- 7 module(s): NSX100...160 without earth leakage protection , Linergy FC in 650 mm Widecubicle; 8 module(s): NSX250 without earth leakage protection , Linergy FC in 650 mm Widecubicle; 9 module(s): NSX100...160 with earth leakage protection , Linergy FC in 650 mm Widecubicle; 10 module(s): NSX250 with earth leakage protection , Linergy FC in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 603 mm
- Height
- 202 mm
- Depth
- 372 mm
- Product weight
- 2.98 kg
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle vertical 3P 4 Linergy FC 7 87.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle vertical 4P 3 Linergy FC 7 87.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle vertical 3P 4 Linergy FC 8 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle vertical 4P 3 Linergy FC 8 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle vertical 3P 4 Linergy FC 9 87.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle vertical 4P 3 Linergy FC 9 87.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 3P 4 Linergy FC 10 87.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 4P 3 Linergy FC 10 87.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 20.000 cm
- Package 1 Length
- 58.000 cm
- Package 1 Weight
- 3.071 kg
- Unit Type of Package 2
- X12
- Number of Units in Package 2
- 60
- Package 2 Height
- 45.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 203.360 kg
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874344
- SAP 1200546676
- Code 82879958
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Accessory, PrismaSeT P, Framework accessories LVS01104
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 700A, advanced version, 24…48V wide band AC/DC coil LC1G5004BEEA
Schneider Electric
Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W400MM, 2 rows, set of 2 NSYSUCR6540
Schneider Electric
Schneider Electric flush mounted black selector switch head knurled knob 2 pos return r to l ZB5FD49
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 100V AC 50/60Hz coil, snap-in terminals LC1D18AK7
Schneider Electric
Schneider Electric Door, PrismaSeT G, transparent with frame, 27M, W600, IP55, white, RAL 9003 LVS08337
Schneider Electric
Schneider Electric TeSys D control relay - 5 NO - <= 690 V - 24 V AC standard coil CAD50B7
Schneider Electric

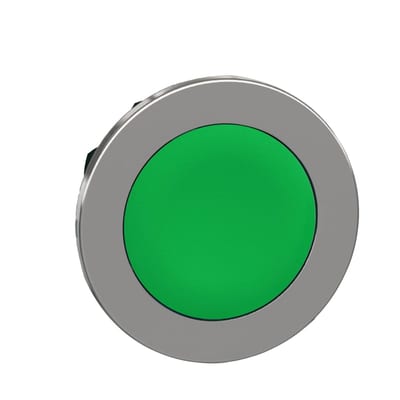

Push-button flush green (ZB4FH03)
