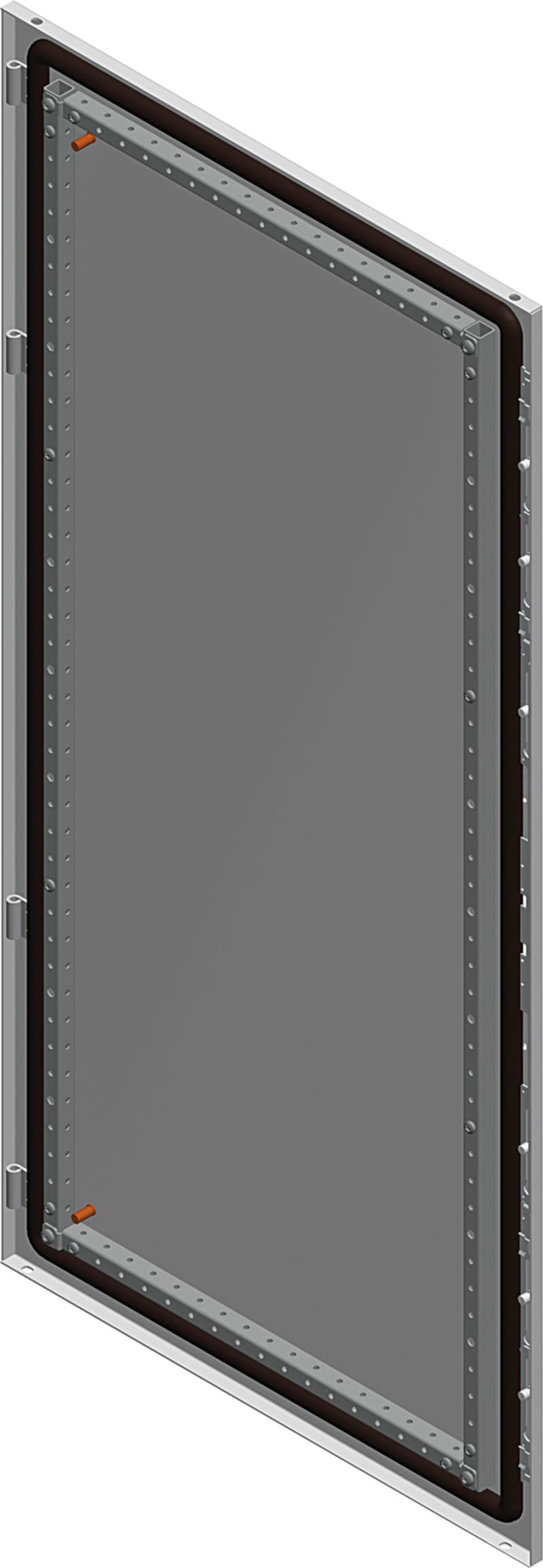

Schneider Electric PanelSet SF double plain doors - 2000X1200 mm NSYSFD20122D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFD20122D Floor-standing cabinet Doors 20X12 15/10.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFD20122D
- EAN / GTIN
- 3606485119526
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- -
- Mounting location
- Front
- Range compatibility
- PanelSeT SF
- Device composition
- 1 lock with handle and 5 mm double bar insert; 1 locking bar system 4 points; 2 door; 1 blocking system; 2 reinforcement frame; 8 hinges
- Quantity per set
- Set of 1
- Material
- Sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- Number of locks
- 1
- Door type
- External plain
- Door opening side
- Reversible (120 °)
- Height
- Nominal: 2000 mm
- Width
- Nominal: 1200 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.300 cm
- Package 1 Width
- 65.000 cm
- Package 1 Length
- 208.000 cm
- Package 1 Weight
- 47.600 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 8
- Package 2 Height
- 88.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 210.000 cm
- Package 2 Weight
- 402.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 26 mm
- EMC-version
- No
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485119526
- SAP 1000089937
- Code 8915611
Product Documentation
