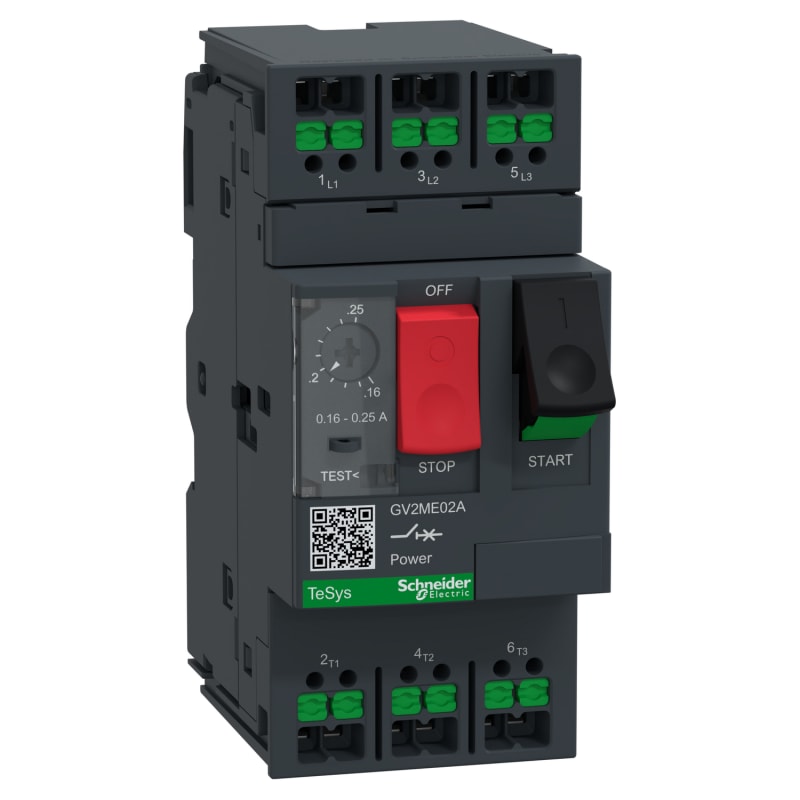

Schneider Electric Motor circuit breaker, TeSys Deca, 3P, AC-3/AC-3E, 0.16 to 0.25A, thermal magnetic, snap-in terminals, push button GV2ME02A

Schneider Electric GV2ME02A — TeSys motor protection circuit breaker. Manual motor starter with thermal and magnetic protection. Motor protection circuit breaker, TeSys Deca, 3P, AC-3/AC-3e, 0,16 for 0,25A, thermal-magnetic, Snap-In, push-button.

Manufacturer part number (MPN)

GV2ME02A

EAN / GTIN

3606487541790

HS code

8536.90

Sales unit

pcs

Package quantity

20 pcs

Range

TeSys Deca

Product name

TeSys GV2

Product or component type

Motor circuit breaker

Device short name

GV2ME

Device application

Motor protection

Trip unit technology

Thermal-magnetic

Poles description

3P

Network type

AC

Utilisation category

Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1; AC-3e conforming to IEC 60947-4-1

Network frequency

50/60 Hz conforming to IEC 60947-2

Motor power kW

0.06 kW at 400/415 V AC 50/60 Hz

Breaking capacity

100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2

[Ics] rated service short-circuit breaking capacity

100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2

Control type

Push-button

[In] rated current

0.25 A

Thermal protection adjustment range

0.16…0.25 A conforming to IEC 60947-2

Magnetic tripping current

3.08 A

[Ith] conventional free air thermal current

0.25 A conforming to IEC 60947-2

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

Phase failure sensitivity

Yes conforming to IEC 60947-4-1

Suitability for isolation

Yes conforming to IEC 60947-1

Power dissipation per pole

2.5 W

Mechanical durability

100000 cycles

Electrical durability

100000 cycles for AC-3 at 415 V In; 100000 cycles for AC-3e at 415 V In

Rated duty

Uninterrupted conforming to IEC 60947-4-1

Connections - terminals

Power circuit: snap-in terminal 2 cable(s) 0.5…2.5 mm² - solid; Power circuit: snap-in terminal 2 cable(s) 0.5…4 mm² - flexible without cable end; Power circuit: snap-in terminal 2 cable(s) 0.5…2.5 mm² - flexible with cable end; Power circuit: snap-in terminal 2 cable(s) (20 AWG...12 AWG) - solid; Power circuit: snap-in terminal 2 cable(s) (20 AWG...10 AWG) - stranded

Fixing mode

35 mm symmetrical DIN rail: clipped; Panel: screwed (with adaptor plate)

Mounting position

Horizontal; Vertical

Width

45 mm

Height

101 mm

Depth

78.5 mm

Product weight

258 g

Colour

Dark grey

Standards

EN/IEC 60947-2; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-2-40:Annex JJ; IEC/EN 60335-1:Clause 30.2

Product certifications

CB Scheme; CE; UKCA; CCC; cULus

IK degree of protection

IK04

IP degree of protection

IP20 conforming to IEC 60529 (on front face)

Climatic withstand

conforming to IACS E10

Ambient air temperature for storage

-40…80 °C

Fire resistance

960 °C conforming to IEC 60695-2-11

Ambient air temperature for operation

-20…60 °C

Mechanical robustness

Shocks: 30 Gn for 11 ms; Vibrations: 5 Gn, 5...150 Hz

Operating altitude

<= 2000 m

Number of Units in Package 1

1

Number of Units in Package 2

20

Warranty (in months)

18

HS Code

8536.90

• EAN 3606487541790
• SAP 1200879719
