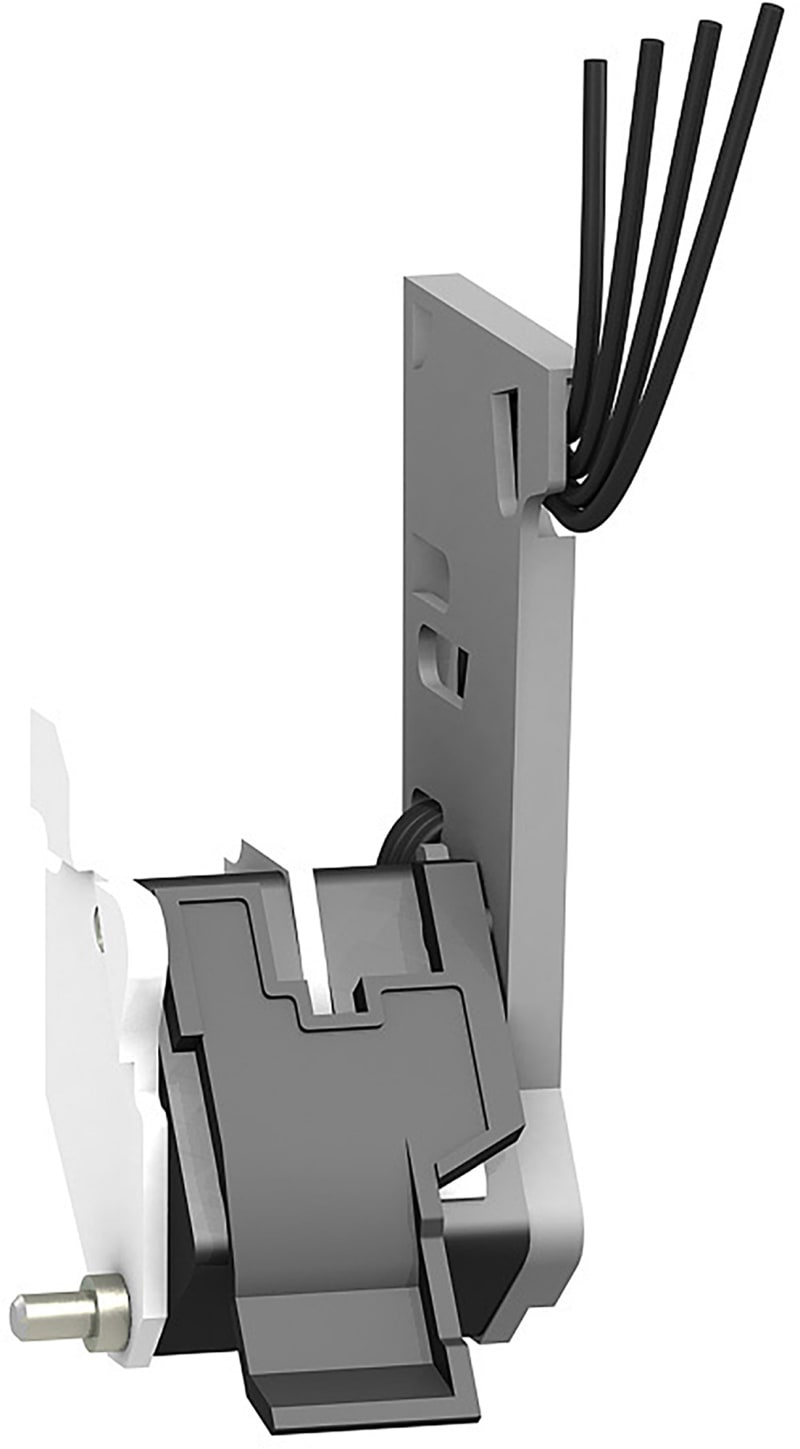

Schneider Electric standard early make contact, ComPact NSX100 to NSX630, rotary handle position CAF, 2 changeover contact types LV429346

Schneider Electric LV429346 Early-make kont. f/dreieh x2.

Manufacturer part number (MPN)

LV429346 EAN / GTIN: 3606480020445 Sales unit: pcs Range of product: ComPact NSX100...250; ComPact NSX100...250 DC; ComPact NSX400...630; ComPact NSX400...630 DC Range: ComPact Device short name: 2 early-make contacts Product or component type: Auxiliary contact Device application: Control Range compatibility: ComPact ComPact NSX; ComPact ComPact NSX DC; PowerPact PowerPact H; PowerPact PowerPact J; PowerPact PowerPact L Auxiliary contacts type: Standard Auxiliary contacts operation: Early-make mounting mode: Drawout [Ith] conventional free air thermal current: 6 A [Ie] rated operational current: AC-12: 6 A at 110 V AC 50/60 Hz; AC-12: 6 A at 220/240 V AC 50/60 Hz; AC-12: 6 A at 24 V AC 50/60 Hz; AC-12: 6 A at 380/440 V AC 50/60 Hz; AC-12: 6 A at 48 V AC 50/60 Hz; AC-12: 6 A at 480 V AC 50/60 Hz; AC-12: 6 A at 660/690 V AC 50/60 Hz; AC-15: 0.1 A at 660/690 V AC 50/60 Hz; AC-15: 1.5 A at 480 V AC 50/60 Hz; AC-15: 2 A at 380/440 V AC 50/60 Hz; AC-15: 4 A at 220/240 V AC 50/60 Hz; AC-15: 5 A at 110 V AC 50/60 Hz; AC-15: 6 A at 24 V AC 50/60 Hz; AC-15: 6 A at 48 V AC 50/60 Hz; DC-12: 0.3 A at 250 V DC; DC-12: 0.6 A at 110 V DC; DC-12: 2.5 A at 48 V DC; DC-12: 6 A at 24 V DC; DC-14: 0.03 A at 250 V DC; DC-14: 0.05 A at 110 V DC; DC-14: 0.2 A at 48 V DC; DC-14: 1 A at 24 V DC minimum load: 100 mA at 24 V DC Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 4.000 cm Package 1 Width: 6.500 cm Package 1 Length: 8.200 cm Package 1 Weight: 68.000 g Unit Type of Package 2: S03 Number of Units in Package 2: 45 Package 2 Height: 30 cm Package 2 Width: 30 cm Package 2 Length: 40 cm Package 2 Weight: 3.460 kg Country of origin: FR Warranty (in months): 18

HS Code

8538.90

• EAN 3606480020445
• SAP 1000092282
• Code 8930244
