Spreder 4P G400-500 50 mm
Pricing
Request a quote
We reply within 24 hours
Product Description

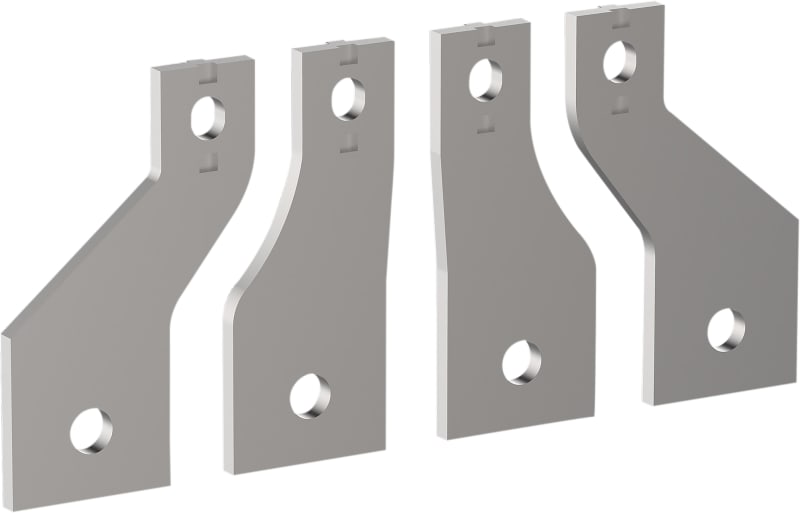

Schneider Electric LA9G4613 Spredersett for TeSys Giga-contactor LC1G400-500, 4-pole, 50 mm connection.
Technical Specifications
- Manufacturer part number (MPN)
- LA9G4613
- EAN / GTIN
- 3606481915719
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Number of poles
- 4P
- Device short name
- LA9G
- Product or component type
- Terminal extension
- Accessory / separate part category
- Connection accessories
- Range compatibility
- TeSys LC1G; TeSys LR9G
- Poles description
- 4P
- Quantity per set
- Set of 4
- Connection pitch
- 50 mm
- Product weight
- 1.07 kg
- Product compatibility
- LC1G400...500
- Height
- 85 mm
- Width
- 3 mm
- Depth
- 30 mm
- Pollution degree
- 3 conforming to IEC 60947-1
- Product certifications
- cULus
- Standards
- EN/IEC 60947-1; UL 60947-1; CSA C22.2 No 60947-1; GB/T 14048
- Operating altitude
- 3000 m without derating; 5000 m with derating factor
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481915719
- SAP 1200587667
- Code 82974660
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Complete push button, Harmony XB4, Explosive atmosphere, pushbutton greeb with integrated boot XB4BPS31GEX
Schneider Electric
Schneider Electric Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W800MM, 3 rows, set of 2 NSYSQCR9080
Schneider Electric
Schneider Electric Miniature plug-in relay, 10 A, 3 CO, 110 V DC RXM3AB1FD
Schneider Electric
Schneider Electric Barrel lock, PrismaSeT G, with 2 Keys N3455, IP55 LVS09945
Schneider Electric
Schneider Electric additionnal EMC filter - 23.9 A - 1 POLAR WHITE VW3A4426
Schneider Electric
Vertical Vridbart Bracket 50X50
NSYCMUCR50
Schneider Electric

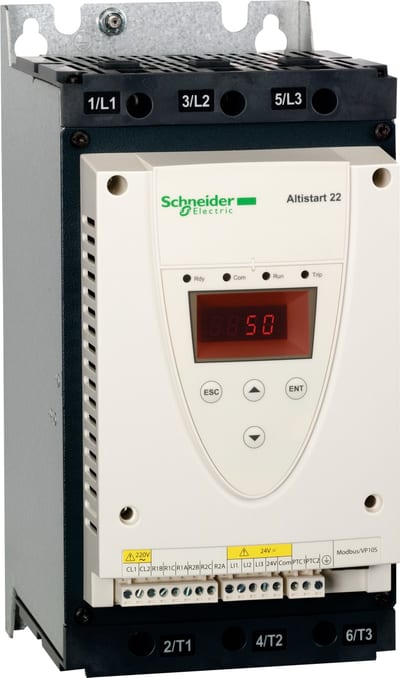

Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(18.5kW)/400...440V(37kW)/500V(45kW) ATS22D75S6
Schneider Electric

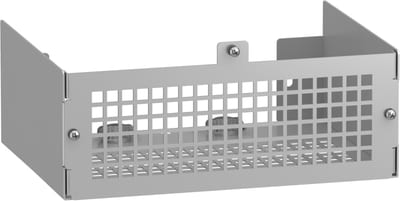

Anslutnings IP21 for VW3A5302
