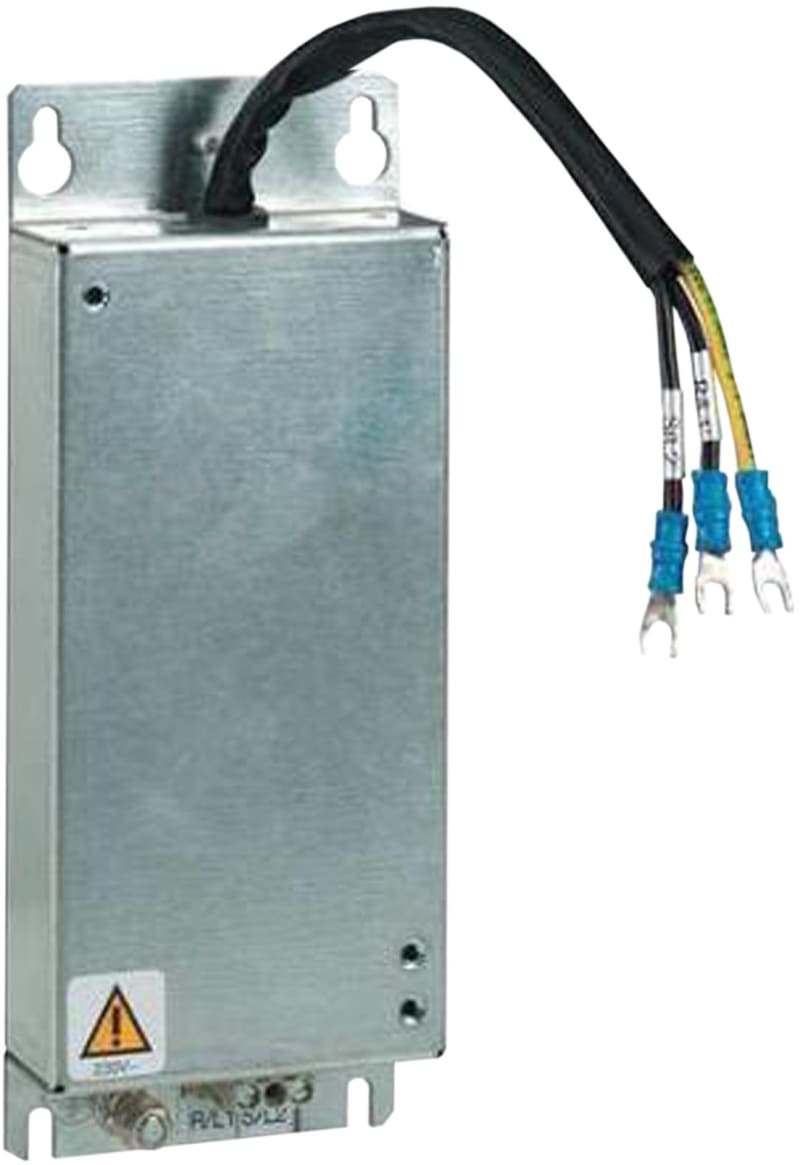

Schneider Electric additionnal EMC filter - 23.9 A - 1 POLAR WHITE VW3A4426
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A4426 EMC filter 1-phase 240V 24A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A4426
- EAN / GTIN
- 3606480320897
- Sales unit
- pcs
- Package quantity
- 11 pcs
- Voltage
- 240 V
- Range of product
- Lexium; Altivar
- Product or component type
- EMC input filter
- Range compatibility
- Altivar 32; Altivar Machine ATV320; Lexium 28
- Product compatibility
- LXM28A; ATV32, 200...240 V, 2.2 kW; Variable speed drive ATV320...B at 2.2 kW, 200...240 V, single phase
- Product specific application
- Radio interference input filter
- Mounting location
- At variable speed drive side
- Network number of phases
- Single phase
- Maximum cable distance between devices
- 20 m conforming to IEC 61800-3 category C1; 50 m conforming to IEC 61800-3 category C2
- [In] rated current
- 23.9 A
- Thermal losses
- 7.5 W
- Network rated voltage
- 200…240 V
- Tolerance
- - 15...10 %
- Product weight
- 1.13 kg
- Emc filter compatibility
- Type 026
- Country of origin
- TH
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3606480320897
- SAP 1000528419
- Code 8460146
