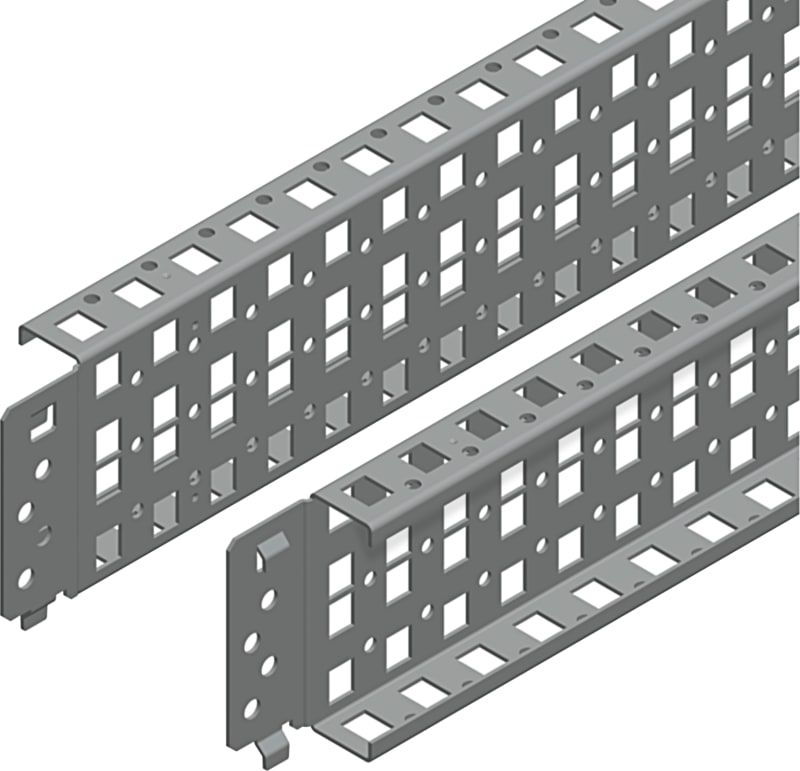

Schneider Electric Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W800MM, 3 rows, set of 2 NSYSQCR9080
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSQCR9080 Cross-arm 800/3.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSQCR9080
- EAN / GTIN
- 3606485132792
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Quick cross rails
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM; PanelSeT PanelSeT SFX; PanelSeT PanelSeT SMX
- Mounting location
- Between cross rails; On structure of enclosure
- Mounting support
- Adaptation profile, on SM enclosures
- Device composition
- fixing elements; 2 cross rails
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- By screws; Clipped - on structure location
- Adjustment
- Adjustable with a pitch of 25 mm
- Number of horizontal rows
- 3
- Maximum load
- 100 kg
- Height
- Nominal: 800 mm; Useful: 710 mm
- Width
- 90 mm
- Depth
- 27 mm
- thickness
- 1.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 154
- Country of origin
- IN
- Warranty (in months)
- 18
- Model
- Mounting rail
- Suitable for enclosure building width
- 800 mm
- Suitable for enclosure building depth
- 800 mm
- Max. load capacity
- 100 kg
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485132792
- SAP 1000090128
- Code 8845841
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Miniature plug-in relay, 10 A, 3 CO, 110 V DC RXM3AB1FD
Schneider Electric
Schneider Electric Barrel lock, PrismaSeT G, with 2 Keys N3455, IP55 LVS09945
Schneider Electric
Schneider Electric additionnal EMC filter - 23.9 A - 1 POLAR WHITE VW3A4426
Schneider Electric
Vertical Vridbart Bracket 50X50
NSYCMUCR50
Schneider Electric
Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(18.5kW)/400...440V(37kW)/500V(45kW) ATS22D75S6
Schneider Electric
Anslutnings IP21 for VW3A5302
VW3A53902
Schneider Electric
Schneider Electric NSYTFPCRN5 PanelSeT Door Cable-Guide Cross Rail W500
Schneider Electric
Schneider Electric switch disconnector Masterpact MTZ2 10 HF, 1000 A, 3 poles, fixed LV848020
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYSQCR9080?
- NSYSQCR9080 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYSQCR9080.
- What is the HS code for NSYSQCR9080?
- The customs tariff (HS) code for NSYSQCR9080 is 7326.90.
- Who manufactures NSYSQCR9080?
- NSYSQCR9080 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYSQCR9080?
- Yes — the NSYSQCR9080 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYSQCR9080?
- The minimum order quantity is 1.
- Is NSYSQCR9080 available?
- Yes — NSYSQCR9080 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
