Coil 100-250V Std 4P G265-330
Pricing
Request a quote
We reply within 24 hours
Product Description

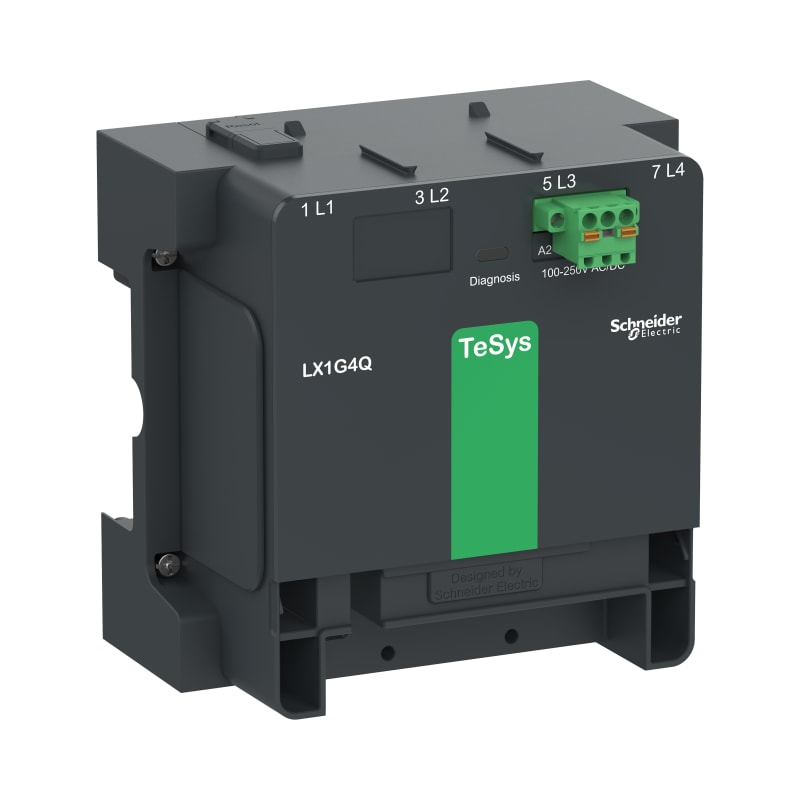

Schneider Electric LX1G4RKUEN Coil 100-250V AC / DC for 4-pole TeSys G265 / 300, standard.
Technical Specifications
- Manufacturer part number (MPN)
- LX1G4RKUEN
- EAN / GTIN
- 3606481946515
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Number of poles
- 4P
- Range
- TeSys
- Product or component type
- Contactor coil
- Device short name
- LX1G
- Poles description
- 4P
- Range compatibility
- TeSys G LX1G contactor coil
- Product compatibility
- LC1G265...330
- [Uc] control circuit voltage
- 100...250 V AC/DC 50/60 Hz
- Operating time
- 20...35 ms opening; 40...55 ms closing
- Mechanical durability
- 5 Mcycles
- Maximum operating rate
- 600 cyc/mn 60 °C
- Coil technology
- Built-in bidirectional peak limiting
- Control circuit voltage limits
- Operational: 0.8...1.1 Uc (at 60 °C); Drop-out: 0...0.45 Uc (at 60 °C)
- Connections - terminals
- Control circuit: push-in termination 1 cable(s) 0.2…2.5 mm² solid stranded without cable end sleeve 26 AWG...12 AWG; Control circuit: push-in termination 1 cable(s) 0.25…2.5 mm² flexible with cable end sleeve 24 AWG...14 AWG; Control circuit: push-in termination 2 cable(s) 0.5…1.0 mm² rigid or stranded with cable end sleeve 20 AWG...18 AWG
- Inrush power in VA
- 840 VA at 240 V AC, 60 Hz
- Inrush power in W
- 645.0 W DC
- Hold-in power consumption in VA
- 10.6 VA at 240 V AC, 60 Hz
- Hold-in power consumption in W
- 5.9 W for DC network
- IP degree of protection
- IP20 conforming to IEC 60529
- Operating altitude
- 3000 m without derating; 5000 m with derating factor
- Electromagnetic compatibility
- EMC immunity conforming to IEC 60947-4-1; Emission tests criteria A conforming to IEC 60947-4-1; Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3; Voltage dips and interruptions immunity test conforming to SEMI F47
- Standards
- EN/IEC 60947-4-1; UL 60947-4-1A; CSA C22.2 No 60947-4-1
- Pollution degree
- 3 conforming to IEC 60947-1
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -60…80 °C
- Permissible ambient air temperature around the device
- -40…70 °C at Uc
- Height
- 167.0 mm
- Width
- 185.0 mm
- Depth
- 93.0 mm
- Quantity per set
- 1
- Warranty (in months)
- 18
- Voltage type for actuating
- AC/DC
- Country of origin
- China
Standards & Compliance
- HS Code
- 8505.90
Cross References
- EAN 3606481946515
- SAP 1200587802
- Code 82974859
