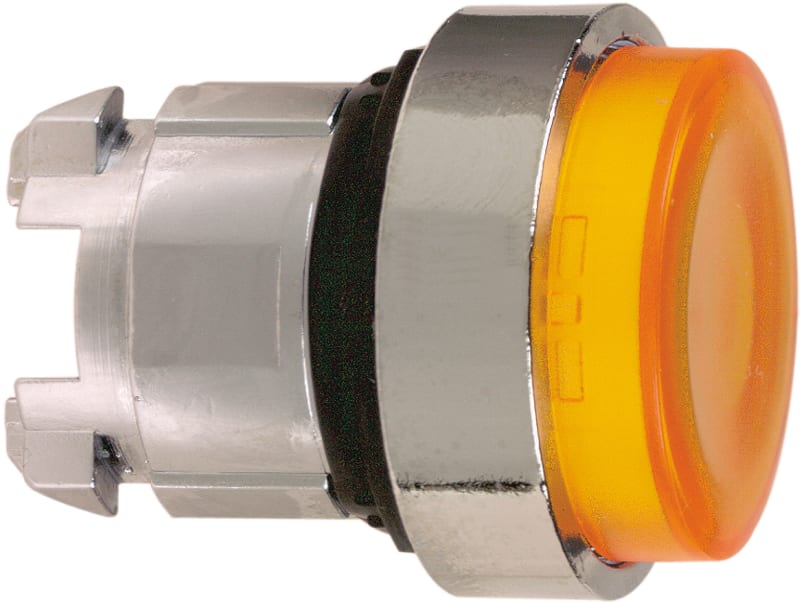

Schneider Electric Harmony XB4 Illuminated Push-Push Head, Projecting, Orange LED

Schneider Electric ZB4BH53 is a Harmony XB4 head for illuminated push-button with a projecting orange operator, push-push action and universal LED compatibility. The 22.5 mm mounting diameter unit uses a chromium-plated metal bezel and pairs with matching XB4 contact and light blocks. Rated IP67/IP69/IP69K per IEC 60529, with a mechanical life of 500,000 cycles over a −40 to 70 °C operating range.

Manufacturer part number (MPN)

ZB4BH53

EAN / GTIN

3389110890402

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for illuminated push-button

Product compatibility

Universal LED

Device short name

ZB4

Bezel material

Chromium plated metal

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

push-push

Operator profile

Orange projecting, unmarked

Cap/operator or lens colour

Orange

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

33 mm

Product weight

0.026 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

500000 cycles

Electrical composition code

M5 for <2 contacts using single blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Electrical shock protection class

Class I conforming to IEC 60536

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP69; IP69K; IP67 conforming to IEC 60529

Enclosure Type

UL type 4X/13

IK degree of protection

IK05 conforming to IEC 50102

Standards

IEC 60947-5-5; UL 508; JIS C8201-5-1; IEC 60947-1; IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-5-4; JIS C8201-1

Product certifications

CSA; LROS (Lloyds register of shipping); BV; UL listed; DNV

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

100

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Orange

Suitable for lighting

Yes

Number of command positions

1

Spring-return

No

Labelled

No

Type of button

High

Colour front ring

Chrome

With protective cover

No

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

Yes

HS Code

8538.90

• EAN 3389110890402
• SAP 1000061204
• Code 8547907
