Logic In/O-Expansion CARD

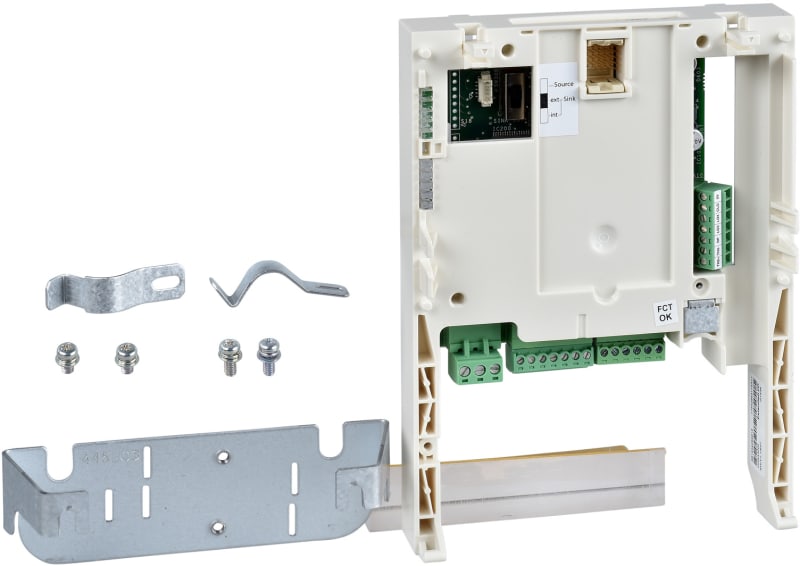

Schneider Electric VW3A3201 logic I/O extension card.

Manufacturer part number (MPN)

VW3A3201 EAN / GTIN: 3389118067103 Sales unit: pcs Package quantity: 7 pcs Product or component type: Logic I/O card Range compatibility: Altivar Lift; Altivar 71Q; Altivar 61; Altivar 71; Altivar 61Q Supply: Internal supply for reference potentiometer, 10.5 V DC (10…11 V) , <0.01 A, impedance: 1…10 kOhm for overload and short-circuit protection; Internal supply, 24 V DC (21…27 V) , <0.2 A for overload and short-circuit protection Discrete output number: 5 Discrete output type: (R3A, R3B, R3C) configurable relay logic; (LO1, LO2) assignable logic, sampling time: 1.5…2.5 ms, compatible with level 1 PLC Discrete output logic: (LO1, LO2) negative; (LO1, LO2) positive Discrete input number: 4 Discrete input type: (LI7...LI10) programmable, compatible with level 1 PLC, impedance: 3.5 kOhm, sampling time: 1.5…2.5 ms Discrete input logic: Negative (LI7...LI10), >= 16 V (state 0), = 11 V (state 1) Electrical durability: 100000 cycles for configurable relay logic Discrete output voltage: 24 V DC (voltage limits: 12...30 V) assignable logic Maximum output current: 0.2 A, assignable logic minimum switching current: 3 mA at 24 V DC for configurable relay logic Maximum switching current: Configurable relay logic 2 A at 250 V AC on inductive load, cos phi = 0.4 and L/R = 7 ms; Configurable relay logic 2 A at 30 V DC on inductive load, cos phi = 0.4 and L/R = 7 ms; Configurable relay logic 5 A at 250 V AC on resistive load, cos phi = 1; Configurable relay logic 5 A at 30 V DC on resistive load, cos phi = 1 PTC probe input: TH1+, TH1- trip resistance, impedance: 3 kOhm; TH1+, TH1- reset resistance, impedance: 1.8 Ohm; TH1+, TH1- short circuit protection, impedance: < 0.05 Ohm; TH1+, TH1- for 6 PTC probe, impedance: <= 1.5 Ohm Discrete input voltage: 24 V DC (voltage limits: <= 30 V) for programmable Electrical connection: Terminal, 1.5 mm² / 16 AWG, 0.25 N.m Product weight: 0.3 kg Number of Units in Package 1: 1 Number of Units in Package 2: 7 Country of origin: ID Warranty (in months): 18 Accessory: Yes Spare part: No

HS Code

8504.40

• EAN 3389118067103
• SAP 1000044609
• Code 8790135
