Schneider Electric

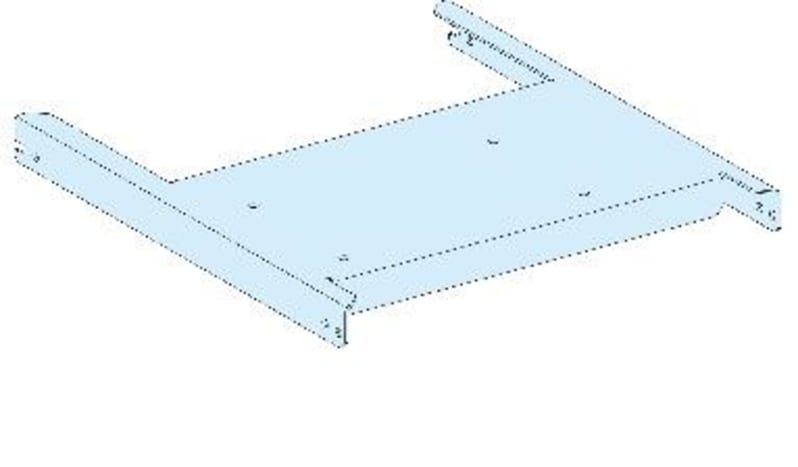

Mounting plate NS/MTZ1 withdrawable in 400 felt P
Part numberLVS03488EAN / GTIN3606481874573HS code7326.90
Enclosures
Mounting Plates
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03488 Mounting plate for NS/MTZ1-withdrawable-vertical mounting-3P/4P-PrismaSeT P-for 400mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03488
- EAN / GTIN
- 3606481874573
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 400 mm depth 400 mm
- Installed device
- ComPact: drawout NS1250 - control: toggle - vertical installation; ComPact: drawout NS1250 - control: direct front rotary handle - vertical installation; ComPact: drawout NS1250 - control: motor mechanism - vertical installation; ComPact: drawout NS1600 - control: toggle - vertical installation; ComPact: drawout NS1600 - control: direct front rotary handle - vertical installation; ComPact: drawout NS1600 - control: motor mechanism - vertical installation; ComPact: drawout NS630b...1000 - control: toggle - vertical installation; ComPact: drawout NS630b...1000 - control: direct front rotary handle - vertical installation; ComPact: drawout NS630b...1000 - control: motor mechanism - vertical installation; Masterpact: drawout NT06...10 - control: toggle - vertical installation; Masterpact: drawout NT12 - control: toggle - vertical installation; Masterpact: drawout NT16 - control: toggle - vertical installation
- Poles description
- 1 x 3P: drawout NS1250 vertical installation; 1 x 3P: drawout NS1600 vertical installation; 1 x 3P: drawout NS630b...1000 vertical installation; 1 x 3P: drawout NT06...10 vertical installation; 1 x 3P: drawout NT12 vertical installation; 1 x 3P: drawout NT16 vertical installation
- Number of vertical modules [50 mm]
- 36 module(s): NS1250, direct in 400 mm Widecubicle; 36 module(s): NS1600, direct in 400 mm Widecubicle; 36 module(s): NS630b...1000, direct in 400 mm Widecubicle; 36 module(s): NT06...10, front connection in 400 mm Widecubicle; 36 module(s): NT12, front connection in 400 mm Widecubicle; 36 module(s): NT16, front connection in 400 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 328 mm
- Height
- 30 mm
- Product weight
- 1.62 kg
- Functional unit
- 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout toggle vertical 3P 1 direct 36 1062.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout direct front rotary handle vertical 3P 1 direct 36 1062.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout motor mechanism vertical 3P 1 direct 36 1062.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 drawout toggle vertical 3P 1 direct 36 1062.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 drawout direct front rotary handle vertical 3P 1 direct 36 1062.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 drawout motor mechanism vertical 3P 1 direct 36 1062.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout toggle vertical 3P 1 direct 36 1062.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout direct front rotary handle vertical 3P 1 direct 36 1062.5 mm; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout motor mechanism vertical 3P 1 direct 36 1062.5 mm; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 drawout toggle vertical 3P 1 front connection 36 1062.5 mm; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT12 drawout toggle vertical 3P 1 front connection 36 1062.5 mm; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT16 drawout toggle vertical 3P 1 front connection 36 1062.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874573
- SAP 1200546691
- Code 82880782
Product Documentation
Document preview: Schneider Electric LVS03488 — OEM Product Page
More from Schneider Electric
Schneider Electric
Selector Switch Head L.3 POSITIONS RET/FROM V
ZB5AJ7
Schneider Electric
Flexible 40A 2M 3L+3L+N W
KBB40DF4420W
Schneider Electric
Push-button flush red with text (ZB5FA432)
Schneider Electric
Schneider Electric flush mounted yellow projecting pushbutton head ZB5FL5
Schneider Electric

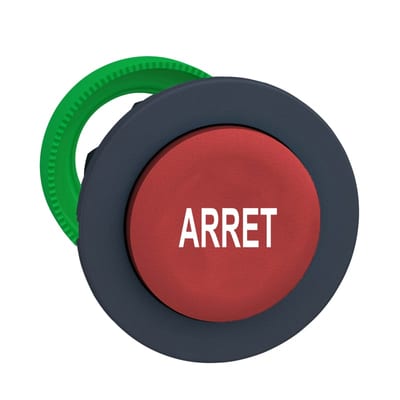

Push-button flush red with text (ZB5FL433)
Schneider Electric

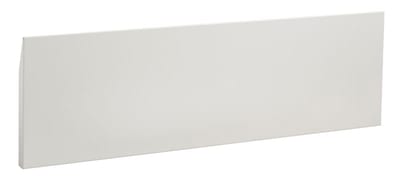

CEILING-IP31-FOR PrismaSeT G-B850MM
LVS08836
Schneider Electric

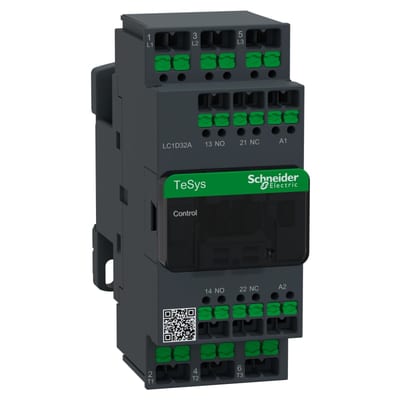

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 32A, 240V AC 50/60Hz coil, snap-in terminals LC1D32AU7
