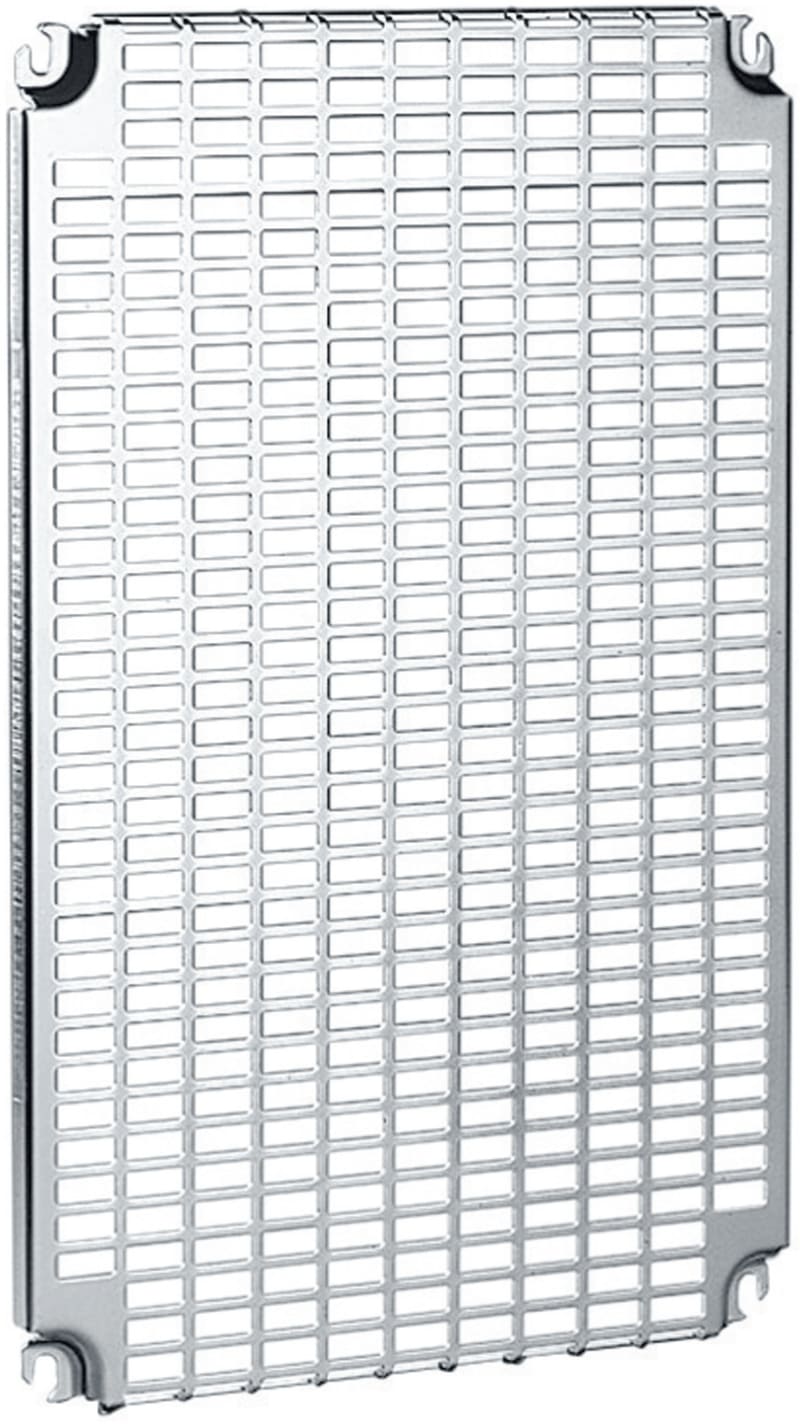

Schneider Electric Monobloc perforated plates H800XW600MM with universal perforations 11X26MM NSYMR86
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMR86 MOUNTING PLATE TELEQUICK 800X600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMR86
- EAN / GTIN
- 3606480183768
- Sales unit
- pcs
- Dimensions
- 800×600 mm
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 800 mm W: 600 mm ; - H: 800 mm W: 1200 mm
- Mounting location
- Step slide; Direct fixing on backstuds
- Mounting plate description
- Telequick perforated
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLM
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Zinc coated
- Fixing mode
- Screwed on backstuds - screw type M8; By fixing element
- Height
- 750 mm
- Width
- 551 mm
- Depth
- 15 mm
- thickness
- 2 mm
- Product weight
- 3.16 kg
- Number of slots
- 867
- Variant particularity
- With enclosures H800 x W1200; Installation in rear of enclosure
- Cut-out dimensions
- 11 x 26 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 126
- Country of origin
- IN
- Warranty (in months)
- 18
- Perforated
- Yes
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480183768
- SAP 1000317827
- Code 8823494
Product Documentation
