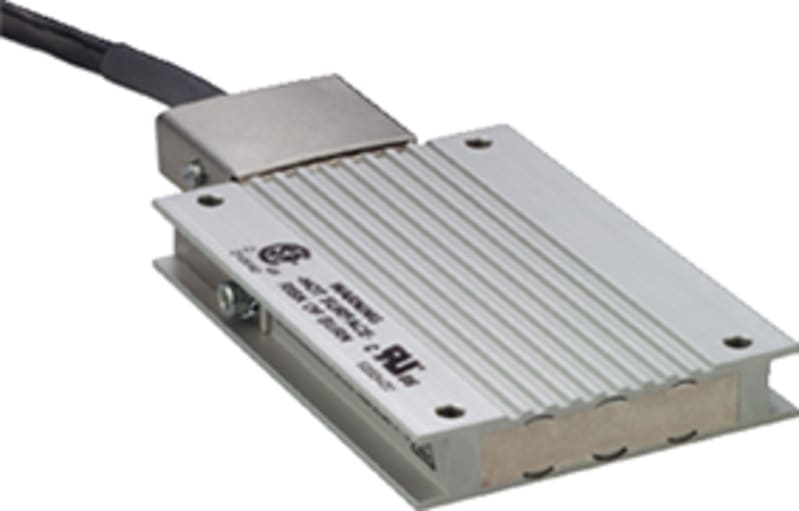

Schneider Electric braking resistor - 100 Ohm - 100 W - cable 3 m - IP65 VW3A7608R30
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7608R30 Braking resistor IP65 100Ohm 100W 3M.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7608R30
- EAN / GTIN
- 3389119210713
- Sales unit
- pcs
- IP rating
- IP65
- Resistance
- 100 Ω
- Range of product
- Lexium; Altivar
- Range compatibility
- Lexium 52; Lexium 15; Altivar Machine ATV320; Lexium 32i; Lexium 32; Altivar 32; Easy Altivar 310L; Easy Lexium 16
- Product compatibility
- ATV32H018M2; ATV32H037M2; ATV32H037N4; ATV32H055M2; ATV32H055N4; ATV32H075M2; ATV32H075N4; ATV32HU11N4; ATV32HU15N4; ATV32HU22N4; Variable speed drive ATV320 at 0.18 kW, 200...240 V, single phase; Variable speed drive ATV320 at 0.37 kW, 200...240 V, single phase; Variable speed drive ATV320 at 0.55 kW, 200...240 V, single phase; Variable speed drive ATV320 at 0.75 kW, 200...240 V, single phase; Variable speed drive ATV320 at 0.37 kW, 380...500 V, three phase; Variable speed drive ATV320 at 0.55 kW, 380...500 V, three phase; Variable speed drive ATV320 at 0.75 kW, 380...500 V, three phase; Variable speed drive ATV320 at 1.1 kW, 380...500 V, three phase; Variable speed drive ATV320 at 1.5 kW, 380...500 V, three phase; Variable speed drive ATV320 at 2.2 kW, 380...500 V, three phase; Variable speed drive ATV320 at 0.75 kW, 525...600 V, three phase; Variable speed drive ATV320 at 1.5 kW, 525...600 V, three phase; Variable speed drive ATV320 at 2.2 kW, 525...600 V, three phase; Variable speed drive ATV310L at 0.75 kW; Variable speed drive ATV310L at 1.5 kW; Variable speed drive ATV310L at 2.2 kW; Variable speed drive ATV310L at 3.0 kW; Variable speed drive ATV310L at 4.0 kW; Variable speed drive ATV310L at 5.5 kW; Motion servo drive LXM16D at 0.1 kW, 200...230 V, single phase; Motion servo drive LXM16D at 0.2 kW, 200...230 V, single phase; Motion servo drive LXM16D at 0.4 kW, 200...230 V, single phase; Motion servo drive LXM16D at 0.75 kW, 200...230 V, single phase; Motion servo drive LXM16D at 1 kW, 200...230 V, single phase; Motion servo drive LXM16D at 1.5 kW, 200...230 V, single phase
- Product or component type
- Braking resistor
- Ohmic value
- 100 Ohm
- Energy peak
- 2700 J at 480 V; 3000 J at 400 V; 4500 J at 230 V; 4400 J at 115 V
- Average power available
- 25 W at 50 °C
- Continuous power
- 100 W
- Protection type
- Thermal protection via the servo drive
- Product weight
- 0.76 kg
- Cable length
- 3 m
- IP degree of protection
- IP65
- Ambient air temperature for storage
- -25…85 °C
- Ambient air temperature for operation
- 0…50 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 3389119210713
- SAP 1000528233
- Code 8885242
Product Documentation
