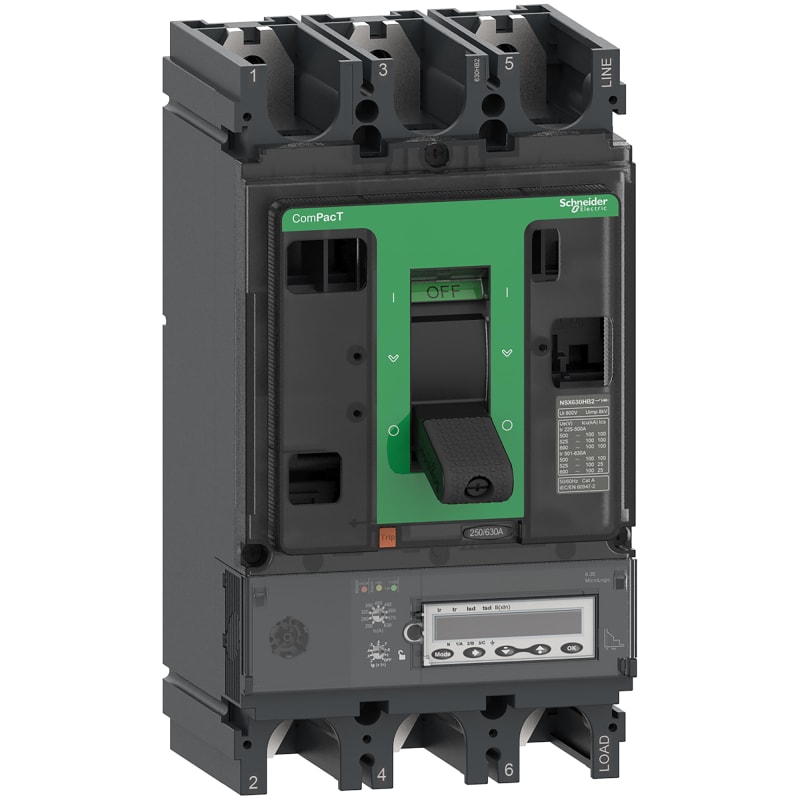

Schneider Electric Circuit breaker, ComPacT NSX400R, 200KA/415VAC, 3 poles, MicroLogic 6.3E-M trip unit 320A C40R36M320

Schneider Electric C40R36M320 Circuit breaker ComPacT NSX400R-motor protection-measurement-Micrologic 6.3EM 320A 3P 320A 200kA/440VAC-45kA/690VAC.

Manufacturer part number (MPN)

C40R36M320

EAN / GTIN

3606481988874

HS code

8536.90

Sales unit

pcs

Number of poles

3P

Range

ComPacT

Product name

ComPacT NSX

Device short name

NSX400R

Product or component type

Circuit breaker

Device application

Distribution

Poles description

3P

Protected poles description

3D

[In] rated current

320 A at 65 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Utilisation category

Category A

Breaking capacity

200 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 200 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 200 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 80 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 65 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2; 45 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Breaking capacity code

R 200 kA 415 V AC

Trip unit name

MicroLogic 6.3 E-M

Trip unit technology

Electronic

Trip unit protection functions

LSIG

Control type

Toggle

Circuit breaker mounting mode

Fixed

[Ui] rated insulation voltage

800 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

[Ics] rated service breaking capacity

200 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 200 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 200 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2; 80 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2; 65 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2; 45 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Mechanical durability

15000 cycles

Electrical durability

12000 cycles at 440 V In/2; 6000 cycles at 440 V In; 6000 cycles at 690 V In/2; 3000 cycles at 690 V In

Power dissipation per pole

19.2 W

Mounting support

Backplate

Mounting position

Horizontal and vertical; Flat on the back

Upside connection

Front

Downside connection

Front

Connection pitch

45 mm

Protection type

L : for overload protection (long time); So : for short time short-circuit protection; I : for instantaneous short-circuit protection; G : for ground fault protection

Trip unit rating

320 A at 65 °C

Motor tripping class

10; 20; 30; 5

Complementary motor protection

Stalled rotor; Phase unbalance; Protracted starting time; Underload

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range

160...320 A

Long-time protection delay adjustment type tr

Adjustable

[tr] long-time delay adjustment range

120 s at 1.5 x Ir for trip class 5; 6.5 s at 6 x Ir for trip class 5; 5 s at 7.2 x Ir for trip class 5; 240 s at 1.5 x Ir for trip class 10; 13.5 s at 6 x Ir for trip class 10; 10 s at 7.2 x Ir for trip class 10; 480 s at 1.5 x Ir for trip class 20; 26 s at 6 x Ir for trip class 20; 20 s at 7.2 x Ir for trip class 20; 720 s at 1.5 x Ir for trip class 30; 38 s at 6 x Ir for trip class 30; 30 s at 7.2 x Ir for trip class 30

Thermal memory

20 minutes before and after tripping

Short-time protection pick-up adjustment type Isd

Adjustable

[Isd] Short-time protection pick-up adjustment range

5...13 x Ir

Short-time protection delay adjustment type tsd

Fixed

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

4800 A

Ground-fault protection pick-up adjustment type Ig

Adjustable 9 settings

[Ig] ground-fault pick-up adjustment range

0.6...1 x In for In = 25 A; 0.3...1 x In for In = 50 A; 0.2...1 x In for In > 50 A; Ig enable on/off

Ground-fault protection time delay adjustment type tg

Adjustable 5 settings

[tg] Ground-fault time delay adjustment range

0…0.4 s

Earth-leakage protection

Without

Zone selective interlocking ZSI

With

Number of slots

6 slot(s)

Local signalling

Flashing LED (green) for ready to operate; LED 95 % Ith (red) for temperature over set point

Display type

LCD display

Type of measurement

Energy meter

Communication of data

Energy metering; Protection and alarm settings; Thermal image function; Time-stamped histories and event tables; Power quality; Demand current and power; Maintenance indicators; Phase sequence; Maximeters/minimeters; Instantaneous and demand values

Width (W)

140 mm

Height (H)

255 mm

Depth (D)

110 mm

Product weight

6.05 kg

Standards

EN/IEC 60947-2

Overvoltage category

III

Electrical shock protection class

Class II on front face

Pollution degree

3 conforming to IEC 60664-1

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Relative humidity

0…95 %

Operating altitude

0...2000 m without derating; 2000 m...5000 m with derating

Number of Units in Package 1

1

Warranty (in months)

18

HS Code

8536.90
