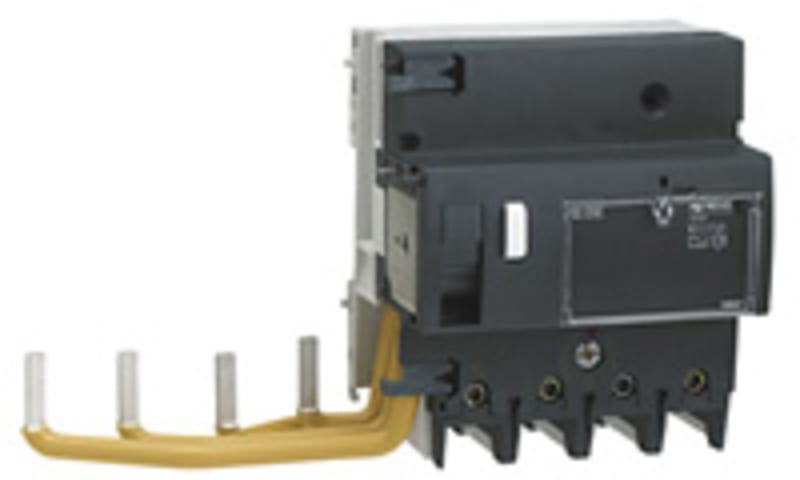

VIGI NG125 4-63 300 MA
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 19034 Vigi NG125 4-63 300 mA.
Technical Specifications
- Manufacturer part number (MPN)
- 19034
- EAN / GTIN
- 3303430190349
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Nominal voltage
- 230–415 V
- Nominal current
- 63 A
- Rated fault current adjustable
- No
- Rated fault current
- 0.3 A
- Delay adjustable
- No
- Number of poles
- 4
- Leakage current type
- A
- Surge current capacity
- 5 kA
- Frequency
- 50/60 Hz
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Anti-nuisance tripping version
- No
- With interlocking device
- Yes
- Degree of protection (IP)
- IP20
- Pollution degree
- 3
- Ambient temperature during operating
- -25–60 °C
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3303430190349
- SAP 1000013490
- Code 8108842
