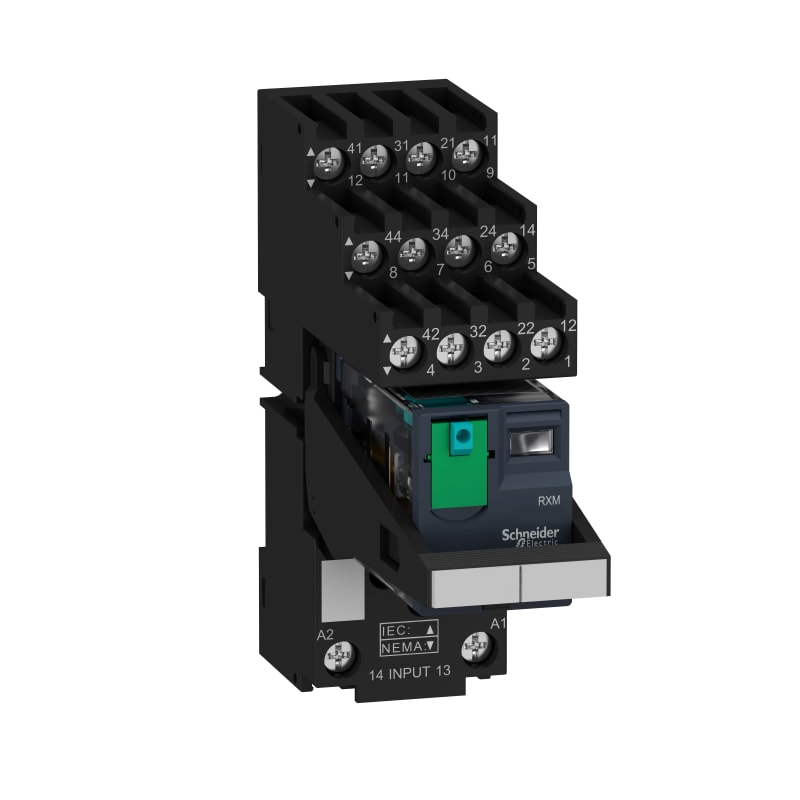

RXM relay with plinth 6A 24VDC

Schneider Electric RXM4AB2BDPVS Zelio RXM plug-in relay in plinth with test button and LED - 4C/O 6A 24VDC supply.

Manufacturer part number (MPN)

RXM4AB2BDPVS EAN / GTIN: 3606489563189 HS code: 8536.90 Sales unit: pcs Package quantity: 30 pcs Voltage: 24 V DC Rated current: 6 A Range of product: Harmony Electromechanical Relays Series name: RXM series Product or component type: Pre-assembled plug-in relay with socket Relay type: Miniature relay Contacts type and composition: 4 C/O status LED: With Control type: Lockable test button [Uc] control circuit voltage: 24 V DC [Ithe] conventional enclosed thermal current: 6 A Continuous output current: 5 A [Uimp] rated impulse withstand voltage: 2.5 kV during 1.2/50 µs [Ie] rated operational current: 3 A at 28 V (DC) NC conforming to IEC; 3 A at 250 V (AC) NC conforming to IEC; 6 A at 28 V (DC) NO conforming to IEC; 6 A at 250 V (AC) NO conforming to IEC; 6 A at 277 V (AC) conforming to UL; 8 A at 30 V (DC) conforming to UL minimum switching current: 10 mA minimum switching voltage: 17 V minimum switching capacity: 170 mW at 10 mA, 17 V Electrical durability: 100000 cycles for resistive load Rated operational voltage limits: 19.2...26.4 V DC [Ui] rated insulation voltage: 250 V conforming to IEC Maximum switching voltage: 250 V Drop-out voltage threshold: >= 0.1 Uc DC Load current: 6 A at 250 V AC; 6 A at 28 V DC Operating time: 20 ms Maximum switching capacity: 1500 VA/168 W AC/DC Average resistance: 650 Ohm at 20 °C +/- 10 % Average coil consumption: 0.9 W, DC Mechanical durability: 10000000 cycles Safety reliability data: B10d = 100000 Operating rate: <= 1200 cycles/hour under load; <= 18000 cycles/hour no-load Utilisation coefficient: 20 % CAD overall width: 26.9 mm CAD overall height: 82.8 mm CAD overall depth: 80.35 mm torque value: 1 N.m Reset time: 20 ms Contact terminal arrangement: Separate Connections - terminals: Connector, 1 x 0.25...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end; Connector, 2 x 0.25...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Connector, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Connector, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end Dielectric strength: 1300 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with basic insulation; 2000 V AC between poles with basic insulation Compatibility code: RXM Protection category: RT I Pollution degree: 2 Operating position: Any position Test levels: Level A group mounting Device presentation: Complete product Sale per indivisible quantity: 30 Contacts material: AgNi Shape of pin: Flat (faston type) Product weight: 0.105 kg Ambient air temperature for operation: -40…55 °C IP degree of protection: IP20 conforming to IEC 60529 Standards: UL 508; IEC 61810-1; CSA C22.2 No 14; IEC 61984 Product certifications: UL; Lloyd's; CE; CSA; GOST; IECEE CB Scheme Ambient air temperature for storage: -40…85 °C Vibration resistance: 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation; 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating Shock resistance: 10 gn for in operation; 30 gn for not operating Country of origin: ID Warranty (in months): 18

HS Code

8536.90

• EAN 3606489563189
• SAP 1200271566
• Code 82235735
