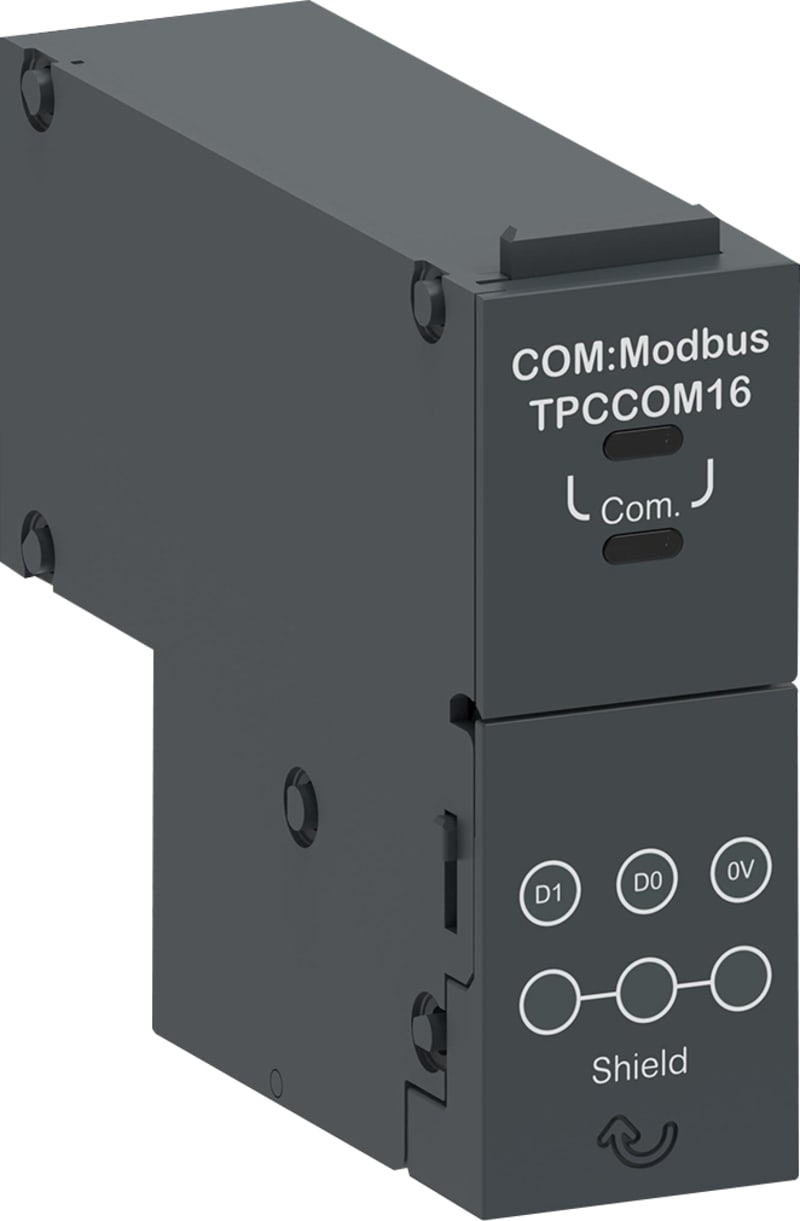

Schneider Electric function module, TransferPacT, Modbus RTU(Serial Port), plug-in TPCCOM16

Schneider Electric TPCCOM16 Function Module for TransferPacT Active-Modbus RS485 module-plug-in.

Manufacturer part number (MPN)

TPCCOM16

EAN / GTIN

3606481066060

Sales unit

pcs

Package quantity

20 pcs

Product or component type

Modbus RS485 communication module

Device application

Communication

Bus type

Modbus

Function available

Modbus communication module

Physical interface

RS485

[Ui] rated insulation voltage

30 V DC

Communication network type

Modbus, Modbus RTU even parity, at 4800 bauds; Modbus, Modbus RTU even parity, at 9600 bauds; Modbus, Modbus RTU even parity, at 19200 bauds

Addressing

0...248

Type of cable

Shielded twisted pair 1.5 mm²

Tightening torque

0.6 N.m +/- 0.1 N.m

mounting mode

Plug-in

Mounting position

In square

Localisation on device

Front face

Connections - terminals

Screw-clamp terminals

Height

56.5 mm

Depth

69 mm

Width

20 mm

Product weight

40 g

Accessory / separate part category

Communication accessories

IP degree of protection

IP20

Pollution degree

3

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.650 cm

Package 1 Width

6.900 cm

Package 1 Length

2.000 cm

Package 1 Weight

92.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

20

Package 2 Height

15 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

2.100 kg

Country of origin

CN

Warranty (in months)

18

Screened

No

Connection type connection 1

Plug

Connection type connection 2

Plug

With terminal resistor

No

HS Code

8517.62
