Mushroom Push-button head Black Ø40mm
Pricing
Request a quote
We reply within 24 hours
Product Description

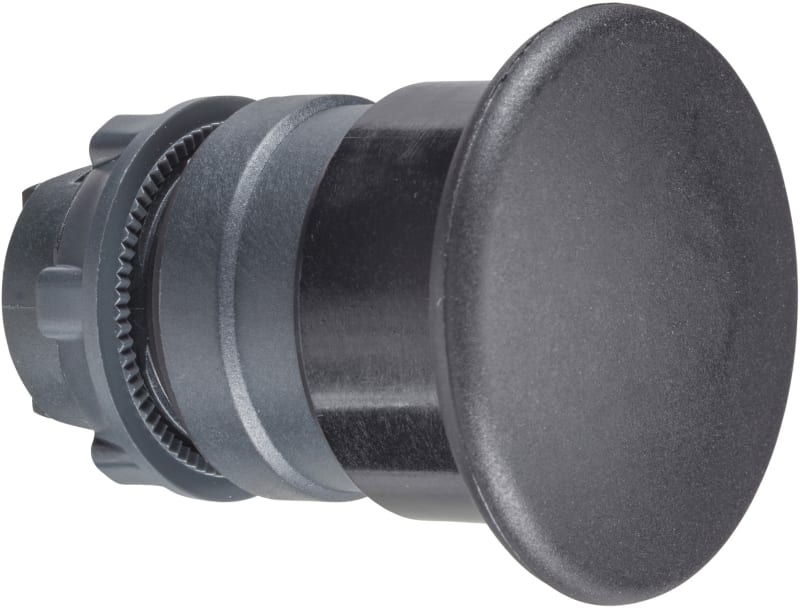

Schneider Electric ZB5AC2 Mushroom button Black Ø40mm.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AC2
- EAN / GTIN
- 3389110904864
- Sales unit
- pcs
- Package quantity
- 42 pcs
- Diameter
- 40 mm
- Range of product
- Harmony XB5
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Head type
- Standard
- Mounting diameter
- 22 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Black mushroom Ø 40 mm, unmarked
- Device presentation
- Basic element
- CAD overall width
- 40 mm
- CAD overall height
- 40 mm
- CAD overall depth
- 52 mm
- Product weight
- 0.046 kg
- Mechanical durability
- 5000000 cycles
- Station name
- XALD 1 cut-out; XALK 1 cut-out
- Electrical composition code
- C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single bloc
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110904864
- SAP 1000024572
- Code 8214177
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Residual current breaker with overcur. prot. (RCBO), ACTI9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A-SI type, 30MA A9D33625
Schneider Electric
Schneider Electric Variable speed drive, Altivar Machine ATV320, 0.75 kW, 200...240 V, 1 phase, enclosed ATV320U07M2W
Schneider Electric
L382 Sentr.pl S1014PT PH
1510592
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 iDPN N Vigi, 1P+N, 16A, B curve, 6000A, A type, 30MA A9D56616
Schneider Electric
Schneider Electric PanelSeT SM wall mounting fixing support - set of 2 NSYSMWFIX
Schneider Electric
Key lock 2233X split door
NSYML23
Schneider Electric
Schneider Electric variable speed drive ATV630 - 18.5KW/25HP - 200...240V - IP21/UL type 1 ATV630D18M3
Schneider Electric
Schneider Electric passive connection sub-base ABE7 - 16 inputs - fuses - Led - insulator ABE7H16S43
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZB5AC2?
- ZB5AC2 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ZB5AC2.
- What is the HS code for ZB5AC2?
- The customs tariff (HS) code for ZB5AC2 is 8538.90.
- Who manufactures ZB5AC2?
- ZB5AC2 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for ZB5AC2?
- Yes — the ZB5AC2 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZB5AC2?
- The minimum order quantity is 1.
- Is ZB5AC2 available?
- Yes — ZB5AC2 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
