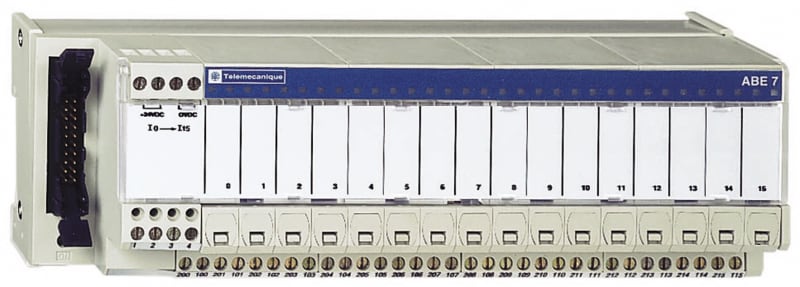

Schneider Electric passive connection sub-base ABE7 - 16 inputs - fuses - Led - insulator ABE7H16S43

Schneider Electric ABE7H16S43 Advantys Telefast ABE7 - Passive discrete In/O sub-base.

Manufacturer part number (MPN)

ABE7H16S43

EAN / GTIN

3389110644524

HS code

8536.90

Sales unit

pcs

Package quantity

16 pcs

Range of product

Modicon ABE7

Product or component type

Passive discrete I/O sub-base

Sub-base type

Input sub-base

[Us] rated supply voltage

19...30 V conforming to IEC 61131-2

Number of channels

16

Number of terminal per channel

2

Connections - terminals

Screw type terminals, 1 x 0.09...1 x 1.5 mm² (28 AWG...16 AWG) flexible with cable end; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...12 AWG) solid; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...14 AWG) flexible without cable end; Screw type terminals, 2 x 0.09...2 x 0.75 mm² (28 AWG...20 AWG) flexible with cable end; Screw type terminals, 2 x 0.2...2 x 2.5 mm² (24 AWG...14 AWG) solid

Channel additional information

1 switch disconnector per channel

supply voltage type

DC

Number of horizontal rows

1

Status LED

1 LED per channel (green) channel status; 1 LED per channel (red) blown fuse indication; 1 LED (green) power ON

Polarity distribution

24 V

Short-circuit protection

1 A internal fuse, 5 x 20 mm, fast blow (PLC end); 0.125 A fuse per channel, 5 x 20 mm, fast blow (output circuit)

Connector type

HE-10

Pin number

20 pins

Fixing mode

By clips (35 mm symmetrical DIN rail); By screws (solid plate with fixing kit)

Maximum supply current

1.8 A

Current per channel

0.125 A

Maximum current per output common

1.8 A

Voltage drop on power supply fuse

0.3 V

Maximum voltage drop per channel

0.1 V

[Ui] rated insulation voltage

2000 V

Installation category

II conforming to IEC 60664-1

Tightening torque

0.6 N.m with flat Ø 3.5 mm screwdriver

Width

206 mm

Height

77 mm

Depth

58 mm

Product weight

0.64 kg

Product certifications

DNV; CSA; UL; GL; EAC

IP degree of protection

IP2X conforming to IEC 60529

Resistance to incandescent wire

750 °C conforming to IEC 60695-2-11

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6

Resistance to electrostatic discharge

4 kV (contact) level 3 conforming to IEC 61000-4-2; 8 kV (air) level 3 conforming to IEC 61000-4-2

Resistance to radiated fields

10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3

Resistance to fast transients

2 kV level 3 conforming to IEC 61000-4-4

Ambient air temperature for operation

-5…60 °C conforming to IEC 61131-2

Ambient air temperature for storage

-40…80 °C conforming to IEC 61131-2

Pollution degree

2 conforming to IEC 60664-1

Number of Units in Package 1

1

Number of Units in Package 2

16

Country of origin

LV

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110644524
• SAP 1000253716
• Code 81142178
