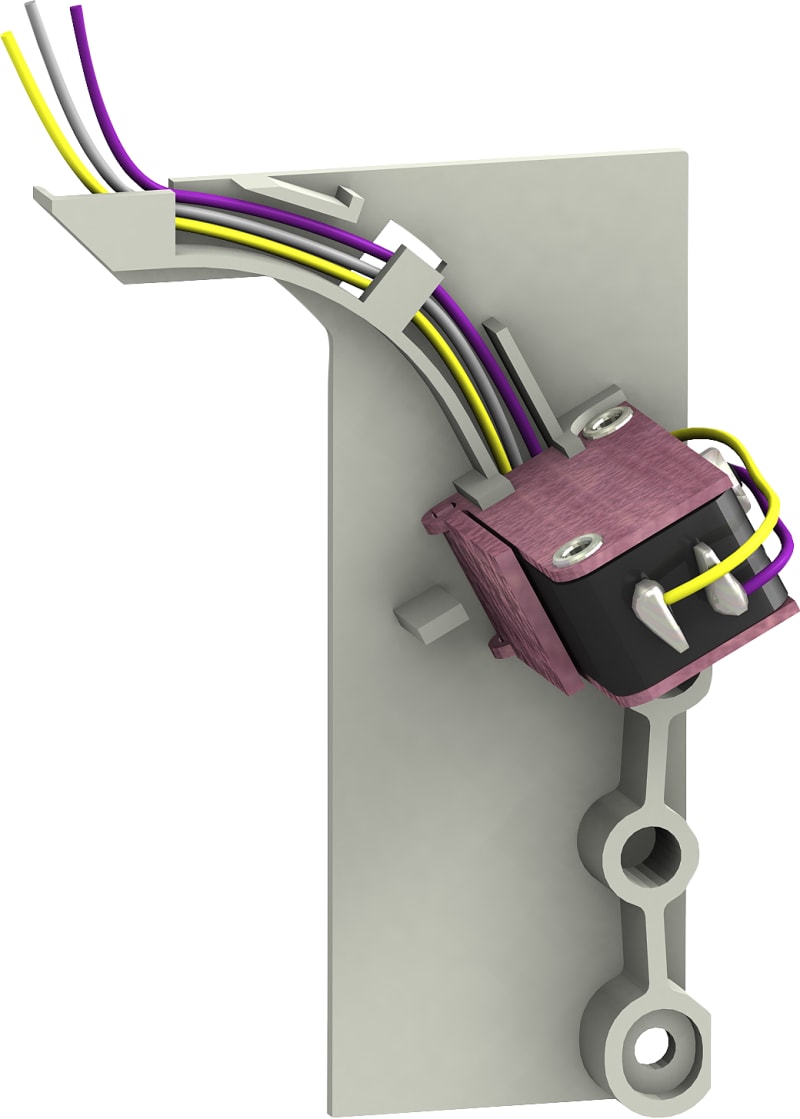

Schneider Electric standard early break contact, ComPact NSX400 to NSX630, rotary handle position CAO, 1 changeover contact type LV432605
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV432605 Early-break kont. f/dreieh.x1.
Technical Specifications
- Manufacturer part number (MPN)
- LV432605 EAN / GTIN: 3606480020452 Sales unit: pcs Package quantity: 45 pcs Range of product: ComPact NSX400...630; ComPact NSX400...630 DC Range: ComPact Device short name: early-break contact Product or component type: Auxiliary contact Device application: Control Range compatibility: ComPact ComPact NSX400; ComPact ComPact NSX630; ComPact Compact NSX400 DC; ComPact Compact NSX630 DC; PowerPact PowerPact L Auxiliary contacts type: Standard Auxiliary contacts operation: Early-break mounting mode: Drawout [Ith] conventional free air thermal current: 6 A [Ie] rated operational current: AC-12: 6 A at 110 V AC 50/60 Hz; AC-12: 6 A at 220/240 V AC 50/60 Hz; AC-12: 6 A at 24 V AC 50/60 Hz; AC-12: 6 A at 380/440 V AC 50/60 Hz; AC-12: 6 A at 48 V AC 50/60 Hz; AC-12: 6 A at 480 V AC 50/60 Hz; AC-12: 6 A at 660/690 V AC 50/60 Hz; AC-15: 0.1 A at 660/690 V AC 50/60 Hz; AC-15: 1.5 A at 480 V AC 50/60 Hz; AC-15: 2 A at 380/440 V AC 50/60 Hz; AC-15: 4 A at 220/240 V AC 50/60 Hz; AC-15: 5 A at 110 V AC 50/60 Hz; AC-15: 6 A at 24 V AC 50/60 Hz; AC-15: 6 A at 48 V AC 50/60 Hz; DC-12: 0.3 A at 250 V DC; DC-12: 0.6 A at 110 V DC; DC-12: 2.5 A at 48 V DC; DC-12: 6 A at 24 V DC; DC-14: 0.03 A at 250 V DC; DC-14: 0.05 A at 110 V DC; DC-14: 0.2 A at 48 V DC; DC-14: 1 A at 24 V DC minimum load: 100 mA at 24 V DC Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 4.000 cm Package 1 Width: 6.300 cm Package 1 Length: 8.100 cm Package 1 Weight: 50.000 g Unit Type of Package 2: S03 Number of Units in Package 2: 108 Package 2 Height: 30.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 5.800 kg Country of origin: FR Warranty (in months): 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606480020452
- SAP 1000092791
- Code 8907935
Product Documentation
