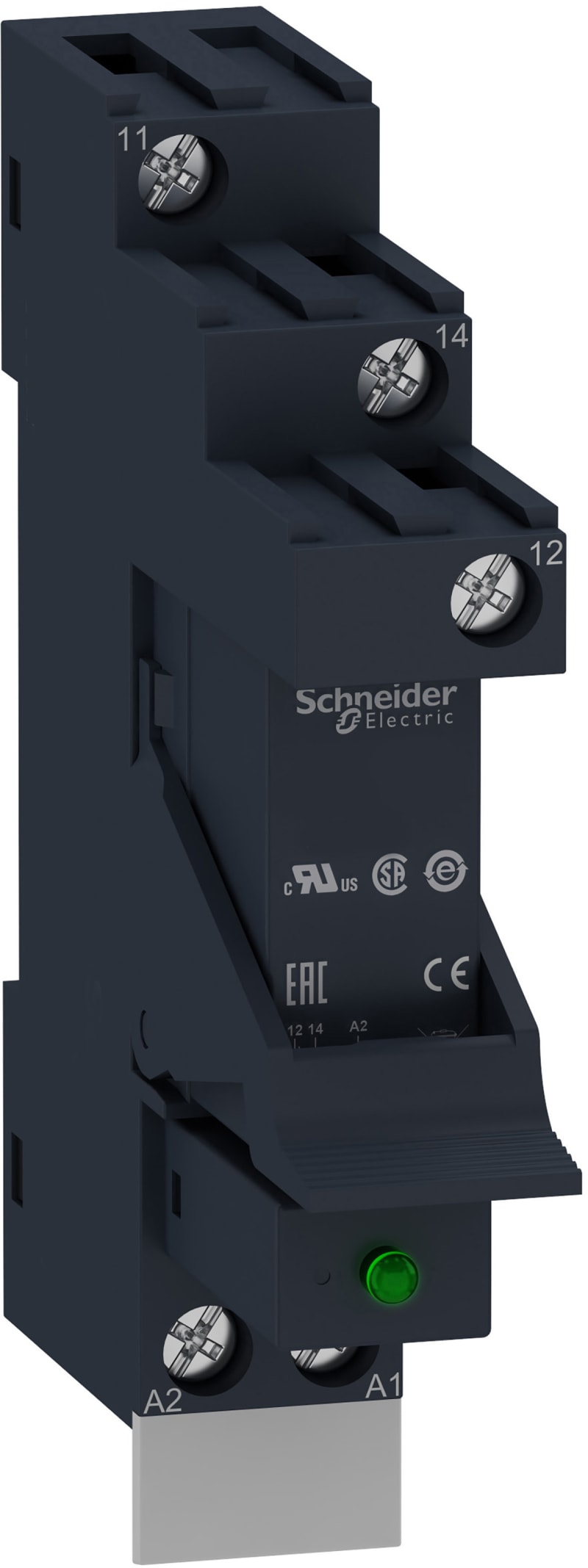

Schneider Electric Harmony, Interface plug-in relay pre-assembled, 12 A, 1 CO, with LED, with protection circuit, 24 V DC RSB1A120BDPV

Schneider Electric RSB1A120BDPV Zelio RSB plug-in relay in plinth with diode and sign - 1C/O 12A 24VDC supply.

Manufacturer part number (MPN)

RSB1A120BDPV EAN / GTIN: 3606489562687 HS code: 8536.90 Sales unit: pcs Package quantity: 30 pcs Voltage: 24 V DC Range of product: Harmony Electromechanical Relays Series name: RSB series Product or component type: Pre-assembled plug-in relay with socket Relay type: Interface relay Contacts type and composition: 1 C/O Contact operation: Standard status LED: With [Uc] control circuit voltage: 24 V DC Control type: Without lockable test button [Ithe] conventional enclosed thermal current: 12 A at -40…40 °C Average resistance: 1440 Ohm network: DC at 20 °C +/- 10 % [Ue] rated operational voltage: 19.2...26.4 V DC [Uimp] rated impulse withstand voltage: 3.6 kV conforming to IEC 61000-4-5 [Ie] rated operational current: 12 A (AC-1/DC-1) NO conforming to IEC; 6 A (AC-1/DC-1) NC conforming to IEC [Ui] rated insulation voltage: 400 V conforming to IEC 60947 Maximum switching voltage: 300 V DC conforming to IEC Drop-out voltage threshold: >= 0.1 Uc DC Load current: 12 A at 250 V AC; 12 A at 28 V DC minimum switching current: 10 mA Maximum switching capacity: 3000 VA AC; 336 W DC minimum switching voltage: 12 V minimum switching capacity: 120 mW at 10 mA, 12 V Operating time: 20 ms operating; 20 ms reset Mechanical durability: 30000000 cycles Electrical durability: 100000 cycles, 12 A at 250 V, AC-1 NO; 100000 cycles, 6 A at 250 V, AC-1 NC Safety reliability data: B10d = 100000 Operating rate: <= 600 cycles/hour under load; <= 18000 cycles/hour no-load Average coil consumption: 0.45 W DC Contact terminal arrangement: Separate Connections - terminals: Connector, 1 x 0.25...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end; Connector, 2 x 0.25...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Connector, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Connector, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end torque value: 0.8 N.m; 0.8 N.m Protection category: RT I Operating position: Any position Test levels: Level A group mounting Device presentation: Complete product Sale per indivisible quantity: 30 Contacts material: Silver alloy (AgNi) Shape of pin: Flat (PCB type) Product weight: 0.050 kg Compatibility code: RSB Dielectric strength: 1000 V AC between contacts; 5000 V AC between coil and contact Vibration resistance: +/- 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6 IP degree of protection: IP20 conforming to IEC 60529 Ambient air temperature for operation: -40…85 °C (DC) Standards: IEC 61810-1; CSA C22.2 No 14; UL 508; IEC 61984 Product certifications: CE; UL; CSA; EAC Ambient air temperature for storage: -40…85 °C Shock resistance: 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27; 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 Country of origin: ID Warranty (in months): 18

HS Code

8536.90

• EAN 3606489562687
• SAP 1200271532
• Code 82235744
