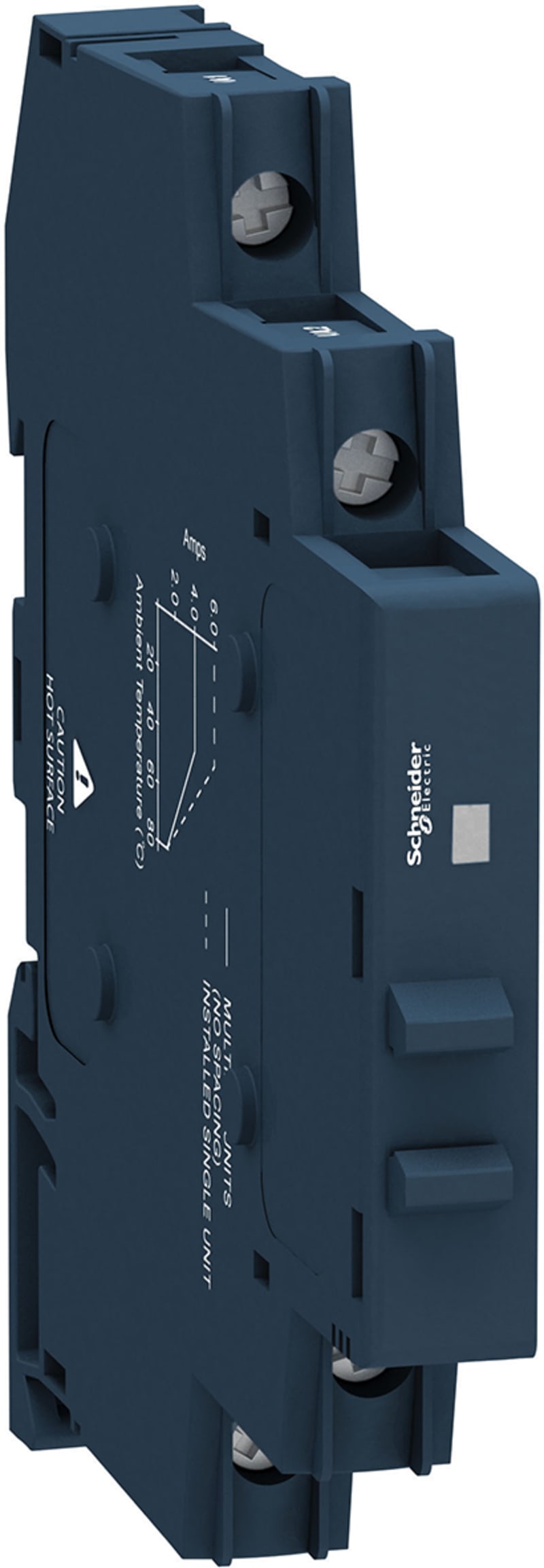

Schneider Electric Solid state modular relay, 6 A, DC swtching, input 4...32 V DC, output 1…100 V DC SSM1D36BD

Schneider Electric SSM1D36BD 1 phase SSR 1-100VDC 6A.

Manufacturer part number (MPN)

SSM1D36BD EAN / GTIN: 3606480579356 Sales unit: pcs Package quantity: 96 pcs Rated current: 6 A Range of product: Harmony Solid State Relays Device short name: SSM Product or component type: Modular DIN rail relay Number of channels: 1 Number of phases: 1 phase Output switching mode: DC switching Product configuration type: Relay configuration Mounting support: Symmetrical DIN rail [In] rated current: 6 A Output voltage: 1...100 V DC [Uc] control circuit voltage: 4...32 V DC Tightening torque: 0.5...0.8 N.m for input; 0.5...0.8 N.m for output Connections - terminals: Screw terminals: 1 x 0.3...1 x 1.5 mm², (22 AWG...16 AWG) for input; Screw terminals: 1 x 0.3...1 x 2.5 mm², (22 AWG...14 AWG) for output maximum capacitance: 10 pF for input/output Insulation resistance: 1000 MOhm at 500 V DC Local signalling: LED (green) for input status minimum switching voltage: 4 V DC turn-on Maximum switching voltage: 1 V DC turn-off input current: 8…11 mA Solid state output type: Mosfet output; DC switching Load current: 0.0025…6 A transient overvoltage: 100 V Surge current: 60 A for 10 ms Maximum voltage drop: <0.6 V on-state Resistance: 0.1 Ohm on-state Maximum leakage current: 0.1 mA off-state Response time: 1.7 ms (turn-on); 0.3 ms (turn-off) Overvoltage category: III Width: 11 mm Height: 90.3 mm test button: Without test button Depth: 83.7 mm Product weight: 0.05 kg Device presentation: Complete product Flame retardance: V0 conforming to UL 94 Dielectric strength: 4 kV DC for input/output; 4 kV DC for input or output to case Pollution degree: 2 Standards: IEC 62314; IEC 61000; IEC 60950-1 Product certifications: UL; CSA Marking: CE IP degree of protection: IP20 Ambient air temperature for operation: -30…80 °C Ambient air temperature for storage: -30…100 °C Number of Units in Package 1: 1 Number of Units in Package 2: 96 Country of origin: MX Warranty (in months): 18 Voltage type for actuating: DC Suitable for distribution board: Yes Switching at zero-crossing: No

HS Code

8536.49

• EAN 3606480579356
• SAP 1000665048
• Code 8251609
