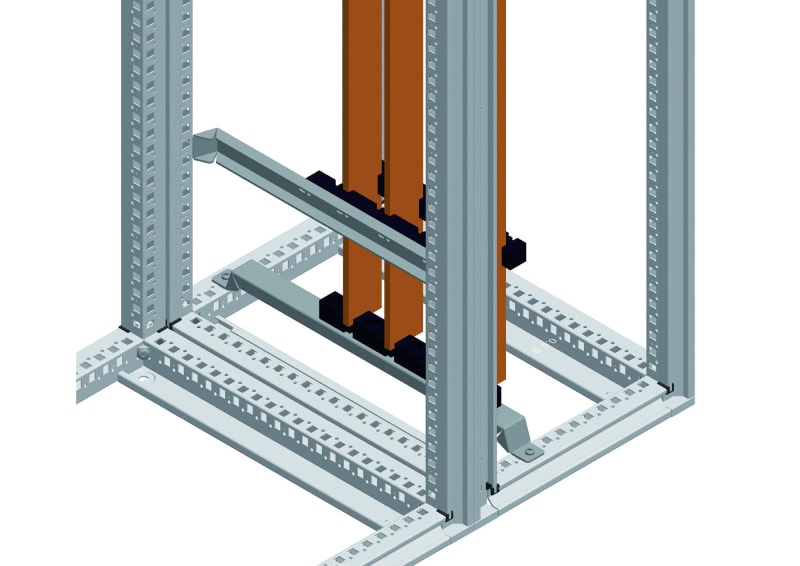

Schneider Electric Busbar, Linergy BS, drilled busbar, 1400A, vertical, flat bar, 60X10MM, L1675MM LVS04526
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04526 Perforated flat rail-LGY BS-for Vertical mounting in side or rear-60x10mm length1675mm- PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04526
- EAN / GTIN
- 3606481870452
- Sales unit
- pcs
- Dimensions
- 60x10 mm
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Busbar
- Product name
- Linergy BS
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Busbar description
- Flat bar
- Quantity per set
- Set of 1
- Installation direction
- Vertical, operating position: rear; Vertical, operating position: lateral
- installation description
- Cubicle - width 650 mm; Cubicle - width 650 + 150 mm
- [Ie] rated operational current
- 1400 A at 35 °C
- [Icw] rated short-time withstand current
- 25 kA (1 s) for 3 supports; 50 kA (1 s) for 5 supports; 65 kA (1 s) for 7 supports; 75 kA (1 s) for 9 supports
- Permissible current
- 1400 A at 35 °C: <= IP31; 1250 A at 35 °C: IP31
- Busbar cross section
- 60 x 10 mm
- Length
- 1675 mm
- Width
- 60 mm
- Depth
- 10 mm
- Product weight
- 8.24 kg
- Colour
- Natural
- Type of busbar connection
- Ø 10 mm drilled hole
- Connection pitch
- Connection each 25 mm
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 80
- Warranty (in months)
- 18
- Model
- Flat
- Height
- 10 mm
- Flexible
- No
- Surface protection
- Untreated
- Rated current In
- 1400 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 7407.29
Cross References
- EAN 3606481870452
- SAP 1200546966
- Code 82879294
Product Documentation
