Interlock Mechanical D09-D38
Pricing
Request a quote
We reply within 24 hours
Product Description

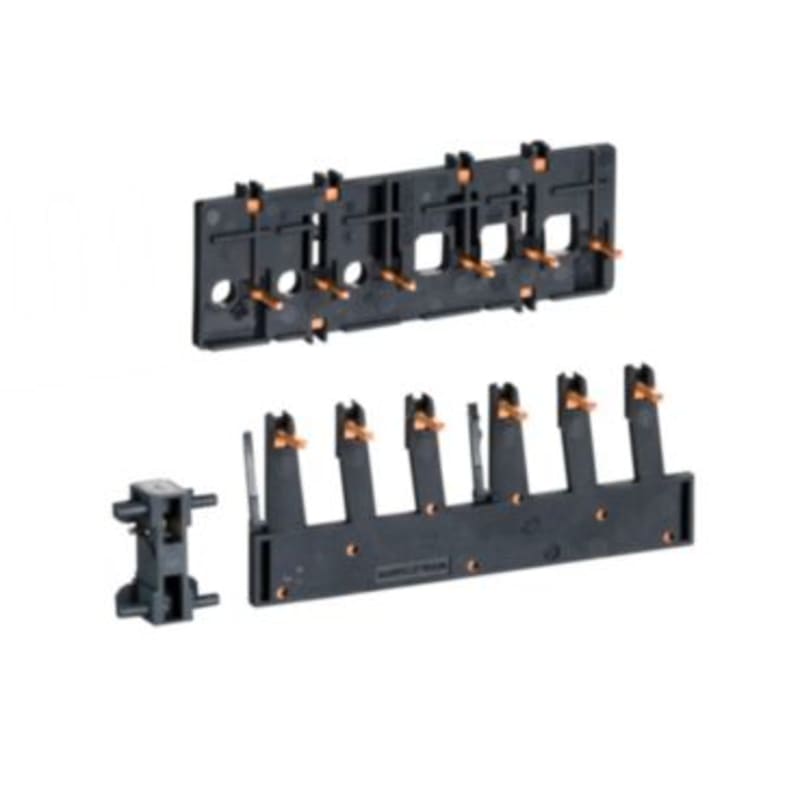

Schneider Electric LAD9R1 — Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock.
Technical Specifications
- Manufacturer part number (MPN)
- LAD9R1
- EAN / GTIN
- 3389110393972
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- TeSys Deca
- Range
- TeSys; Linergy
- Device short name
- LAD9
- Product or component type
- Kits for reversing contactor
- Poles description
- 3P
- Range compatibility
- TeSys TeSys D contactor; TeSys TeSys Deca
- Product compatibility
- LC1D09; LC1D12; LC1D18; LC1D25; LC1D32; LC1D38
- Kit composition
- Mechanical interlock; Set of power connection
- Product weight
- 0.045 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.500 cm
- Package 1 Width
- 5.500 cm
- Package 1 Length
- 11.000 cm
- Package 1 Weight
- 61.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 9.400 cm
- Package 2 Width
- 10.000 cm
- Package 2 Length
- 15.000 cm
- Package 2 Weight
- 651.000 g
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 140
- Package 3 Height
- 30.000 cm
- Package 3 Width
- 30.000 cm
- Package 3 Length
- 40.000 cm
- Package 3 Weight
- 9.469 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Type of accessory/spare part
- Mechanical locking
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389110393972
- SAP 1000086111
- Code 8578125
