Time delay FOR MN 220VAC
Pricing
Request a quote
We reply within 24 hours
Product Description

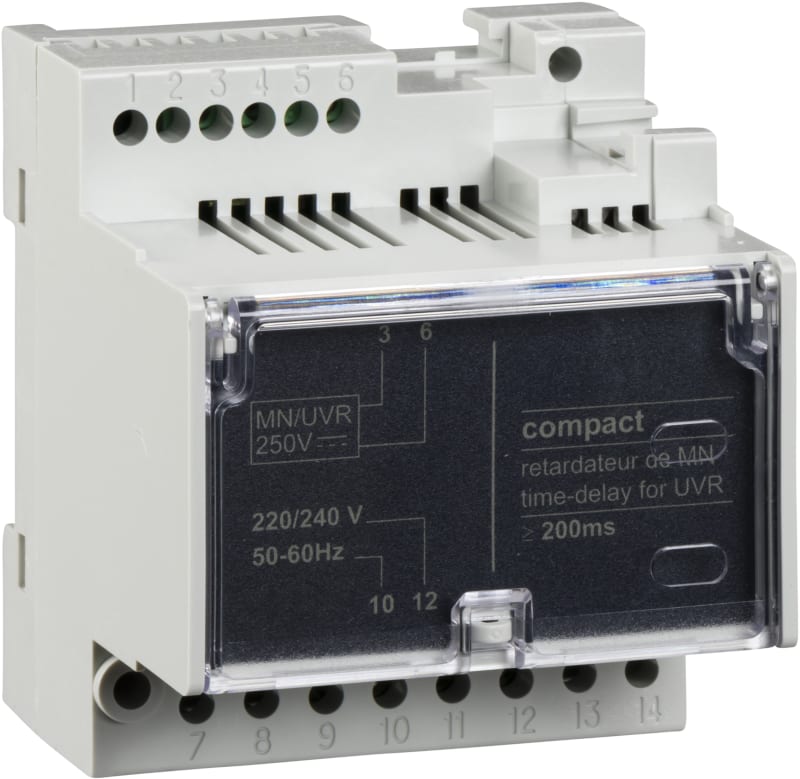

Schneider Electric LV429427 Time delay for MN 220VAC. In: 220-240VAC. Out: 250VDC.NB benytt MN 250VDC in switch.
Technical Specifications
- Manufacturer part number (MPN)
- LV429427
- EAN / GTIN
- 3606480019197
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Voltage
- 220 V AC
- Device short name
- MN delay unit
- Product or component type
- Time delay relay
- Device application
- Control
- Range compatibility
- ComPact ComPact NSX; PowerPact PowerPact Multistandard; ComPact ComPact NSX DC; EasyPact EasyPact CVS; ComPact ComPact NSXm
- Voltage release type
- Undervoltage release
- [Uc] control circuit voltage
- 220...240 V AC 50/60 Hz
- Impulse duration
- 200 ms
- Time delay range
- 200 ms
- Threshold tripping voltage
- 0.35...0.7 x Un opening; 0.85 x Un closing
- Supply holding power
- 4.5 VA
- Supply inrush power
- 200 VA
- mounting mode
- External mounting
- Response time
- <= 200 ms
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Country of origin
- FR
- Warranty (in months)
- 18
- Rated voltage
- 230 V
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 3606480019197
- SAP 1000092316
- Code 8906413
