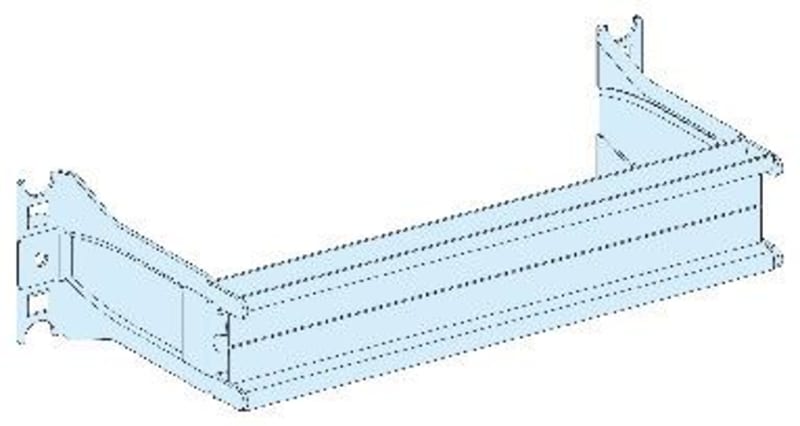

DIN rail PrismaSeT G B300MM

Schneider Electric LVS03010 — W300 MODULAR DEVICE RAIL PRISMA G.

Manufacturer part number (MPN)

LVS03010

EAN / GTIN

3606481875488

Sales unit

pcs

Package quantity

10 pcs

Range

PrismaSeT

Range of product

PrismaSeT G

Product or component type

Rail

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G duct

Type of rail

Modular

Installed device

Acti 9: fixed C120 without earth leakage protection - control: toggle; TeSys: fixed GV2LE; TeSys: fixed GV2ME; TeSys: fixed GV2RTn; Acti 9: fixed iC120 without earth leakage protection - control: toggle; ComPact: fixed INS100 - control: direct front rotary handle - vertical installation; ComPact: fixed INS160 - control: direct front rotary handle - vertical installation; ComPact: fixed INS40 - control: direct front rotary handle - vertical installation; ComPact: fixed INS63 - control: direct front rotary handle - vertical installation; Acti 9: fixed modular device; Multi9: fixed modular device; Multi9: fixed NG125 without earth leakage protection - control: toggle; Multi9: fixed NG125 NA - control: toggle; Acti 9: fixed C120 with earth leakage protection - control: toggle; Acti 9: fixed iC120 with earth leakage protection - control: toggle; Multi9: fixed NG125 with earth leakage protection - control: toggle; ComPact: fixed INS125 - control: direct front rotary handle - vertical installation; Acti 9: fixed modular device <= 40 A; Multi9: fixed modular device <= 40 A

Poles description

1 x 3P: fixed C120; 1 x 4P: fixed C120; 1 x 3P: fixed iC120; 1 x 4P: fixed iC120; 1 x 3P: fixed INS100 vertical installation; 1 x 4P: fixed INS100 vertical installation; 1 x 3P: fixed INS160 vertical installation; 1 x 4P: fixed INS160 vertical installation; 1 x 3P: fixed INS40 vertical installation; 1 x 4P: fixed INS40 vertical installation; 1 x 3P: fixed INS63 vertical installation; 1 x 4P: fixed INS63 vertical installation; 1 x 3P: fixed NG125; 1 x 4P: fixed NG125; 1 x 3P: fixed NG125 NA; 1 x 4P: fixed NG125 NA; 1 x 3P: fixed INS125 vertical installation; 1 x 4P: fixed INS125 vertical installation; 4 x 3P: fixed GV2LE; 4 x 3P: fixed GV2ME; 4 x 3P: fixed GV2RTn

installation description

Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm

Number of vertical modules [50 mm]

4 module(s): C120 without earth leakage protection , direct in 300 mm Widefloor-standing duct; 4 module(s): C120 without earth leakage protection , direct in 300 mm Widewall-mounted duct; 3 module(s): GV2LE, direct in 300 mm Widefloor-standing duct; 3 module(s): GV2LE, direct in 300 mm Widewall-mounted duct; 3 module(s): GV2ME, direct in 300 mm Widefloor-standing duct; 3 module(s): GV2ME, direct in 300 mm Widewall-mounted duct; 3 module(s): GV2RTn, direct in 300 mm Widefloor-standing duct; 3 module(s): GV2RTn, direct in 300 mm Widewall-mounted duct; 4 module(s): iC120 without earth leakage protection , direct in 300 mm Widefloor-standing duct; 4 module(s): iC120 without earth leakage protection , direct in 300 mm Widewall-mounted duct; 4 module(s): INS100, direct in 300 mm Widefloor-standing duct; 4 module(s): INS100, direct in 300 mm Widewall-mounted duct; 5 module(s): INS100, direct in 300 mm Widefloor-standing duct; 5 module(s): INS100, direct in 300 mm Widewall-mounted duct; 4 module(s): INS125, direct in 300 mm Widefloor-standing duct; 4 module(s): INS125, direct in 300 mm Widewall-mounted duct; 5 module(s): INS125, direct in 300 mm Widefloor-standing duct; 5 module(s): INS125, direct in 300 mm Widewall-mounted duct; 4 module(s): INS160, direct in 300 mm Widefloor-standing duct; 4 module(s): INS160, direct in 300 mm Widewall-mounted duct; 5 module(s): INS160, direct in 300 mm Widefloor-standing duct; 5 module(s): INS160, direct in 300 mm Widewall-mounted duct; 4 module(s): INS40, direct in 300 mm Widefloor-standing duct; 4 module(s): INS40, direct in 300 mm Widewall-mounted duct; 4 module(s): INS63, direct in 300 mm Widefloor-standing duct; 4 module(s): INS63, direct in 300 mm Widewall-mounted duct; 3 module(s): modular device <= 40 A, direct in 300 mm Widefloor-standing duct; 3 module(s): modular device <= 40 A, direct in 300 mm Widewall-mounted duct; 4 module(s): modular device, direct in 300 mm Widefloor-standing duct; 4 module(s): modular device, direct in 300 mm Widewall-mounted duct; 4 module(s): NG125 without earth leakage protection , direct in 300 mm Widefloor-standing duct; 4 module(s): NG125 without earth leakage protection , direct in 300 mm Widewall-mounted duct; 4 module(s): NG125 NA, direct in 300 mm Widefloor-standing duct; 4 module(s): NG125 NA, direct in 300 mm Widewall-mounted duct; 4 module(s): C120 with earth leakage protection , direct in 300 mm Widefloor-standing duct; 4 module(s): C120 with earth leakage protection , direct in 300 mm Widewall-mounted duct; 4 module(s): iC120 with earth leakage protection , direct in 300 mm Widefloor-standing duct; 4 module(s): iC120 with earth leakage protection , direct in 300 mm Widewall-mounted duct; 4 module(s): NG125 with earth leakage protection , direct in 300 mm Widefloor-standing duct; 4 module(s): NG125 with earth leakage protection , direct in 300 mm Widewall-mounted duct

9 mm pitches

20

Quantity per set

Set of 1

Height

52 mm

Width

218 mm

Depth

100 mm

Product weight

0.14 kg

Colour

Natural

Material

Metal

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.200 cm

Package 1 Width

10.500 cm

Package 1 Length

21.500 cm

Package 1 Weight

165.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

13.300 cm

Package 2 Width

21.700 cm

Package 2 Length

25.400 cm

Package 2 Weight

1.800 kg

Unit Type of Package 3

P12

Number of Units in Package 3

300

Package 3 Height

40.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

63.500 kg

Country of origin

FR

Warranty (in months)

18

• EAN 3606481875488
• SAP 1200546867
• Code 82880718
