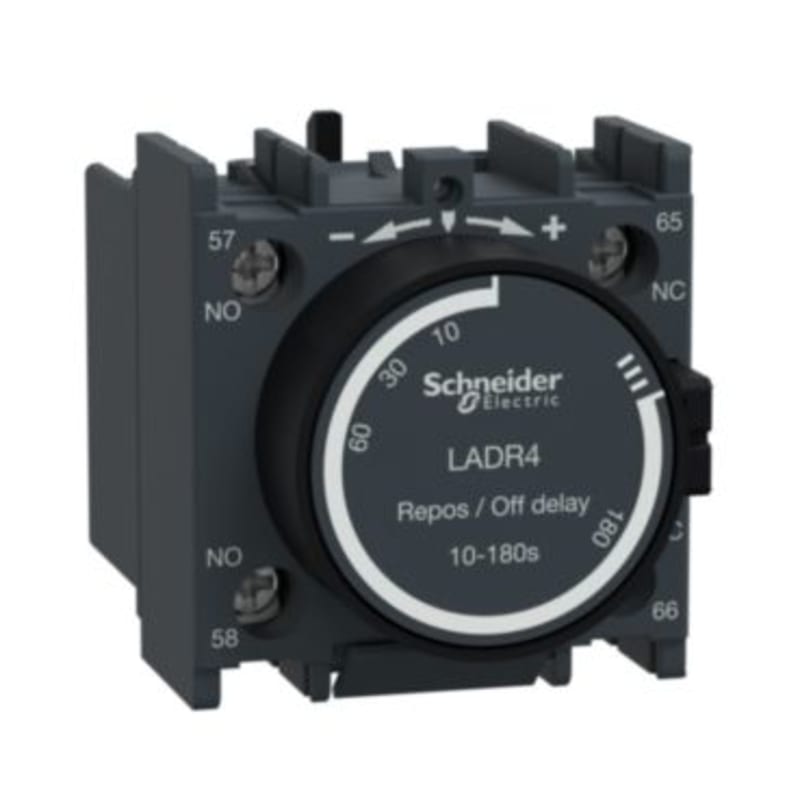

Schneider Electric LADR4 TeSys D - time delay auxiliary contact block - 1 NO + 1 NC screw clamp terminals

Schneider Electric LADR4 TeSys D - time delay auxiliary contact block - 1 NO + 1 NC screw clamp terminals is listed under Electrical Components / Contactor Accessories. HS code: 8536.50.

Manufacturer part number (MPN)

LADR4 EAN / GTIN: 3389110386233 Sales unit: pcs Package quantity: 10 pcs Range: TeSys; TeSys Deca Product name: TeSys Deca Product or component type: Time delay auxiliary contact block Range compatibility: TeSys Deca CAD; TeSys Deca LC1D; TeSys F LC1F; TeSys F CR1F Mounting location: Front Pole contact composition: 1 NO + 1 NC Contacts operation: Time delay Timer type: Off delay Time delay range: 10...180 s [Ue] rated operational voltage: 690 V AC 25...400 Hz [Ie] rated operational current: 6 A at 120 V AC-15; 1.04 A at 690 V AC-15; 0.55 A at 125 V DC-13; 0.1 A at 600 V DC-13 [Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1; 600 V conforming to UL 60947-5-1; 600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current: 10 A (at 60 °C) Standards: EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; GB/T 14048.5; EN 50012; IEC 60335-1:Clause 30.2; IEC 60335-2-40:Annex JJ; UL 60335-2-40:Annex JJ Product certifications: IECEE CB Scheme; UL; CSA; CCC; EAC; UKCA Irms rated making capacity: 140 A at <= 690 V AC conforming to IEC 60947-5-1; 250 A at <= 690 V DC conforming to IEC 60947-5-1 Permissible short-time rating: 100 A 60 °C 1 s; 120 A 60 °C 500 ms; 140 A 60 °C 100 ms Protection type: GG fuse 10 A Mechanical durability: 5 Mcycles minimum switching current: 5 mA minimum switching voltage: 17 V Non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact; 1.5 ms on energisation no overlap between NC and NO contact Insulation resistance: > 10 MOhm Connections - terminals: Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable end; Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 1…2.5 mm²rigid; Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 1…2.5 mm²rigid; Screw clamp terminals Tightening torque: 1.7 N.m - with screwdriver flat Ø 6 mm; 1.7 N.m - with screwdriver Philips No 2; 1.7 N.m - with screwdriver pozidriv No 2 Height: 48 mm Width: 44 mm Depth: 61 mm Colour: Dark grey Environmental characteristic: Normal environment IP degree of protection: IP20 conforming to IEC 60529 Protective treatment: TH conforming to IEC 60068 Ambient air temperature for storage: -60…80 °C Ambient air temperature for operation: -40…70 °C Operating altitude: 3000 m Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 5.200 cm Package 1 Width: 6.500 cm Package 1 Length: 5.000 cm Package 1 Weight: 75.600 g Unit Type of Package 2: BB1 Number of Units in Package 2: 10 Package 2 Height: 5.200 cm Package 2 Width: 12.800 cm Package 2 Length: 24.000 cm Package 2 Weight: 756.000 g Unit Type of Package 3: S03 Number of Units in Package 3: 140 Package 3 Height: 30.000 cm Package 3 Width: 30.000 cm Package 3 Length: 40.000 cm Package 3 Weight: 11.129 kg Country of origin: FR Warranty (in months): 18 Switching function: Time-delay dropped out Setting time: 10–180 s Number of contacts as normally open contact: 1 Number of contacts as normally closed contact: 1 Operating principle: Electronic

HS Code

8536.50

• EAN 3389110386233
• SAP 1000049247
