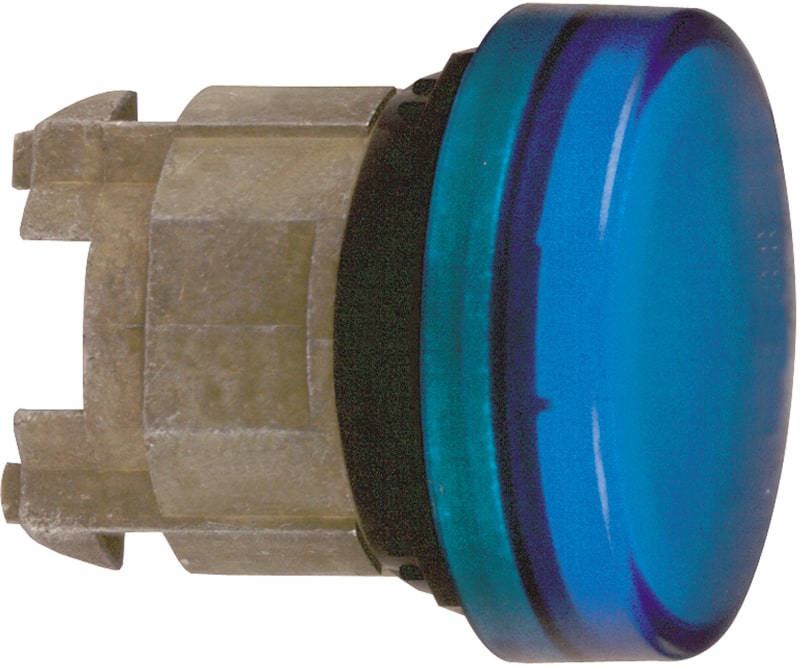

Pilot Light Head BLUE LED (ZB4BV063)

Schneider Electric ZB4BV063 Indicator lamp Blue LED.

Manufacturer part number (MPN)

ZB4BV063

EAN / GTIN

3389110895018

HS code

8539.52

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for pilot light

Product compatibility

Universal LED

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Round

Cap/operator or lens colour

Blue

Operator additional information

With plain lens

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

30 mm

Product weight

0.026 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Electrical composition code

P1 in front mounting with integral LED; P2 in front mounting with integral LED and transformer

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

JIS C8201-5-1; UL 508; IEC 60947-1; CSA C22.2 No 14; IEC 60947-5-4; IEC 60947-5-1; IEC 60947-5-5; JIS C8201-1

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

300

Number of Units in Package 3

2400

Country of origin

FR

Warranty (in months)

18

HS Code

8539.52

• EAN 3389110895018
• SAP 1000071100
• Code 8729726
