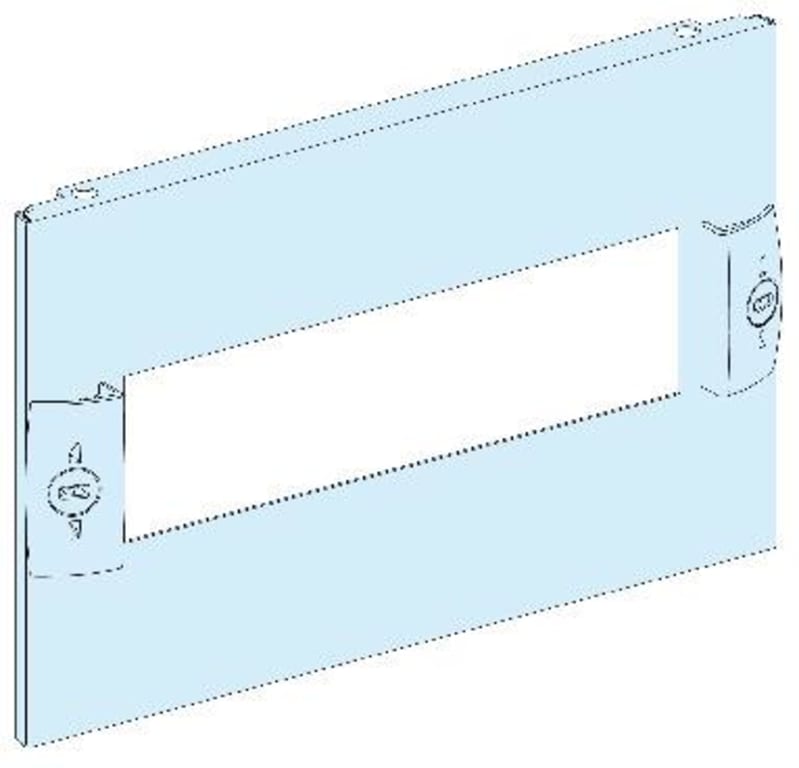

Schneider Electric LVS03213 MODULAR FRONT PLATE W300 3M
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric LVS03213 MODULAR FRONT PLATE W300 3M is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Package quantity: 10 pcs; Range: PrismaSeT; Range of product: PrismaSeT G; PrismaSeT P; Product or component type: Front plate; Type of front plate: Modular; Cut-out.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03213
- EAN / GTIN
- 3606481872722
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G duct; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Modular; Cut-out
- Installed device
- TeSys: fixed GV2L; TeSys: fixed GV2LE; TeSys: fixed GV2ME; TeSys: fixed GV2P; TeSys: fixed GV2RTn; Acti 9: fixed modular device <= 40 A; Multi9: fixed modular device <= 40 A; TeSys: fixed GV3
- Poles description
- 4 x 3P: modular rail support: GV2L; 4 x 3P: modular rail support: GV2LE; 4 x 3P: modular rail support: GV2ME; 4 x 3P: modular rail support: GV2P; 4 x 3P: modular rail support: GV2RTn; 3 x 3P: modular rail support: GV3
- Enclosure/cubicle description
- Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm; Cubicle duct - width 400 mm depth 400 mm
- Connection position
- Direct connection
- 9 mm pitches
- 20
- Number of 18 mm modules per row
- 10
- Number of vertical modules [50 mm]
- 3
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 300 mm
- Height
- 150 mm
- Product weight
- 0.32 kg
- Quantity per set
- Set of 1
- functional unit
- 300 mm PrismaSeT G floor-standing duct TeSys GV2L fixed 3P 4 direct 3; 300 mm PrismaSeT G wall-mounted duct TeSys GV2L fixed 3P 4 direct 3; 300 mm PrismaSeT G floor-standing duct TeSys GV2LE fixed 3P 4 direct 3; 300 mm PrismaSeT G wall-mounted duct TeSys GV2LE fixed 3P 4 direct 3; 300 mm PrismaSeT G floor-standing duct TeSys GV2ME fixed 3P 4 direct 3; 300 mm PrismaSeT G wall-mounted duct TeSys GV2ME fixed 3P 4 direct 3; 300 mm PrismaSeT G floor-standing duct TeSys GV2P fixed 3P 4 direct 3; 300 mm PrismaSeT G wall-mounted duct TeSys GV2P fixed 3P 4 direct 3; 300 mm PrismaSeT G floor-standing duct TeSys GV2RTn fixed 3P 4 direct 3; 300 mm PrismaSeT G wall-mounted duct TeSys GV2RTn fixed 3P 4 direct 3; 300 mm PrismaSeT G floor-standing duct TeSys GV3 fixed 3P 3 direct 5; 300 mm PrismaSeT G wall-mounted duct TeSys GV3 fixed 3P 3 direct 5; 300 mm PrismaSeT G floor-standing duct Acti 9 modular device <= 40 A fixed 20 direct 3; 300 mm PrismaSeT G wall-mounted duct Acti 9 modular device <= 40 A fixed 20 direct 3; 400 mm 400 mm PrismaSeT P cubicle Acti 9 modular device <= 40 A fixed 20 direct 3; 300 mm PrismaSeT G floor-standing duct Multi9 modular device <= 40 A fixed 20 direct 3; 300 mm PrismaSeT G wall-mounted duct Multi9 modular device <= 40 A fixed 20 direct 3; 400 mm 400 mm PrismaSeT P cubicle Multi9 modular device <= 40 A fixed 20 direct 3
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 15.700 cm
- Package 1 Length
- 26.200 cm
- Package 1 Weight
- 330.000 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 32
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 11.590 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 384
- Package 3 Height
- 102.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 149.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 300 mm
- Number of height units
- 3
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481872722
- SAP 1200546617
- Code 82879988
