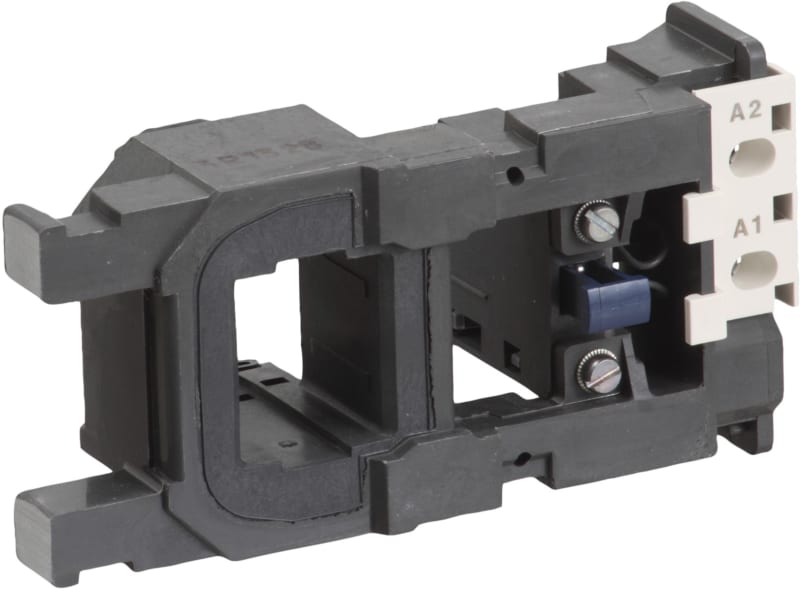

Schneider Electric TeSys F - specific contactor coil - 380...400V AC 40...400 Hz low consumption LX9FF380

Schneider Electric LX9FF380 coil LC1F115/F150 400VAC.

Manufacturer part number (MPN)

LX9FF380

EAN / GTIN

3389110248425

Sales unit

pcs

Package quantity

18 pcs

Voltage

380 V

Frequency

50/60 Hz

Range

TeSys

Product or component type

Specific contactor coil

Device short name

LX9FF

Range compatibility

TeSys TeSys F LC1F contactor

Product compatibility

LC1F150; LC1F115

Control circuit type

AC at 40...400 Hz low consumption

[Uc] control circuit voltage

380...400 V AC 40...400 Hz

Inductance of closed circuit

23 H

Average resistance

173 Ohm inrush at 20 °C; 6540 Ohm holding at 20 °C

Operating time

130 ms opening; 35 ms closing

Mechanical durability

10 Mcycles

Maximum operating rate

2400 cyc/h 55 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Operational: 0.85...1.1 Uc (at 55 °C); Drop-out: 0.2...0.55 Uc (at 55 °C)

Inrush power in VA

690…855 VA 40...400 Hz (at 20 °C)

Hold-in power consumption in VA

6.6…8.1 VA 40...400 Hz (at 20 °C)

Heat dissipation

5.9…7.2 W

Ambient air temperature for operation

-5…55 °C

Product weight

0.43 kg

Warranty (in months)

18

Rated control supply voltage AC 50 Hz

380–400 V

Rated control supply voltage AC 60 Hz

380–400 V

Voltage type for actuating

AC

Country of origin

Czechia

HS Code

8505.90
