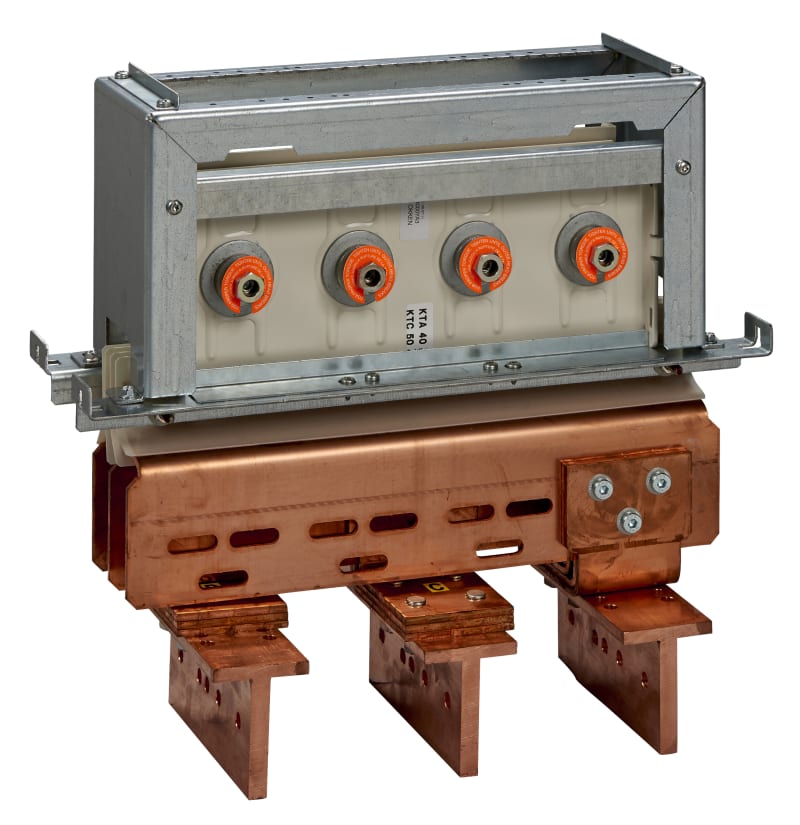

Schneider Electric CANALIS Connection 4000A MTZ2/NW 3P Prisma P LVS04737
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04737 Canalis Connection-MTZ2 3P-4000A-baksidetilkobling-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04737
- EAN / GTIN
- 3606481872401
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Interface and connection Canalis
- product name
- PrismaSeT PrismaSeT P enclosure; Canalis Canalis KT busbar trunking; Masterpact MasterPact NW circuit breaker
- Accessory / separate part category
- Interface accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- KT with Canalis
- Poles description
- 4P
- Location of connection
- Upstream
- installation description
- Cubicle 4000A - width 650 mm
- Cubicle depth
- 600 + 400 mm: rear
- Installed device
- Masterpact: NW40 vertical installation - rear connection
- [Ie] rated operational current
- 4000 A
- Height
- 350 mm
- Width
- 575 mm
- Depth
- 450 mm
- Quantity per set
- Set of 1
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 44.000 cm
- Package 1 Width
- 40.500 cm
- Package 1 Length
- 60.500 cm
- Package 1 Weight
- 66.000 kg
- Warranty (in months)
- 18
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481872401
- SAP 1200547477
- Code 82879382
Product Documentation
More from Schneider Electric
Schneider Electric
RAIL 400A 5M 20 Outlet
KSA400ED45020
Schneider Electric
Schneider Electric FFS06724651 EDC-50A1S Conventional Heat Detector 55 °C
Schneider Electric
Square Adapter (ZB5AZ31)
Schneider Electric
Schneider Electric variable speed drive, Altivar Machine ATV340, 4kW, heavy duty, 400V, 3 phases ATV340U40N4
Schneider Electric
Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(90kW)/400...440V(160kW)/500V(220kW) ATS22C32S6
Schneider Electric
Gland Plate 3-piece 6X6
NSYEC662
Schneider Electric

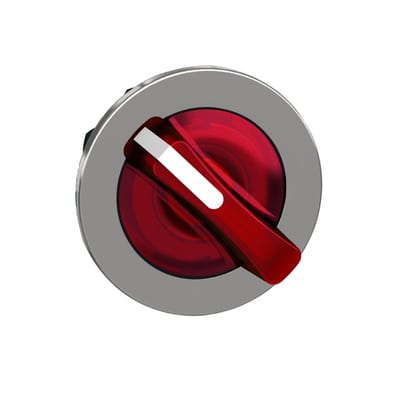

Selector switch flush for LED 2 pos red (ZB4FK1443)
Schneider Electric

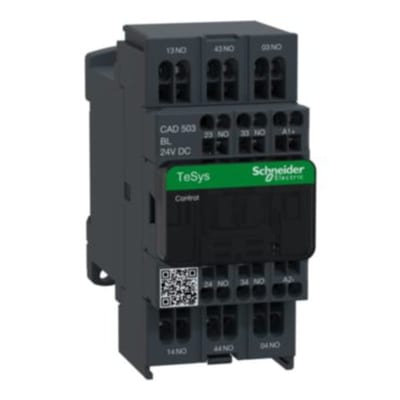

Schneider Electric TeSys D control relay - 5 NO - <= 690 V - 24 V DC low consumption coil CAD503BL
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LVS04737?
- LVS04737 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LVS04737.
- What is the HS code for LVS04737?
- The customs tariff (HS) code for LVS04737 is 8536.90.
- Who manufactures LVS04737?
- LVS04737 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for LVS04737?
- Yes — the LVS04737 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LVS04737?
- The minimum order quantity is 1.
- Is LVS04737 available?
- Yes — LVS04737 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
