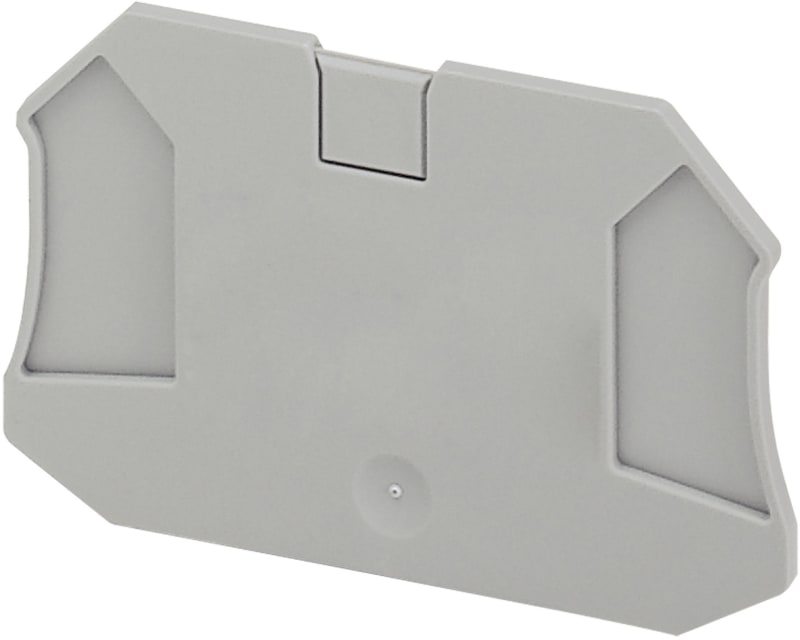

Schneider Electric Linergy TR End Plate for NSYTRV44 Terminal Block, Grey

Schneider Electric NSYTRAC24 is a 2.2 mm grey cover-plate insulation accessory for the Linergy TR NSYTRV44 screw terminal block, sized for a 65.4 mm block with four connections and 4 mm² conductor cross section. It fixes by snap-in, functions as an end plate rather than a partition, and is sold as a set of 50. Country of origin is Germany; warranty is 18 months.

Manufacturer part number (MPN)

NSYTRAC24

EAN / GTIN

3606480533440

Sales unit

pcs

Package quantity

50 pcs

Range

Linergy

Product name

Linergy TR

Product or component type

Cover plate

Device short name

TRA

Accessory / separate part category

Insulation accessory

Product compatibility

TRV screw terminal terminal block, length = 65.4 mm

thickness

2.2 mm

Cable cross section

4 mm²

number of connections

4

Number of measurement input

2

Quantity per set

Set of 50

Product weight

3.5 g

Colour

Grey

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

3400

Country of origin

DE

Warranty (in months)

18

Snap in

Yes

End plate model

Yes

Partition model

No

HS Code

8547.20

• EAN 3606480533440
• SAP 1000402105
• Code 81113252
