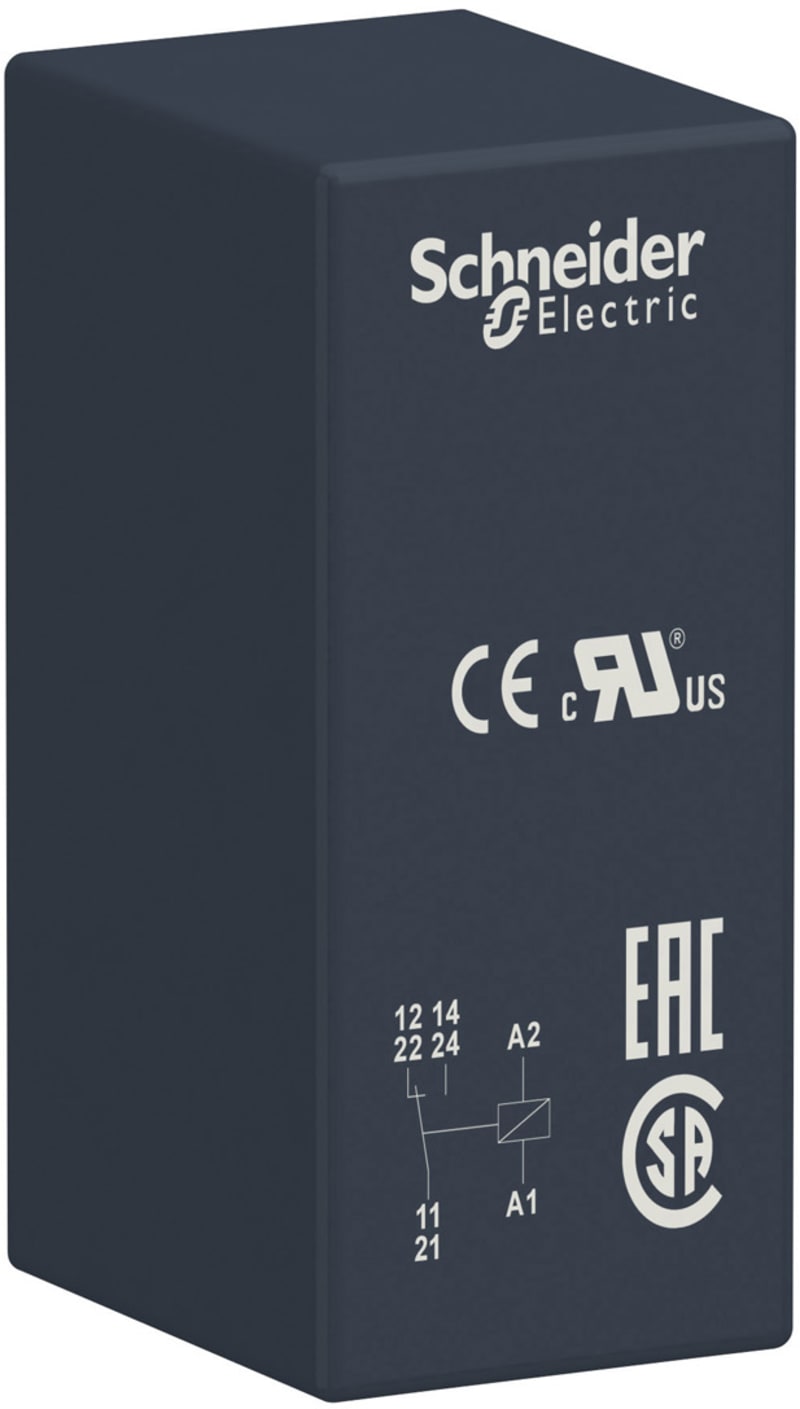

Schneider Electric Interface plug-in relay, 16 A, 1 CO, 24 V DC RSB1A160BD

Schneider Electric RSB1A160BD InterfACerelé 1Co 16A 24VDC.

Manufacturer part number (MPN)

RSB1A160BD EAN / GTIN: 3389110254464 Sales unit: pcs Package quantity: 10 pcs Voltage: 24 V DC Rated current: 16 A Range of product: Harmony Electromechanical Relays Series name: RSB series Product or component type: Plug-in relay Relay type: Interface relay Contacts type and composition: 1 C/O status LED: Without [Uc] control circuit voltage: 24 V DC Control type: Without lockable test button [Ithe] conventional enclosed thermal current: 16 A at -40…40 °C Average resistance: 1440 Ohm network: AC at 20 °C +/- 10 % [Ue] rated operational voltage: 16.8...36 V DC [Uimp] rated impulse withstand voltage: 3.6 kV conforming to IEC 61000-4-5 [Ie] rated operational current: 16 A (AC-1/DC-1) NO conforming to IEC; 8 A (AC-1/DC-1) NC conforming to IEC [Ui] rated insulation voltage: 400 V conforming to IEC 60947 Maximum switching voltage: 300 V DC conforming to IEC Drop-out voltage threshold: >= 0.1 Uc DC Load current: 16 A at 250 V AC; 16 A at 28 V DC minimum switching current: 10 mA Maximum switching capacity: 4000 VA/448 W minimum switching voltage: 12 V minimum switching capacity: 120 mW at 10 mA, 12 V Operating time: 20 ms operating; 20 ms reset Mechanical durability: 30000000 cycles Electrical durability: 100000 cycles, 16 A at 250 V, AC-1 NO; 100000 cycles, 8 A at 250 V, AC-1 NC Safety reliability data: B10d = 100000 Operating rate: <= 600 cycles/hour under load; <= 18000 cycles/hour no-load Average coil consumption: 0.45 W DC Removable legend: Without Protection category: RT I Operating position: Any position Test levels: Level A group mounting Device presentation: Complete product Sale per indivisible quantity: 10 Contacts material: Silver alloy (AgNi) Shape of pin: Flat (PCB type) Product weight: 0.014 kg Compatibility code: RSB Dielectric strength: 1000 V AC between contacts; 2500 V AC between poles; 5000 V AC between coil and contact Vibration resistance: +/- 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6 IP degree of protection: IP40 conforming to IEC 60529 Ambient air temperature for operation: -40…85 °C (DC) Standards: UL 508; CSA C22.2 No 14; IEC 61810-1 Product certifications: EAC; CSA; UL Marking: CE Ambient air temperature for storage: -40…85 °C Shock resistance: 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27; 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 Country of origin: AT Warranty (in months): 18 Relay technology category according to IEC 61810-7: RT I Type of electric connection: Plug-in connection With detachable clamps: Yes Nominal current: 16 A Rated control supply voltage DC: 24 V Voltage type for actuating: DC Drive, polarization: Polarity free Drive, switching attitude: Mono stable Number of contacts as change-over contact: 1 With forced-guided contacts: No Type of switch contact: Single contact Complete with socket: No With LED indication: No Degree of protection (IP): IP40 Width: 12.5 mm Height: 29 mm Depth: 19.6 mm

HS Code

8536.49

• EAN 3389110254464
• SAP 1000074694
