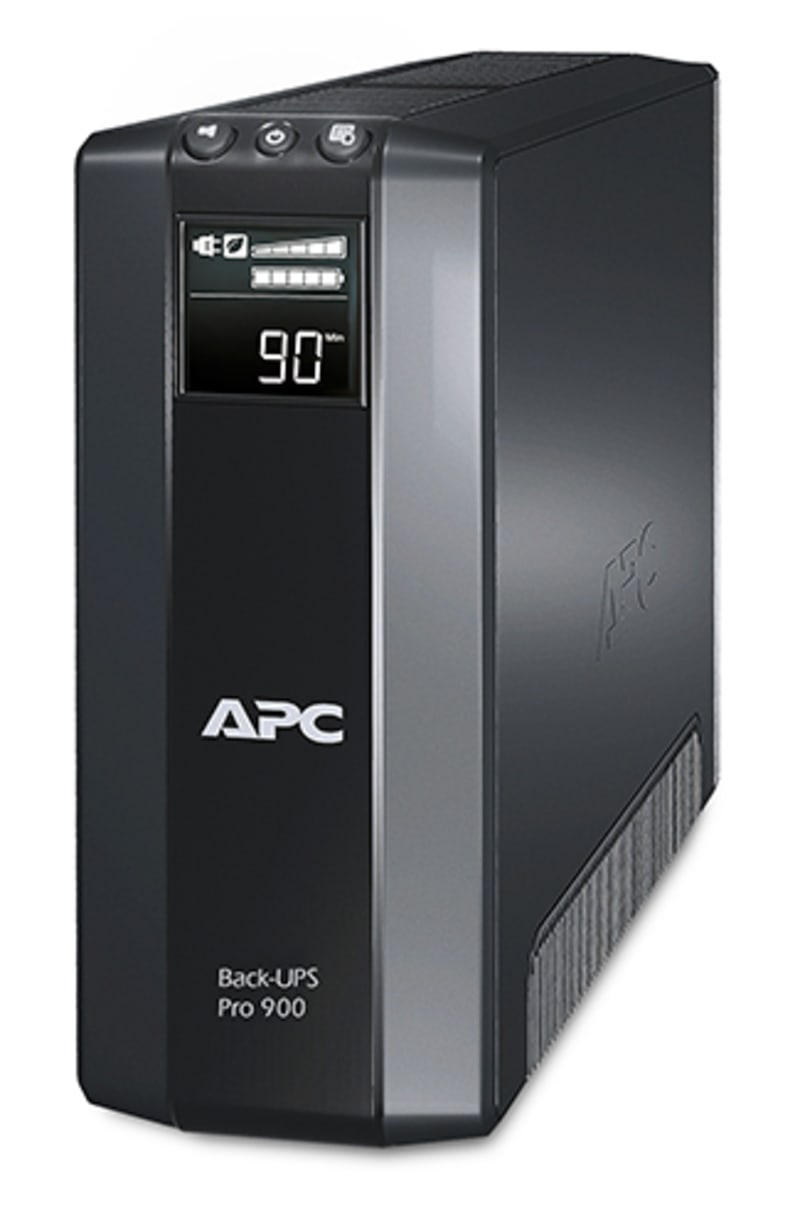

Schneider Electric APC Back-UPS Pro, 900VA/540W, Tower, 230V, 5X CEE 7/7 Schuko outlets, AVR, LCD, User Replaceable Battery BR900G-GR

Schneider Electric BR900G-GR Power-Saving Back-UPS Pro 900, 230V, Sch.

Manufacturer part number (MPN)

BR900G-GR

EAN / GTIN

0731304286912

Sales unit

pcs

Voltage

230 V

Main input voltage

230 V AC 1 phase

Efficiency at full load

156...300 V adjustable; 176...294 V

Input frequency

50/60 Hz +/- 3 Hz auto-sensing

Output voltage

230 V AC 1 phase

Rated power in W

540 W

Rated power in VA

900 VA

Output connection

3 CEE 7/3; 2 CEE 7/3 surge

Type of USB power supply

None

Maximum configurable power in VA

900 VA

Maximum configurable power in W

540 W

Transfer time

8 ms typical : 10 ms maximum

UPS topology

Line interactive

Output frequency

50/60 Hz +/- 1 Hz sync to mains; 50/60 Hz +/- 1 Hz unsynchronised

Replacement battery

APCRBC123

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery capacity

7.0 Ah

Battery type

Lead-acid internal included

Control panel

Multifunction LCD status and control console

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivity

USB port

Data line protection

RJ11 modem/fax/DSL protection (two wire single line)

Surge energy rating

613 J

Noise filtering

Full time multi-pole noise filtering : 10% of IEEE surge light-through : zero clamping response time: instantaneous

Cable length

1.5 m

Height

250 mm

Width

100 mm

Depth

382 mm

Product weight

10.73 kg

Mounting preference

No preference

Mounting mode

Not rack-mountable

Two post mountable

0

USB compatible

Yes

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Range of product

Back-UPS Pro

Product or component type

Uninterruptible power supply (UPS)

Product certification

BSI 1363; CE; GOST; NEMKO

Equipment protection policy

Lifetime : 200000 AUD; Lifetime : 150000 euros; Lifetime : 75000 GBP

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15240 m

Relative humidity

0…95 %

Storage relative humidity

0…95 %

Acoustic level

45 dBA

Operating altitude

0...10000 ft

Battery voltage

24 V

Battery graph comment

This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v

Extendable runtime

0

Included battery module

0

Empty battery slot

0

Typical recharge time

8 h

RBC quantity

1

Battery life

3…5 year(s)

Battery charging power

20 W rated

Number of Units in Package 1

1

Number of Units in Package 2

10

SCC14

10731304286919

Warranty (in months)

24

Country of origin

Sweden

HS Code

8504.40

• EAN 0731304286912
• SAP 1200723259
• Code 83845716
