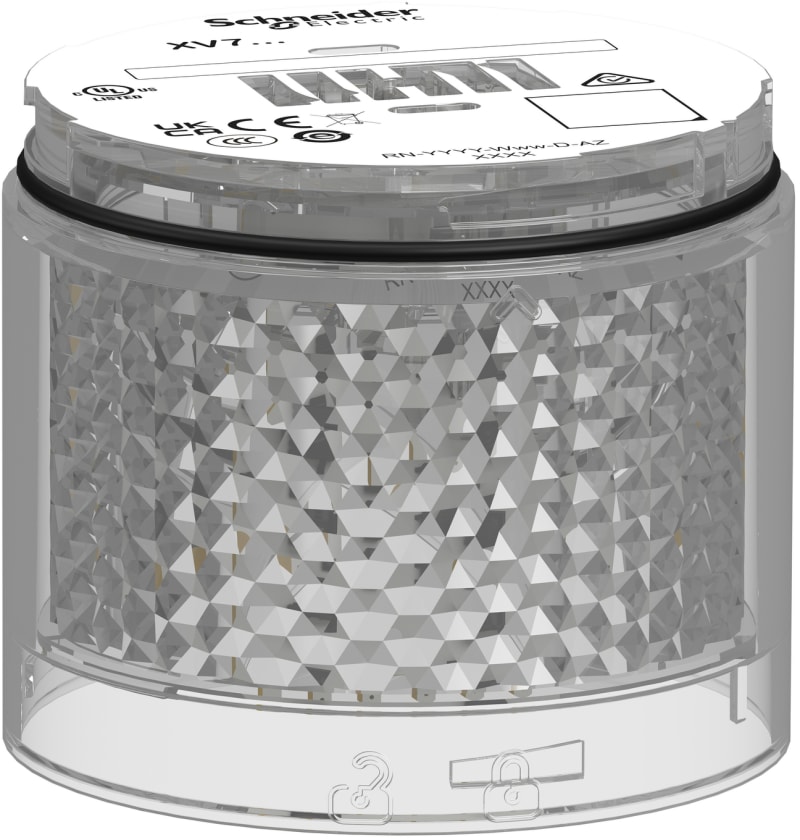

Light Unit with Multi-function LED

Schneider Electric XVB7CM9 Light Unit for XVB7 lyskolonne in Ø70 mm, multifunction with 8 colours.

Manufacturer part number (MPN)

XVB7CM9 EAN / GTIN: 3606487129349 Sales unit: pcs Package quantity: 60 pcs Range of product: Harmony XVB7 Product or component type: Light module Device composition: Standard lens Device short name: XVB7 Mounting diameter: 70 mm Signalling type: Multi function Light color: LED, multi-colour material: PC (polycarbonate) Product weight: 0.107 kg Mounting position: Upright/inverted Control type: DIP switch for color/light pattern Service life in hours: 50000 h [Ue] rated operational voltage: 24 V AC/DC Rated operational voltage limits: 21.6...26.4 V AC/DC Current consumption: 50 mA at 24 V AC; 55 mA at 24 V DC Inrush current: 0.5 A Electrical shock protection class: Class II [Ui] rated insulation voltage: 50 V [Uimp] rated impulse withstand voltage: 0.5 kV Pollution degree: 2 Ambient air temperature for operation: -25…60 °C Ambient air temperature for storage: -40…70 °C IP degree of protection: IP66 Environmental Type ratings: UL type 4X/13 Vibration resistance: 6 gn, amplitude = +/- 0.5 mm (f = 10…500 Hz)in operation Shock resistance: 30 gn (duration = 6 ms) for in operation Standards: UL 60947-5-1; IEC 60947-5-1; CSA C22.2 No 60947-5-1 Product certifications: cULus; CCC; RCM; UKCA; CE Number of Units in Package 1: 1 Number of Units in Package 2: 60 Country of origin: DE Warranty (in months): 18 Outer diameter: 70 mm Function: Continuous-/flashing light Housing colour: White Voltage type: AC/DC Lamp type: LED Degree of protection (IP): IP66 Operating voltage AC 50 Hz: 21.6–26.4 V Operating voltage AC 60 Hz: 21.6–26.4 V Operating voltage DC: 21.6–26.4 V Repetition frequency settable: Yes

HS Code

8531.80

• EAN 3606487129349
• SAP 1200850119
• Code 84054496
